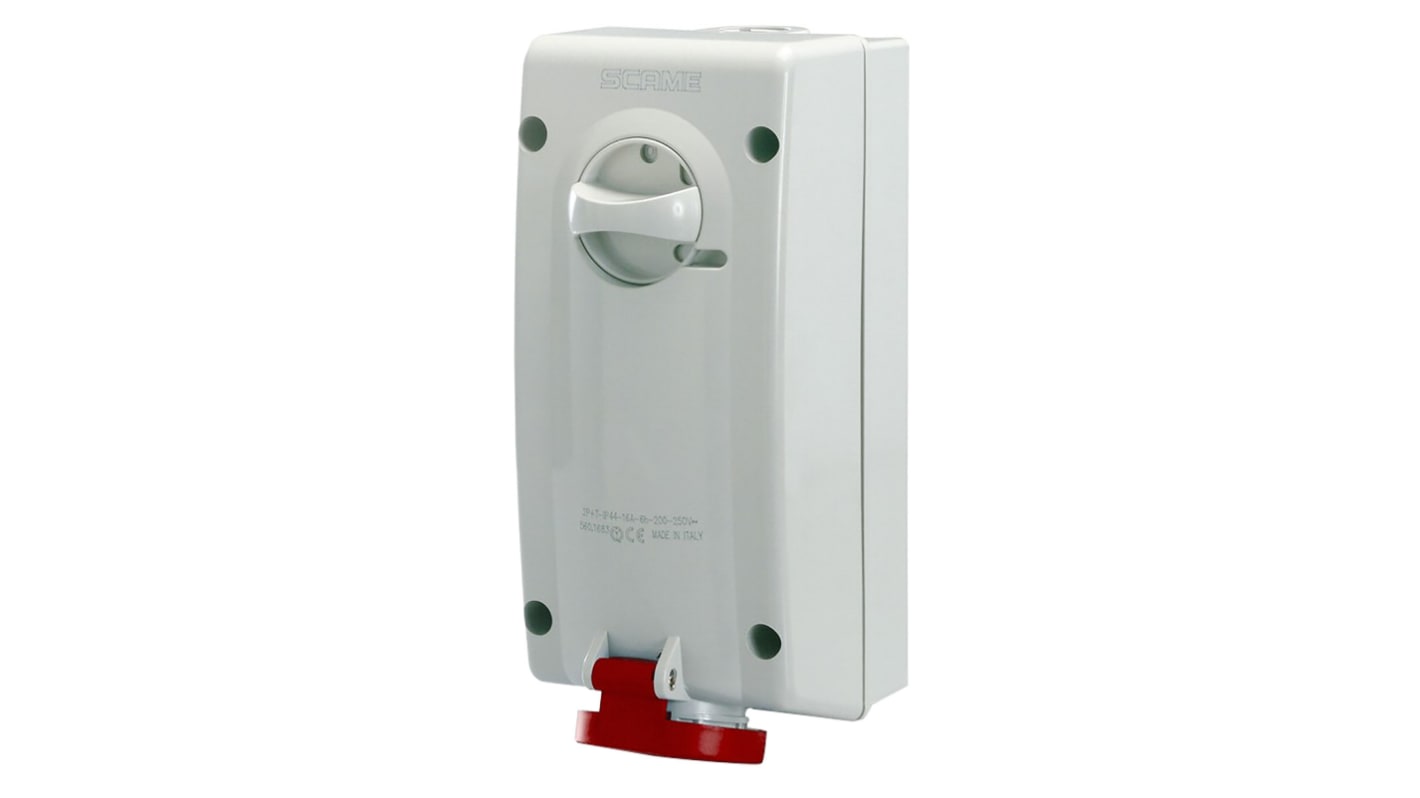

Scame Straight Switchable IP44 Industrial Interlock Socket 3+N+E, Earthing Position 6h, 32A, 415 V
- RS Stock No.:
- 125-4375
- Mfr. Part No.:
- 560.3287
- Brand:
- Scame
Subtotal (1 unit)*
£189.71
(exc. VAT)
£227.65
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £189.71 |
*price indicative
- RS Stock No.:
- 125-4375
- Mfr. Part No.:
- 560.3287
- Brand:
- Scame
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Scame | |
| Plug/Socket | Socket | |
| Product Type | Industrial Interlock | |
| Pole Format | 3+N+E | |
| Switchable | Yes | |
| Current | 32A | |
| Colour | Red | |
| IP Rating | IP44 | |
| Voltage | 415 V | |
| Series | 560 | |
| Orientation | Straight | |
| Earthing Position | 6h | |
| Body Material | Plastic | |
| Depth | 266mm | |
| Width | 135 mm | |
| Standards/Approvals | No | |
| Length | 106mm | |
| Select all | ||
|---|---|---|
Brand Scame | ||
Plug/Socket Socket | ||
Product Type Industrial Interlock | ||
Pole Format 3+N+E | ||
Switchable Yes | ||
Current 32A | ||
Colour Red | ||
IP Rating IP44 | ||
Voltage 415 V | ||
Series 560 | ||
Orientation Straight | ||
Earthing Position 6h | ||
Body Material Plastic | ||
Depth 266mm | ||
Width 135 mm | ||
Standards/Approvals No | ||
Length 106mm | ||
- COO (Country of Origin):
- IT
Vertical style with switch
Scame surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
