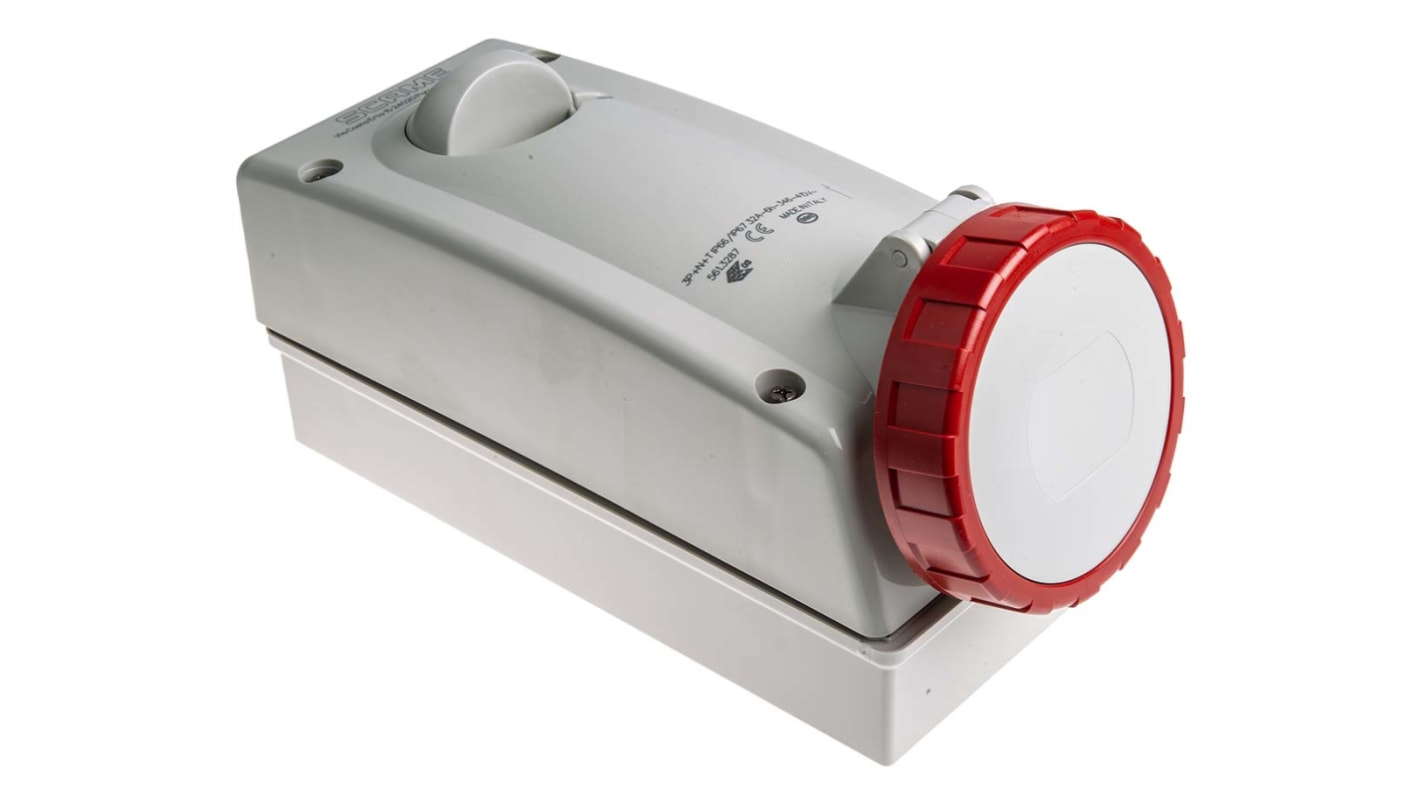

Scame Switchable IP67 Industrial Interlock Socket 3PN+E, Earthing Position 6h, 32A, 415 V
- RS Stock No.:
- 410-072
- Mfr. Part No.:
- 561.3287
- Brand:
- Scame
Subtotal (1 unit)*
£154.90
(exc. VAT)
£185.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £154.90 |
*price indicative
- RS Stock No.:
- 410-072
- Mfr. Part No.:
- 561.3287
- Brand:
- Scame
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Scame | |
| Plug/Socket | Socket | |
| Pole Format | 3PN+E | |
| Switchable | Yes | |
| Colour | Red | |
| IP Rating | IP67 | |
| Voltage Rating | 415 V | |
| Current Rating | 32A | |
| Body Orientation | Straight | |
| Dimensions | 385 x 106 x 167mm | |
| Earthing Position | 6h | |
| Body Material | Polymer | |
| Depth | 167mm | |
| Length | 385mm | |
| Width | 106mm | |
Select all | ||
|---|---|---|
Brand Scame | ||
Plug/Socket Socket | ||
Pole Format 3PN+E | ||
Switchable Yes | ||
Colour Red | ||
IP Rating IP67 | ||
Voltage Rating 415 V | ||
Current Rating 32A | ||
Body Orientation Straight | ||
Dimensions 385 x 106 x 167mm | ||
Earthing Position 6h | ||
Body Material Polymer | ||
Depth 167mm | ||
Length 385mm | ||
Width 106mm | ||
- COO (Country of Origin):
- IT
Vertical style with switch
Scame surface mounted interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
