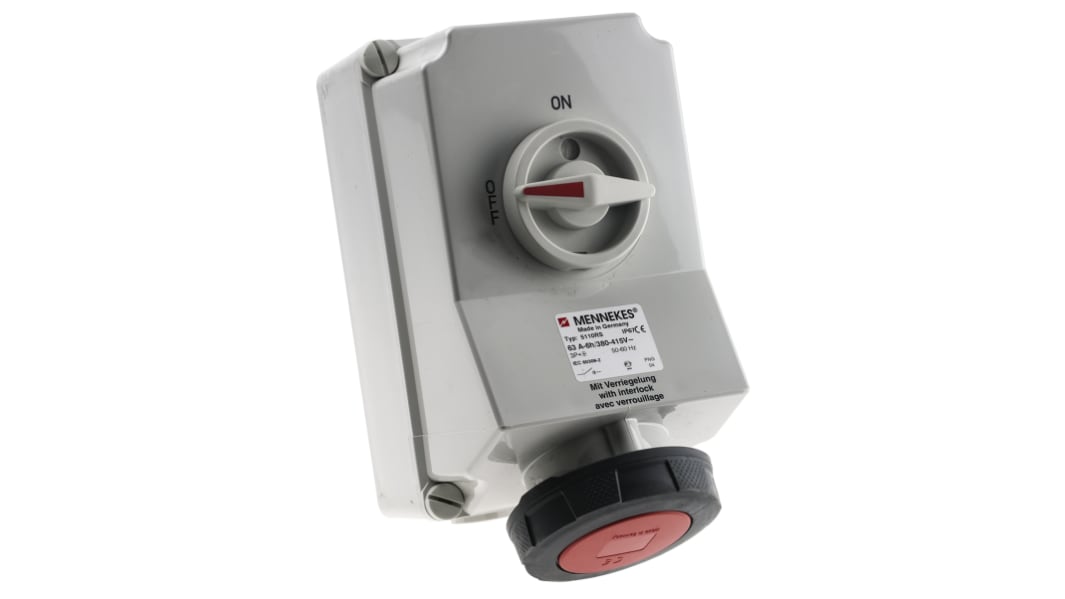

MENNEKES Switchable IP67 Industrial Interlock Socket 3P+E, Earthing Position 6h, 63A, 400 V
- RS Stock No.:
- 465-558
- Mfr. Part No.:
- 5110A
- Brand:
- MENNEKES
Subtotal (1 unit)*
£590.59
(exc. VAT)
£708.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 3 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £590.59 |
*price indicative
- RS Stock No.:
- 465-558
- Mfr. Part No.:
- 5110A
- Brand:
- MENNEKES
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MENNEKES | |
| Plug/Socket | Socket | |
| Pole Format | 3P+E | |
| Switchable | Yes | |
| Colour | Red | |
| IP Rating | IP67 | |
| Voltage Rating | 400 V | |
| Current Rating | 63A | |
| Body Orientation | Straight | |
| Dimensions | 300 x 163 x 196mm | |
| Earthing Position | 6h | |
| Body Material | Thermoplastic | |
| Depth | 196mm | |
| Length | 300mm | |
| Width | 163mm | |
Select all | ||
|---|---|---|
Brand MENNEKES | ||
Plug/Socket Socket | ||
Pole Format 3P+E | ||
Switchable Yes | ||
Colour Red | ||
IP Rating IP67 | ||
Voltage Rating 400 V | ||
Current Rating 63A | ||
Body Orientation Straight | ||
Dimensions 300 x 163 x 196mm | ||
Earthing Position 6h | ||
Body Material Thermoplastic | ||
Depth 196mm | ||
Length 300mm | ||
Width 163mm | ||
- COO (Country of Origin):
- DE
Vertical
Fully interlocked switched (phase) sockets give enhanced electrical safety.
Switch cannot be energised until the plug is inserted
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life
16A - 63A can be padlocked in the OFF position
Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties
Continuous polyurethane gasket between lid and base
Neutral block must be removed first before fitting auxillary contact block
* Has metric threads on mounting box cable entries
X-CONTACT
Due to a completely new manufacturing process, the X-CONTACT® sleeve obtains resilient properties based solely on its material characteristics, without the need to use any additional spring elements. Thanks to the shape of the X-CONTACT® sleeve, a particularly safe contact closure can be achieved.
The special design of the X-CONTACT® reduces the effort of insertion and withdrawal by up to 50%. An advantage that simplifies work processes and improves safety especially with high electrical currents. With X-CONTACT®, MENNEKES creates a safe contact closure and easy handling at a new, equally high level.
But how does X-CONTACT® achieve these benefits even with currents of 63 A or 125 A? A glance into the opening of an X-CONTACT® sleeve reveals the intelligent functional principle: the X-shaped slot and groove in the inner wall provides four advantages of the new design: innovative, simple, durable and safe. We call it the X principle
The special design of the X-CONTACT® reduces the effort of insertion and withdrawal by up to 50%. An advantage that simplifies work processes and improves safety especially with high electrical currents. With X-CONTACT®, MENNEKES creates a safe contact closure and easy handling at a new, equally high level.
But how does X-CONTACT® achieve these benefits even with currents of 63 A or 125 A? A glance into the opening of an X-CONTACT® sleeve reveals the intelligent functional principle: the X-shaped slot and groove in the inner wall provides four advantages of the new design: innovative, simple, durable and safe. We call it the X principle
