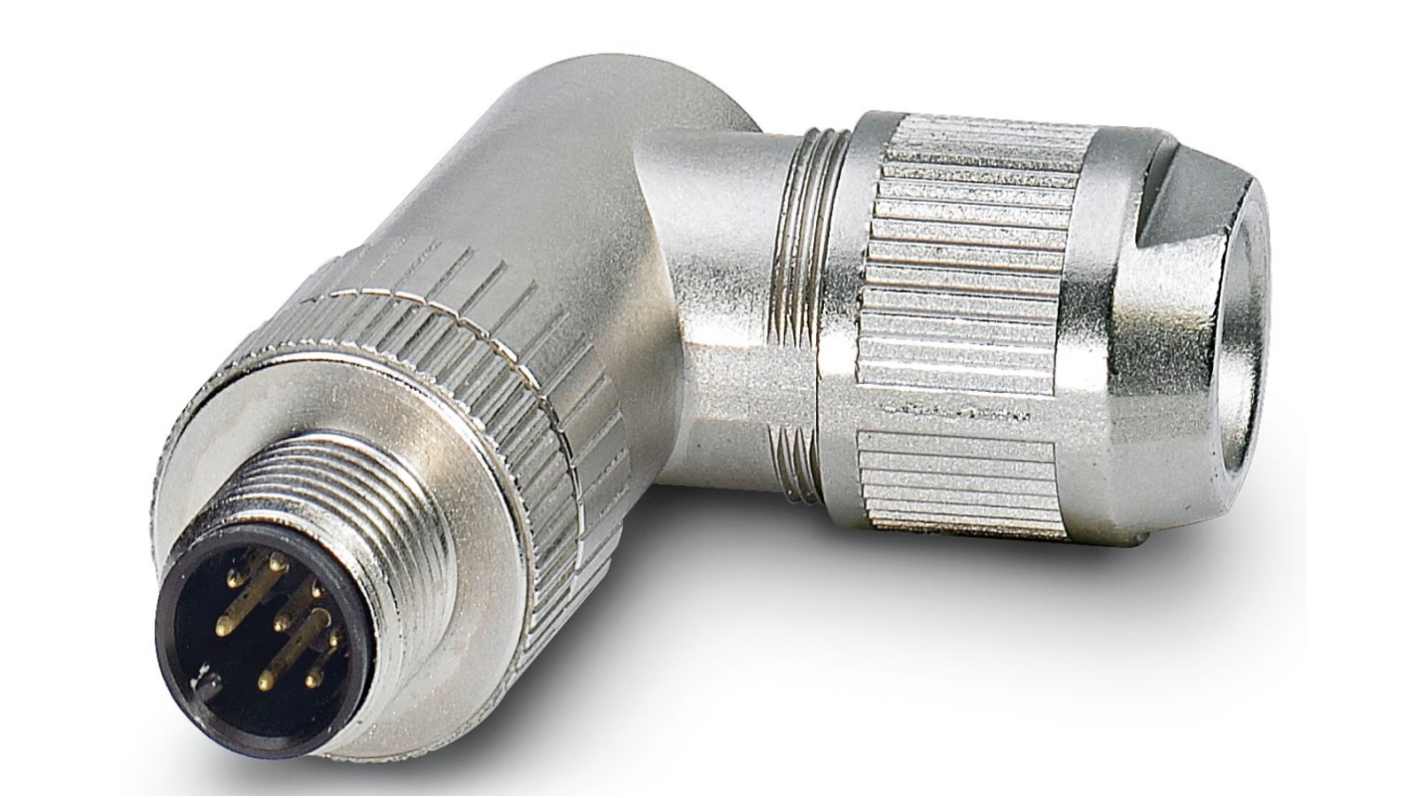

Phoenix Contact Circular Connector, 8 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67, SACC Series
- RS Stock No.:
- 801-6520
- Mfr. Part No.:
- 1553653
- Brand:
- Phoenix Contact
Save 9% when you buy 25 units
Subtotal (1 unit)*
£54.54
(exc. VAT)
£65.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 31 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £54.54 |
10 - 24 | £51.81 |
25 + | £49.09 |
*price indicative
- RS Stock No.:
- 801-6520
- Mfr. Part No.:
- 1553653
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 8 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | IDC | |
IP Rating | IP67 | |
Current Rating | 1.75A | |
Series | SACC | |
Body Orientation | Right Angle | |
Coding | A | |
Voltage Rating | 30.0 V | |
Shell Size | M12 | |
Mating Type | A Coded | |
Housing Material | Zinc | |
Contact Plating | Gold over Nickel | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Contact Material | Bronze | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method IDC | ||
IP Rating IP67 | ||
Current Rating 1.75A | ||
Series SACC | ||
Body Orientation Right Angle | ||
Coding A | ||
Voltage Rating 30.0 V | ||
Shell Size M12 | ||
Mating Type A Coded | ||
Housing Material Zinc | ||
Contact Plating Gold over Nickel | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Bronze | ||
Phoenix Contact SACC PROFIBUS / PROFINET / CANopen Connector
SACC series of universal connectors come supplied in various connection options and are supplied in a wide variety of orientations to ensure your application is covered
IP67 rated
M12 x 1mm thread
Zinc die-cast nickel-plated construction
Options utilize Speedcon terminations, which makes connections simple and suitable for field installation
360° Shielding making the SACC series suitable for use within electromagnetic interference environments
Spring termination options available (RS Stock No. 801-6665 typical)
M12 x 1mm thread
Zinc die-cast nickel-plated construction
Options utilize Speedcon terminations, which makes connections simple and suitable for field installation
360° Shielding making the SACC series suitable for use within electromagnetic interference environments
Spring termination options available (RS Stock No. 801-6665 typical)
