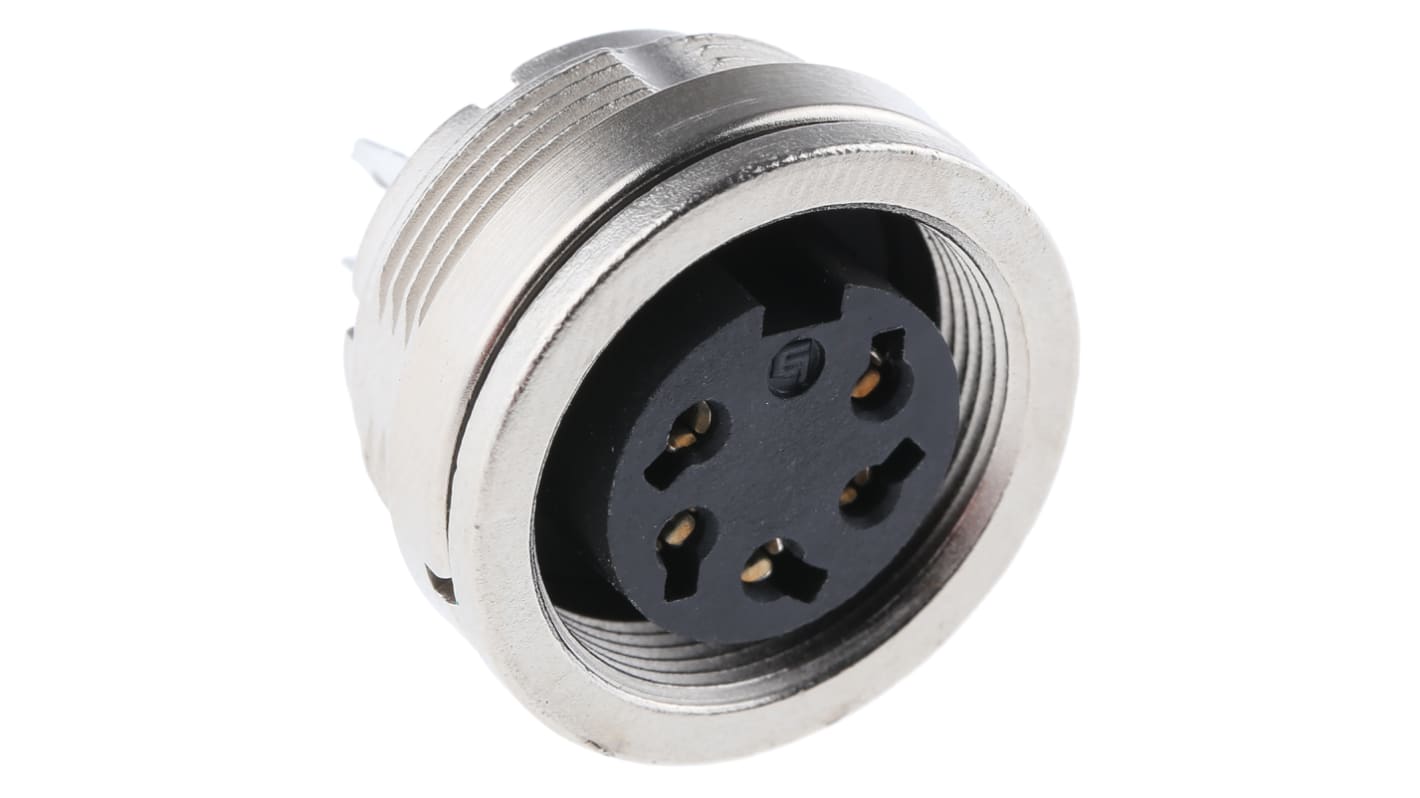

binder Circular Connector, 5 Contacts, Panel Mount, M16 Connector, Plug, Female, IP67, 723 Series
- RS Stock No.:
- 706-0129
- Mfr. Part No.:
- 09-0116-00-05
- Brand:
- binder
Bulk discount available
Subtotal (1 unit)*
£8.71
(exc. VAT)
£10.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
- Plus 39 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 49 | £8.71 |
50 - 99 | £8.06 |
100 - 249 | £7.40 |
250 - 499 | £6.75 |
500 + | £6.08 |
*price indicative
- RS Stock No.:
- 706-0129
- Mfr. Part No.:
- 09-0116-00-05
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | binder | |
Number of Contacts | 5 | |
Mounting Type | Panel Mount | |
Connector Size | M16 | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | Solder | |
IP Rating | IP67 | |
Current Rating | 6.0A | |
Series | 723 | |
Body Orientation | Straight | |
Voltage Rating | 250.0 V | |
Contact Plating | Silver | |
Maximum Operating Temperature | +95°C | |
Contact Material | Brass | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand binder | ||
Number of Contacts 5 | ||
Mounting Type Panel Mount | ||
Connector Size M16 | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 6.0A | ||
Series 723 | ||
Body Orientation Straight | ||
Voltage Rating 250.0 V | ||
Contact Plating Silver | ||
Maximum Operating Temperature +95°C | ||
Contact Material Brass | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- DE
Panel Sockets
Note
A suitable spanner is available separately for the chassis mount plug and socket - see stock no. 157-2770.

Binder 723 Series
Binder 723 series plugs and sockets feature brass nut screw-coupling mechanism and plastic insert with solder termination. The screw coupling mechanism incorporates a gasket, sealing the cable mount connectors to IP67 when mated and locked together in-line, or with the relevant chassis mounted connectors.
