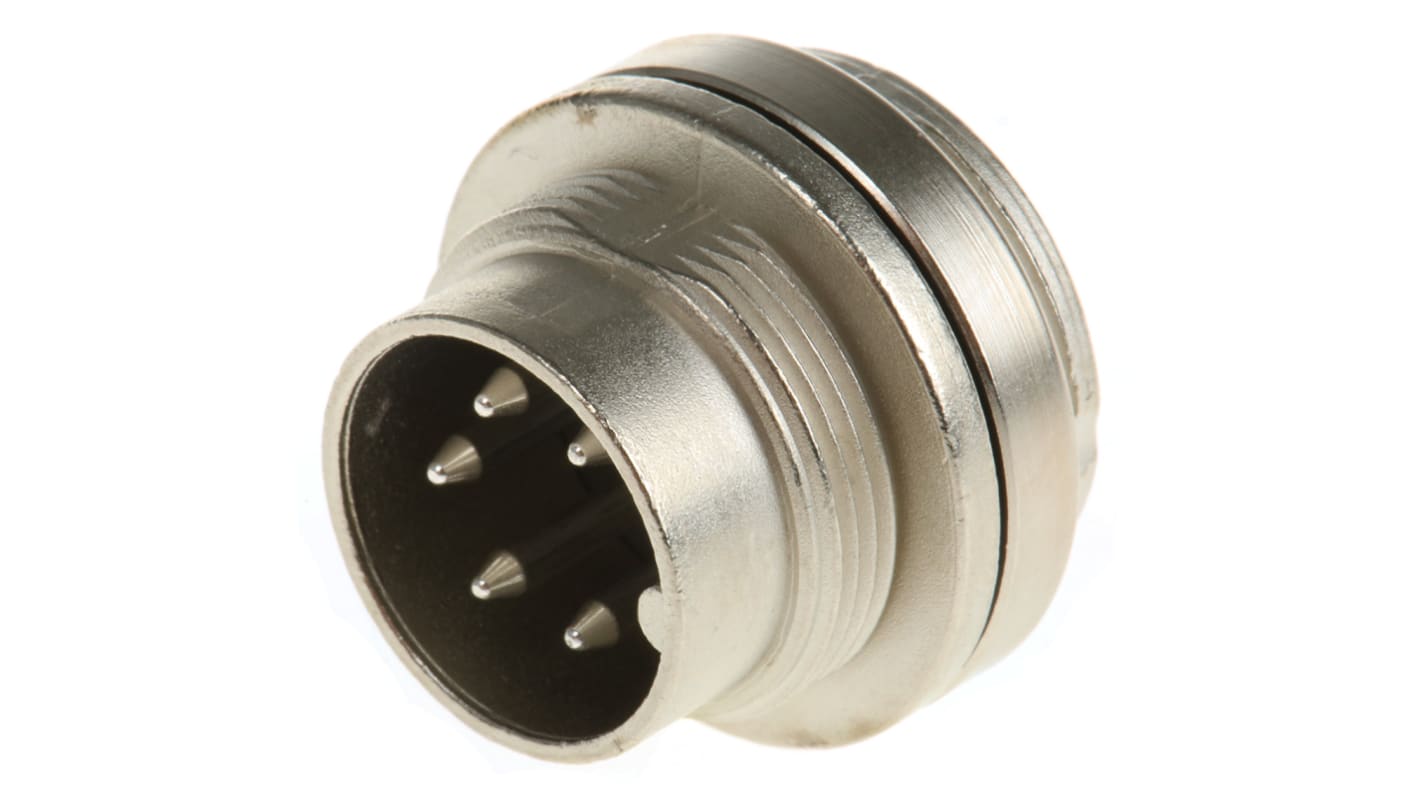

binder Circular Connector, 5 Contacts, Panel Mount, M16 Connector, Socket, Male, IP67, 723 Series

RS Stock No.:: 706-0125
Mfr. Part No.:: 09-0115-00-05
Brand:: binder

binder Circular Connector, 5 Contacts, Panel Mount, M16 Connector, Socket, Male, IP67, 723 Series

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£8.58

(exc. VAT)

£10.30

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

28 unit(s) ready to ship
Plus 90 unit(s) shipping from 23 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 49	£8.58
50 - 99	£8.02
100 - 249	£7.47
250 - 499	£6.95
500 +	£6.40

*price indicative

Sensor & Actuator Cables

Explore Binder sensor and actuator cables built for precision and durability in automation applications. Fully compatible with Binder circular connectors, they deliver dependable connectivity and consistent performance across industrial systems.

Shop Here

RS Stock No.:: 706-0125
Mfr. Part No.:: 09-0115-00-05
Brand:: binder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	binder
	Product Type	Circular Connector
	Number of Contacts	5
	Mount Type	Panel Mount
	Current	6A
	Connector Size	M16
	Plug/Socket	Socket
	Contact Gender	Male
	IP Rating	IP67
	Series	723
	Orientation	Straight
	Voltage	250.0V
	Shell Size	20 mm
	Termination Type	Solder
	Minimum Operating Temperature	-30°C
	Mating Type	Screw-On
	Maximum Operating Temperature	95°C
	Housing Material	Nylon
	Pole Format	5
	Standards/Approvals	No
	Contact Plating	Silver
	Contact Material	Brass

	Select all
	Brand binder
	Product Type Circular Connector
	Number of Contacts 5
	Mount Type Panel Mount
	Current 6A
	Connector Size M16
	Plug/Socket Socket
	Contact Gender Male
	IP Rating IP67
	Series 723
	Orientation Straight
	Voltage 250.0V
	Shell Size 20 mm
	Termination Type Solder
	Minimum Operating Temperature -30°C
	Mating Type Screw-On
	Maximum Operating Temperature 95°C
	Housing Material Nylon
	Pole Format 5
	Standards/Approvals No
	Contact Plating Silver
	Contact Material Brass

Miniature connectors series 423 · 723 · 425 Data Sheet

COO (Country of Origin):: DE

Panel Plugs

Binder 723 Series

Binder 723 series plugs and sockets feature brass nut screw-coupling mechanism and plastic insert with solder termination. The screw coupling mechanism incorporates a gasket, sealing the cable mount connectors to IP67 when mated and locked together in-line, or with the relevant chassis mounted connectors.

Note

A suitable spanner is available separately for the chassis mount plug and socket - see stock no. 157-2770.
