binder Circular Connector, 24 Contacts, Panel Mount, M16 Connector, Socket, Female, IP67, 723 Series
- RS Stock No.:
- 261-6253
- Mfr. Part No.:
- 09-0498-00-24
- Brand:
- binder

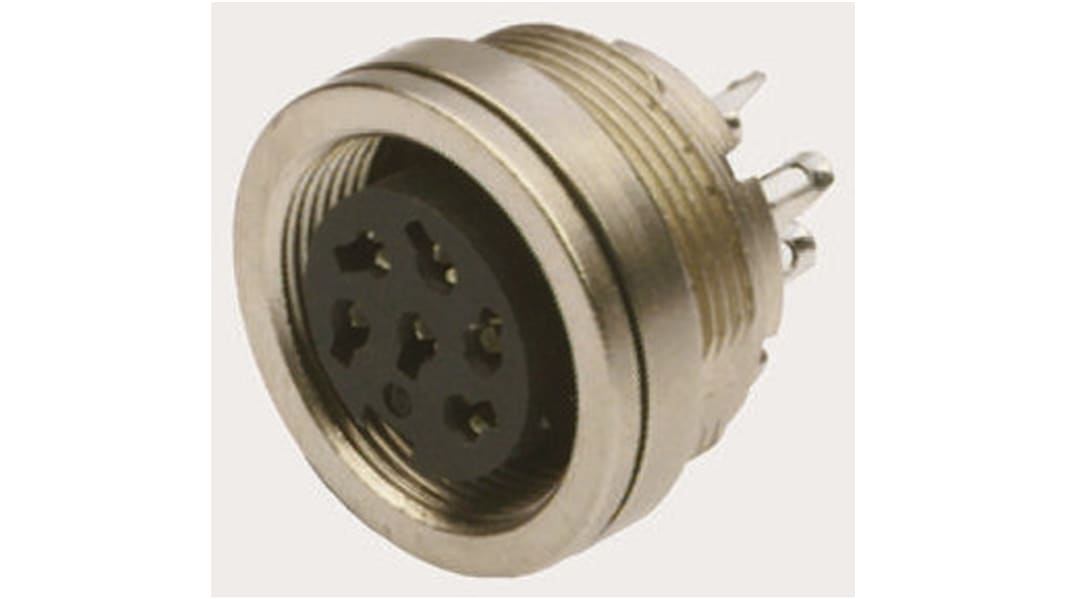

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£35.09
(exc. VAT)
£42.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 111 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £35.09 |
| 50 - 99 | £32.88 |
| 100 - 249 | £30.71 |
| 250 - 499 | £28.49 |
| 500 + | £26.32 |
*price indicative
- RS Stock No.:
- 261-6253
- Mfr. Part No.:
- 09-0498-00-24
- Brand:
- binder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | binder | |
| Number of Contacts | 24 | |
| Mounting Type | Panel Mount | |
| Connector Size | M16 | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| Termination Method | Solder | |
| IP Rating | IP67 | |
| Current Rating | 1.0A | |
| Series | 723 | |
| Body Orientation | Straight | |
| Voltage Rating | 60.0 V | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Maximum Operating Temperature | +95°C | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand binder | ||
Number of Contacts 24 | ||
Mounting Type Panel Mount | ||
Connector Size M16 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 1.0A | ||
Series 723 | ||
Body Orientation Straight | ||
Voltage Rating 60.0 V | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Maximum Operating Temperature +95°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- DE
Panel Sockets
Note
A suitable spanner is available separately for the chassis mount plug and socket - see stock no. 157-2770.

Binder 723 Series
Binder 723 series plugs and sockets feature brass nut screw-coupling mechanism and plastic insert with solder termination. The screw coupling mechanism incorporates a gasket, sealing the cable mount connectors to IP67 when mated and locked together in-line, or with the relevant chassis mounted connectors.
