SICK Connector, 4 Contacts, Screw, M12 Connector, Plug, Female, IP67, SYL Series

RS Stock No.:: 285-4316
Mfr. Part No.:: SYL-1205-G0M3 / 6043534
Brand:: SICK

Subtotal (1 unit)*

£41.85

(exc. VAT)

£50.22

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 24 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£41.85

*price indicative

RS Stock No.:: 285-4316
Mfr. Part No.:: SYL-1205-G0M3 / 6043534
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Number of Contacts	4
	Product Type	Connector
	Mount Type	Screw
	Connector Size	M12
	Current	4A
	Plug/Socket	Plug
	Contact Gender	Female
	IP Rating	IP67
	Orientation	Straight
	Series	SYL
	Coding	A
	Voltage	250V dc
	Mating Type	M12
	Minimum Operating Temperature	-40°C
	Housing Material	Thermoplastic Polyurethane
	Maximum Operating Temperature	80°C
	Standards/Approvals	RoHS

	Select all
	Brand SICK
	Number of Contacts 4
	Product Type Connector
	Mount Type Screw
	Connector Size M12
	Current 4A
	Plug/Socket Plug
	Contact Gender Female
	IP Rating IP67
	Orientation Straight
	Series SYL
	Coding A
	Voltage 250V dc
	Mating Type M12
	Minimum Operating Temperature -40°C
	Housing Material Thermoplastic Polyurethane
	Maximum Operating Temperature 80°C
	Standards/Approvals RoHS

Datasheet - SYL-1205-G0M3

COO (Country of Origin):: DE

Overview

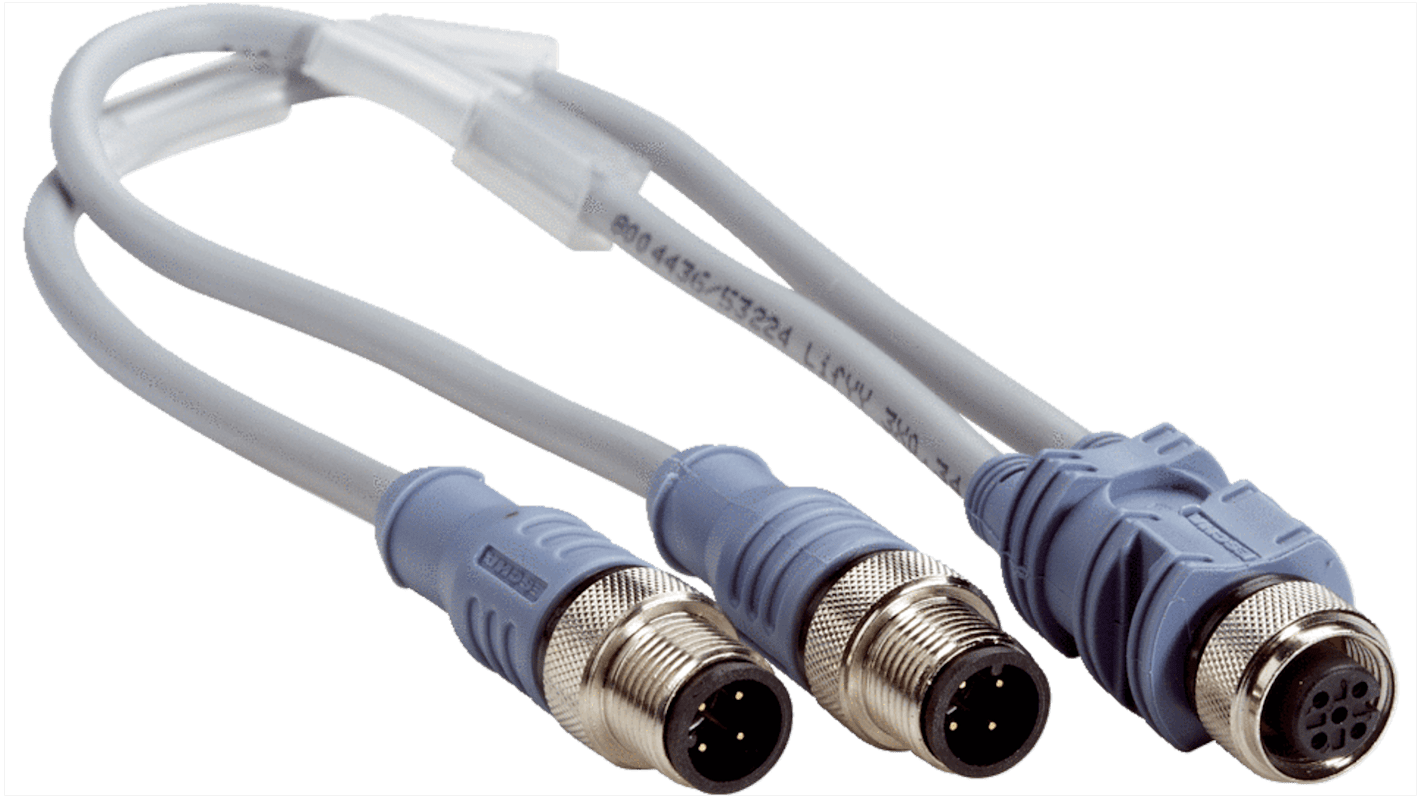

The Y junctions facilitate versatile connections with one end equipped with a female M12, 4 pin, A-coded connector, and the other end featuring a male M12, 4 pin, A-coded connector. The nickel-plated brass locking nuts ensure secure and durable connections. The included 0.3-meter PVC cable, with a conductor cross section of 0.34 mm², enhances flexibility and facilitates efficient signal transmission.

Ideal for applications requiring a split or branching configuration, these Y-junctions provide reliable connectivity with compatibility for A-coded M12 connectors, making them suitable for diverse industrial settings.
