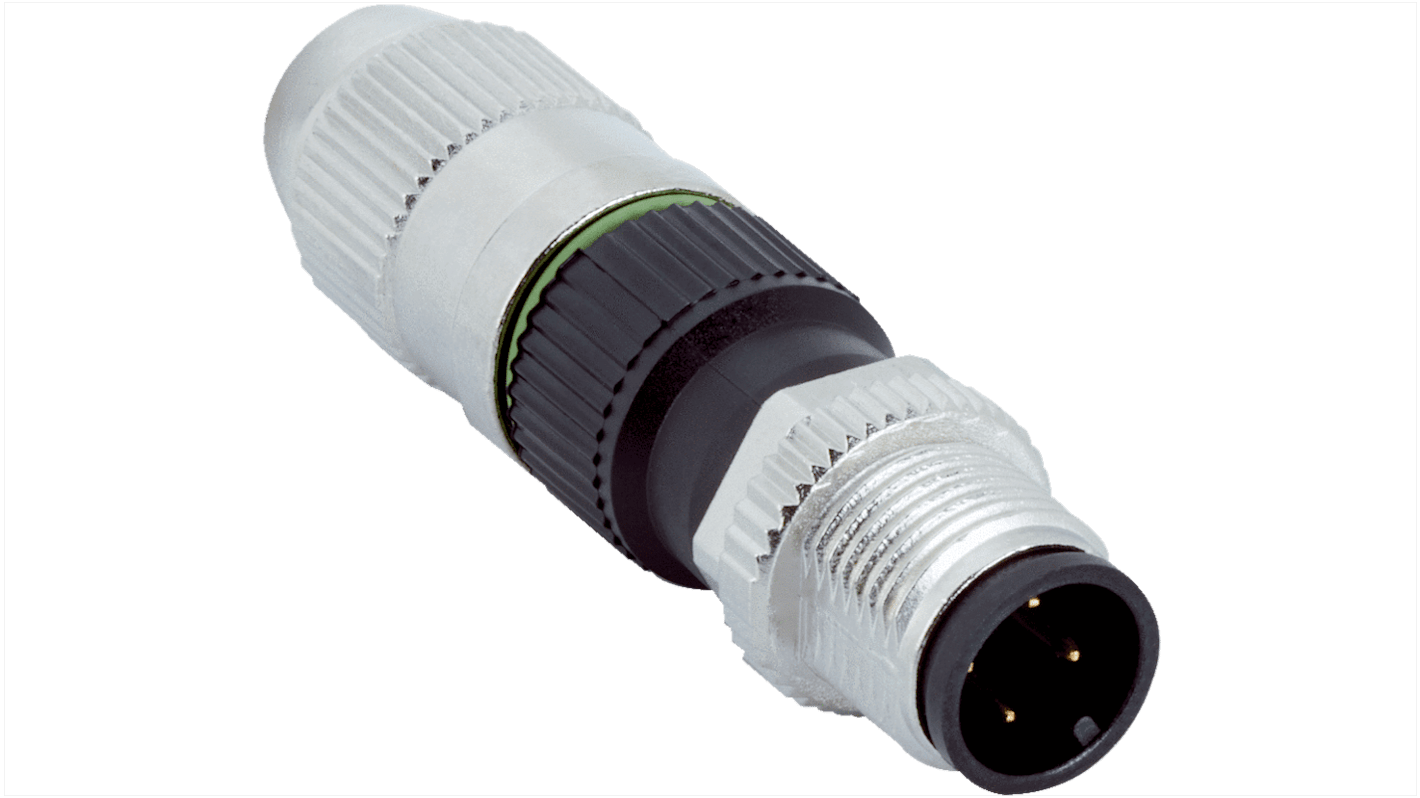

SICK Connector, Screw Mount, M12 Connector, Plug, Male, IP65, IP67, YM12U14 Series
- RS Stock No.:
- 285-1567
- Mfr. Part No.:
- YM12U14-1434K2951A / 2115540
- Brand:
- SICK
Subtotal (1 unit)*
£13.53
(exc. VAT)
£16.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £13.53 |
*price indicative
- RS Stock No.:
- 285-1567
- Mfr. Part No.:
- YM12U14-1434K2951A / 2115540
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Mounting Type | Screw Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Screw | |
IP Rating | IP65, IP67 | |
Current Rating | 4.0A | |
Series | YM12U14 | |
Body Orientation | Straight | |
Coding | A | |
Mating Type | Plug-In | |
Housing Material | Polyamide | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand SICK | ||
Mounting Type Screw Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP65, IP67 | ||
Current Rating 4.0A | ||
Series YM12U14 | ||
Body Orientation Straight | ||
Coding A | ||
Mating Type Plug-In | ||
Housing Material Polyamide | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- DE
Overview
The Connectors from field attachable connectors family provides a male connector, with a M12 specification and 4 pins arranged in a straight configuration at Head A with A coded, utilizes screw connection for a reliable connection. Constructed with PA material in a black color.
The connectors accommodate cables with a permitted diameter ranging from 2.9 mm to 5.1 mm. The permitted cross section for the cables is between 0.14 mm² to 0.34 mm². The connectors are designed with an enclosure rating of IP65 and IP67.
