Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Socket, IP65, SACC-M12FSL-4FEPL-CL Series
- RS Stock No.:
- 265-8985
- Mfr. Part No.:
- 1151390
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£43.07
(exc. VAT)
£51.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 19 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £43.07 |
*price indicative
- RS Stock No.:
- 265-8985
- Mfr. Part No.:
- 1151390
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
IP Rating | IP65 | |
Current Rating | 16A | |
Series | SACC-M12FSL-4FEPL-CL | |
Body Orientation | Straight | |
Voltage Rating | 63 V dc | |
Coding | L | |
Shielded/Unshielded | Unshielded | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 8 → 13mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
IP Rating IP65 | ||
Current Rating 16A | ||
Series SACC-M12FSL-4FEPL-CL | ||
Body Orientation Straight | ||
Voltage Rating 63 V dc | ||
Coding L | ||
Shielded/Unshielded Unshielded | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 8 → 13mm | ||
- COO (Country of Origin):
- DE

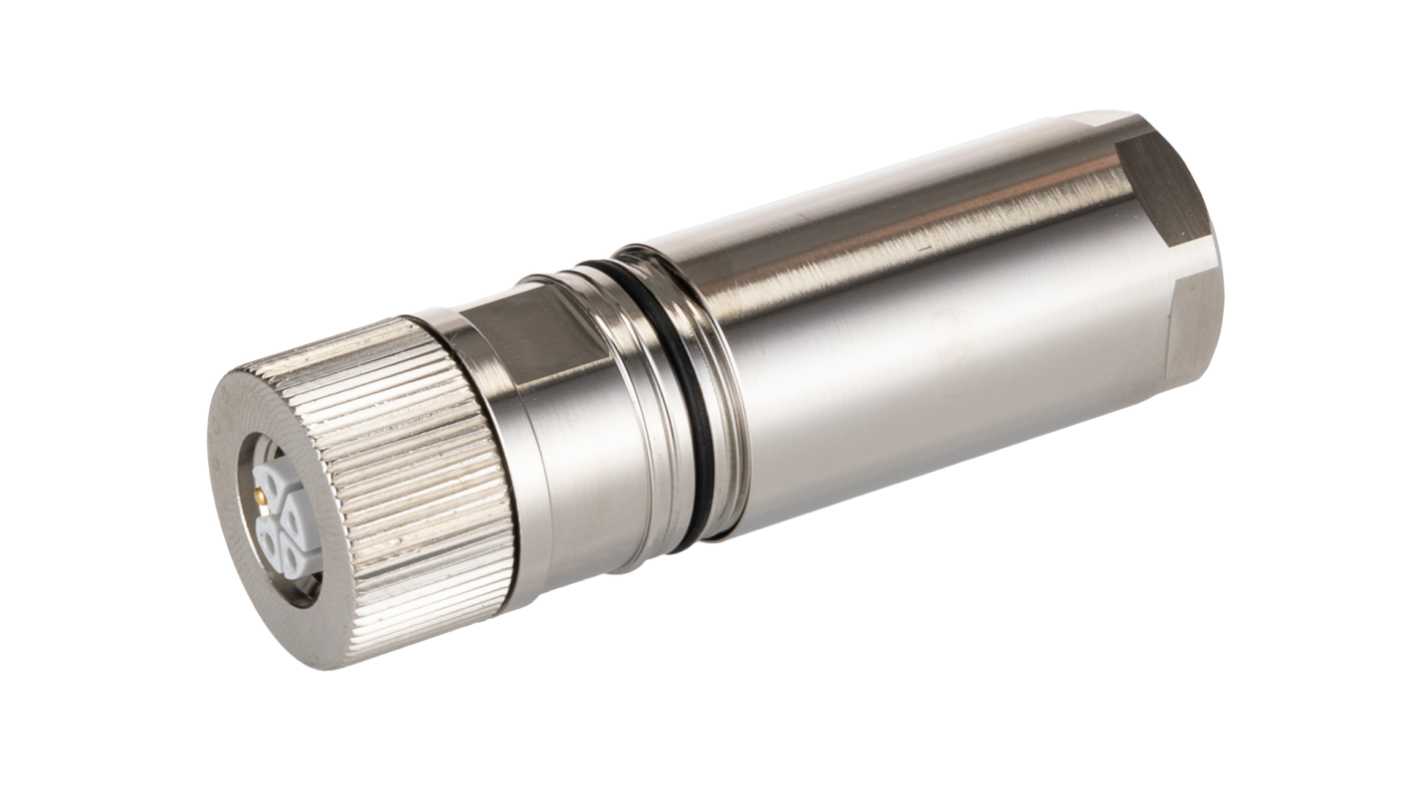

Phoenix Contact SACC-M12FSL-4FEPL-CL Series Circular Connector, IP65, 16A Current Rating - 1151390
This circular connector is intended for robust power supply applications in industrial environments. The M12 socket features five contacts for versatile connectivity options. With an outer diameter ranging from 8mm to 13mm, it is suitable for cable mounting, ensuring secure connections in challenging conditions. This unshielded connector operates effectively within a temperature range of -40 to +85°C.
Features & Benefits
• Tool-free Push-Lock connection facilitates installation
• Colour-coded identification simplifies wiring tasks
• Integrated Push-in Technology enables quick conductor insertion
• Spring-cage design provides durability against shocks
• IP65 rating protects against dust and moisture ingress
• Suitable for conductors up to 2.5mm² for high current
• Colour-coded identification simplifies wiring tasks
• Integrated Push-in Technology enables quick conductor insertion
• Spring-cage design provides durability against shocks
• IP65 rating protects against dust and moisture ingress
• Suitable for conductors up to 2.5mm² for high current
Applications
• Connecting power supply systems
• Utilised in automation and control systems
• Suitable for high-temperature operation
• Compatible with various cable types for flexibility
• Employed in industrial environments requiring durability
• Utilised in automation and control systems
• Suitable for high-temperature operation
• Compatible with various cable types for flexibility
• Employed in industrial environments requiring durability
Can it be used in environments with high humidity?
Yes, it has an IP65 rating for moisture protection.
Will it withstand mechanical stress in industrial settings?
The robust spring-cage technology ensures performance reliability.
Is it easy to connect different conductor sizes?
Yes, it accommodates conductors ranging from 0.75mm² to 2.5mm².
