- RS Stock No.:
- 186-0440
- Mfr. Part No.:
- T4143012121-000
- Brand:
- TE Connectivity
Available to back order for despatch 05/11/2024
Added
Price Each
£15.78
(exc. VAT)
£18.94
(inc. VAT)
Units | Per unit |
1 - 9 | £15.78 |
10 + | £14.72 |
- RS Stock No.:
- 186-0440
- Mfr. Part No.:
- T4143012121-000
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

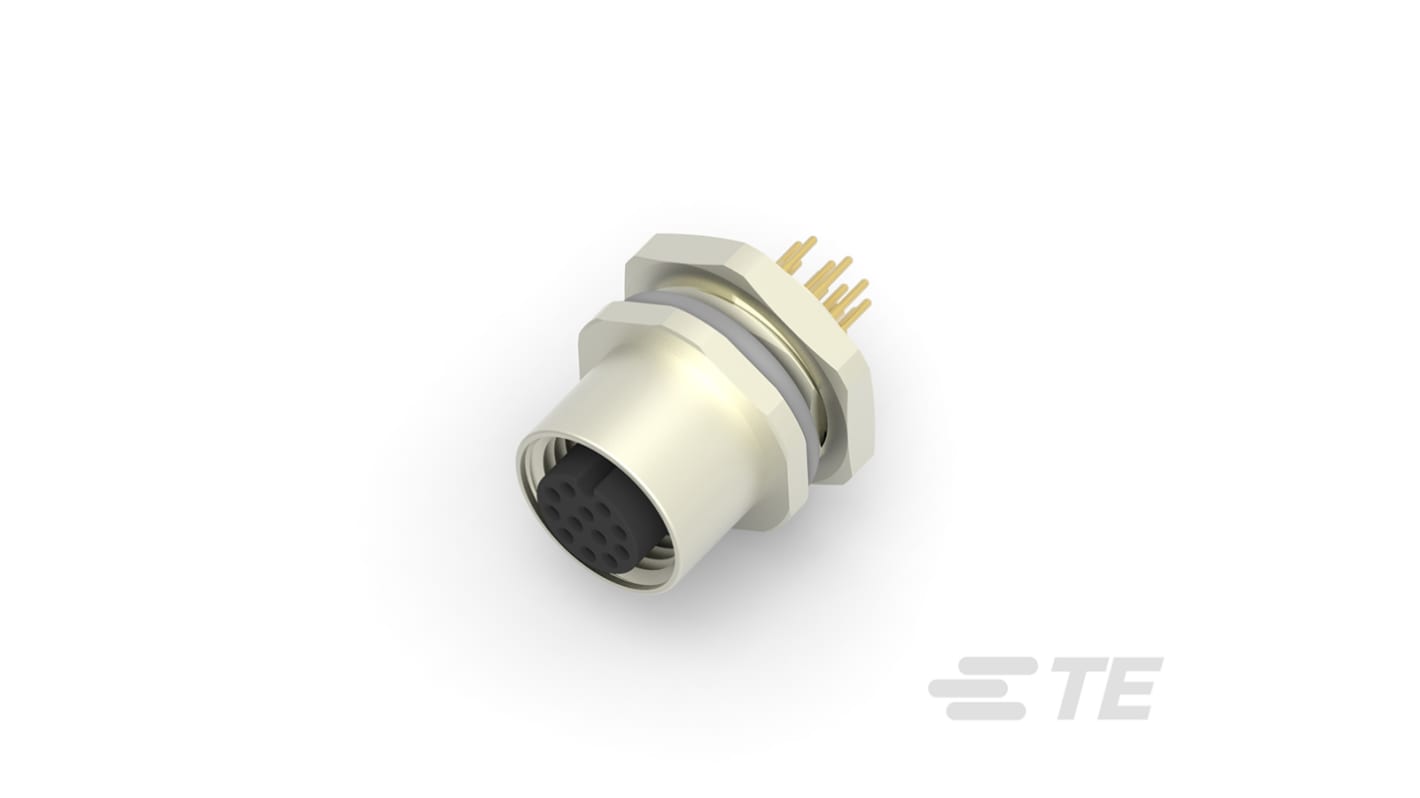

TE Connectivity extends its M12 connector portfolio with 8 and 12 positions for direct mounting onto PCBs and panels to complement field-installable connector and cable assembly solutions. The new plug-in PCB connectors are easy to install and help to increase production efficiency and decrease installation cost for installers in industrial automation, machinery, industrial ethernet, sensors, and other areas where IP67 protection is needed. The high pin density on the 12-pin connector, in particular, provides customers with a very compact design. Adding this product series to our portfolio allows us to better serve our customers and accommodate their needs for higher signal and data transmission in harsh industrial environments.
Compact design with high density connection
Plug-&-Play mating for easy and fast installation
Quick and reliable connection for PCB and panel mount
Available for 8 & 12 positions
Dust-tightness and water-proof for at least 1m
Application
Machinery
Automation Integration
Vision System
Semiconductor manufacturing
Factory automation machines
Plug-&-Play mating for easy and fast installation
Quick and reliable connection for PCB and panel mount
Available for 8 & 12 positions
Dust-tightness and water-proof for at least 1m
Application
Machinery
Automation Integration
Vision System
Semiconductor manufacturing
Factory automation machines
Specifications
Attribute | Value |
---|---|
Number of Contacts | 12 |
Mounting Type | Front Mount |
Connector Size | M12 |
Plug/Socket | Socket |
Contact Gender | Female |
Termination Method | Solder |
IP Rating | IP67 |
Current Rating | 1.5A |
Voltage Rating | 30 V |
Coding | A |
Mating Type | Keyed |
Shell Size | 18 |
Housing Material | Nylon |
Pole Format | 12P |
Contact Material | Copper |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
