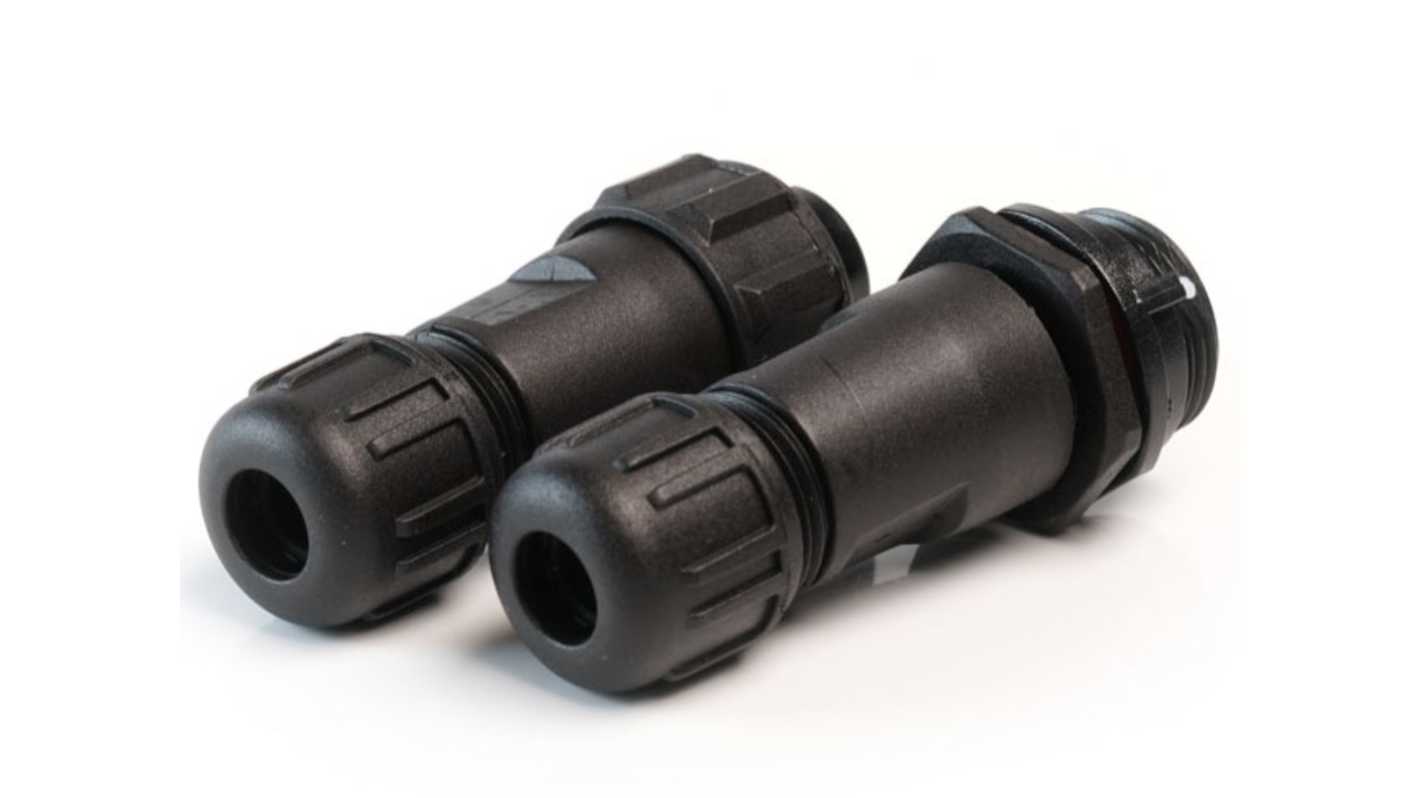

RS PRO Circular Connector, 3 Contacts, Cable Mount, Miniature Connector, Plug and Socket, Male and Female Contacts, IP68
- RS Stock No.:
- 144-0628
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£13.85
(exc. VAT)
£16.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 191 unit(s) shipping from 06 October 2025
- Plus 26 unit(s) shipping from 06 October 2025
- Plus 90 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
---|---|
1 - 9 | £13.85 |
10 - 49 | £13.13 |
50 - 99 | £12.47 |
100 + | £11.77 |
*price indicative
- RS Stock No.:
- 144-0628
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 3 | |
Mounting Type | Cable Mount | |
Connector Size | Miniature | |
Plug/Socket | Plug, Socket | |
Contact Gender | Female, Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 13A | |
Body Orientation | Straight | |
Series | SP13 | |
Voltage Rating | 250V | |
Mating Type | Threaded | |
Housing Material | Nylon 66, PC | |
Pole Format | 3P | |
Contact Plating | Gold | |
Strain Relief | No | |
Outer Diameter | 4→6.5mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 3 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 13A | ||
Body Orientation Straight | ||
Series SP13 | ||
Voltage Rating 250V | ||
Mating Type Threaded | ||
Housing Material Nylon 66, PC | ||
Pole Format 3P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Outer Diameter 4→6.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
RS PRO Miniature Cable Mount Connector, 3 Contacts
Are you looking for a connector that can serve as both a plug and a socket? Use this RS PRO threaded cable mounting connector to make inline connections for power, signal and data transmission.
Thanks to the connector's nylon housing, it's robust and resistant to extreme environmental conditions. This means it will protect your cables against damage from jolts and moisture. Its IP68 rating means it's waterproof when submerged for more than half an hour in water deeper than one metre, and it's also protected against dust and other small particles.
The brass contacts offer high conductivity, ensuring a continuous and uninterrupted transfer of electricity. You'll commonly find this type of connector used for industrial applications.
Thanks to the connector's nylon housing, it's robust and resistant to extreme environmental conditions. This means it will protect your cables against damage from jolts and moisture. Its IP68 rating means it's waterproof when submerged for more than half an hour in water deeper than one metre, and it's also protected against dust and other small particles.
The brass contacts offer high conductivity, ensuring a continuous and uninterrupted transfer of electricity. You'll commonly find this type of connector used for industrial applications.
Features and Benefits
- Straight body orientation
- Miniature connector size
- Female and male contact gender
- Brass contact material
- Gold contact plating
- Current rating of 13 A
- Nylon housing material
- IP68 rating
- Plug-in mating type
- Maximum operating temperature of +85°C
- Minimum operating temperature of -25°C
- Cable mounting type
- Three contacts
- Plug and socket
- Pole format of 3P (plug) and 3P (socket)
- Solder termination method
- Voltage rating of 250 V
