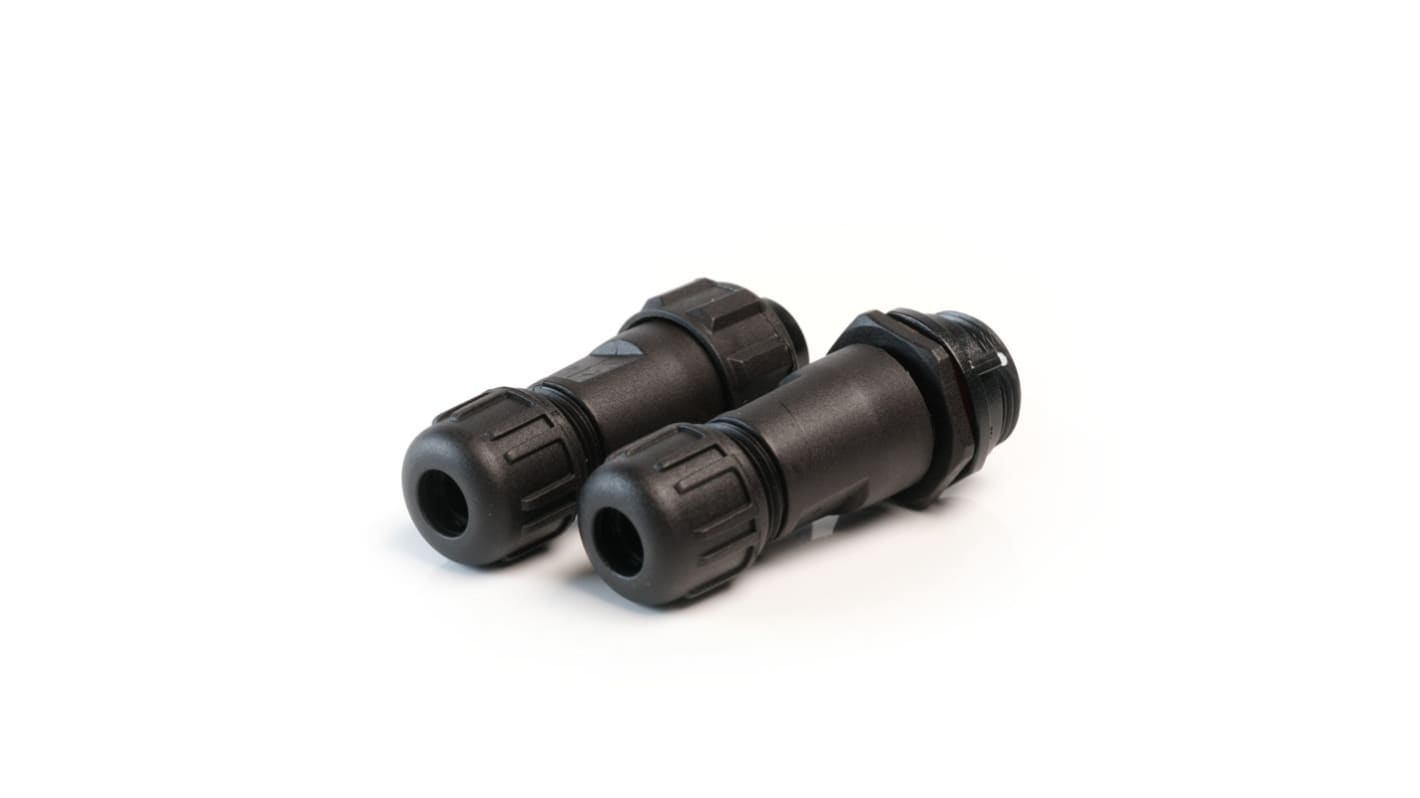

RS PRO Circular Connector, 2 Contacts, Cable Mount, Miniature Connector, Plug and Socket, Male and Female Contacts, IP68
- RS Stock No.:
- 144-0627
- Distrelec Article No.:
- 304-03-941
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£12.80
(exc. VAT)
£15.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 117 unit(s) shipping from 06 October 2025
- Plus 33 unit(s) shipping from 06 October 2025
- Plus 60 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
---|---|
1 - 9 | £12.80 |
10 - 49 | £12.20 |
50 - 99 | £11.53 |
100 + | £10.90 |
*price indicative
- RS Stock No.:
- 144-0627
- Distrelec Article No.:
- 304-03-941
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 2 | |
Mounting Type | Cable Mount | |
Connector Size | Miniature | |
Plug/Socket | Plug, Socket | |
Contact Gender | Female, Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 13A | |
Body Orientation | Straight | |
Series | SP13 | |
Voltage Rating | 250V | |
Mating Type | Threaded | |
Housing Material | Nylon 66, PC | |
Pole Format | 2P | |
Contact Plating | Gold | |
Strain Relief | No | |
Maximum Operating Temperature | 85°C | |
Outer Diameter | 4→6.5mm | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 2 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 13A | ||
Body Orientation Straight | ||
Series SP13 | ||
Voltage Rating 250V | ||
Mating Type Threaded | ||
Housing Material Nylon 66, PC | ||
Pole Format 2P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Maximum Operating Temperature 85°C | ||
Outer Diameter 4→6.5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
RS PRO Cable Mounting Miniature Connector, 2 Contacts
Looking for a dual-functional plug and socket connector? Establish inline connections with this RS PRO threaded cable mounting connector for the transmission of power, signals and data.
The nylon housing makes this item robust and resistant to extreme weather and environmental conditions so it protects your cables from damage caused by things like moisture and jolts. You can be sure that the high conductivity of the brass contacts facilitates the regular and continuous transfer of electricity and that your operations won't be interrupted.
This item has an Ingress Protection (IP) rating of IP68. This means it will remain waterproof when submerged deeper than one metre for longer than half an hour and that small particles like dust and other corrosives can't enter the casing. Use this connector for industrial applications.
The nylon housing makes this item robust and resistant to extreme weather and environmental conditions so it protects your cables from damage caused by things like moisture and jolts. You can be sure that the high conductivity of the brass contacts facilitates the regular and continuous transfer of electricity and that your operations won't be interrupted.
This item has an Ingress Protection (IP) rating of IP68. This means it will remain waterproof when submerged deeper than one metre for longer than half an hour and that small particles like dust and other corrosives can't enter the casing. Use this connector for industrial applications.
Features and Benefits
• Straight body orientation
• Miniature connector size
• Female and male contact gender
• Brass contact material
• Gold contact plating
• Current rating of 13 A
• Nylon housing material
• IP68 rating
• Plug-in mating type
• Maximum operating temperature of +85°C
• Minimum operating temperature of -25°C
• Cable mounting type
• Two contacts
• Plug and socket
• Pole format of 2P (plug) and 2P (socket)
• Solder termination method
• Voltage rating of 250 V
• Miniature connector size
• Female and male contact gender
• Brass contact material
• Gold contact plating
• Current rating of 13 A
• Nylon housing material
• IP68 rating
• Plug-in mating type
• Maximum operating temperature of +85°C
• Minimum operating temperature of -25°C
• Cable mounting type
• Two contacts
• Plug and socket
• Pole format of 2P (plug) and 2P (socket)
• Solder termination method
• Voltage rating of 250 V
