RS PRO Circular Connector, 3 Contacts, Cable Mount, Miniature Connector, Plug, Male, IP68
- RS Stock No.:
- 144-0608
- Brand:
- RS PRO
Save 15% when you buy 100 units
Subtotal (1 unit)*
£6.90
(exc. VAT)
£8.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 110 unit(s) shipping from 20 October 2025
- Plus 120 unit(s) shipping from 11 November 2025
- Plus 120 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.90 |
10 - 49 | £6.55 |
50 - 99 | £6.20 |
100 + | £5.86 |
*price indicative
- RS Stock No.:
- 144-0608
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 3 | |
Mounting Type | Cable Mount | |
Connector Size | Miniature | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 13A | |
Body Orientation | Straight | |
Series | SP13 | |
Voltage Rating | 250V | |
Mating Type | Threaded | |
Housing Material | Nylon 66, PC | |
Pole Format | 3P | |
Contact Plating | Gold | |
Strain Relief | No | |
Maximum Operating Temperature | 85°C | |
Outer Diameter | 4→6.5mm | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 3 | ||
Mounting Type Cable Mount | ||
Connector Size Miniature | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 13A | ||
Body Orientation Straight | ||
Series SP13 | ||
Voltage Rating 250V | ||
Mating Type Threaded | ||
Housing Material Nylon 66, PC | ||
Pole Format 3P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Maximum Operating Temperature 85°C | ||
Outer Diameter 4→6.5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
RS PRO Cable Mounting Miniature Connectors - 5A / 13 A

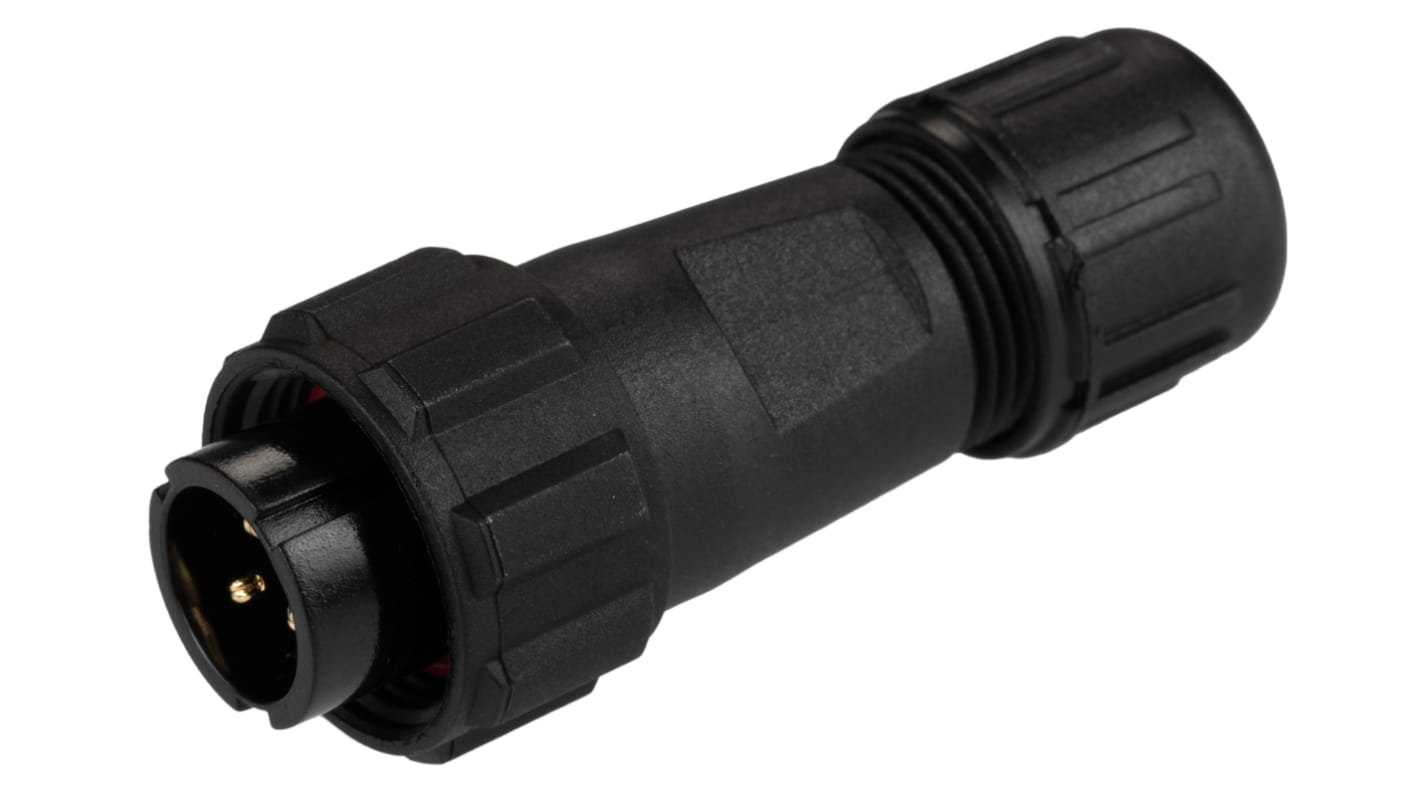

RS PRO cable mounting male connector is a threaded coupling plug that connects different devices and components in industrial operations. Pair this item with matching contact female connectors to manage the simultaneous transfer of power, data and signals.
You can use the connector in high-impact conditions as the robust nylon casing withstands jolts to safeguard your cables. It's versatile and accommodates both cable-to-cable and cable-to-panel connections so you won't need to purchase additional connectors for these functions.
The connector carries an Ingress Protection (IP) rating of IP68, making it waterproof below one metre for more than 30 minutes and preventing particles like dust from entering. You can use this product in outdoor security systems and marine equipment.
You can use the connector in high-impact conditions as the robust nylon casing withstands jolts to safeguard your cables. It's versatile and accommodates both cable-to-cable and cable-to-panel connections so you won't need to purchase additional connectors for these functions.
The connector carries an Ingress Protection (IP) rating of IP68, making it waterproof below one metre for more than 30 minutes and preventing particles like dust from entering. You can use this product in outdoor security systems and marine equipment.
Features and Benefits
- Straight body orientation
- Miniature connector size
- Male contact gender
- Brass contact material
- Gold contact plating
- Current rating of 5A or 13A
- Nylon housing material
- Plug-in mating type
- Maximum operating temperature of +85°C
- Minimum operating temperature of -25°C
- Cable mounting type
- Pole format of 2P, 3P, 4P, 5P
- Solder termination method
- IP68 rating
