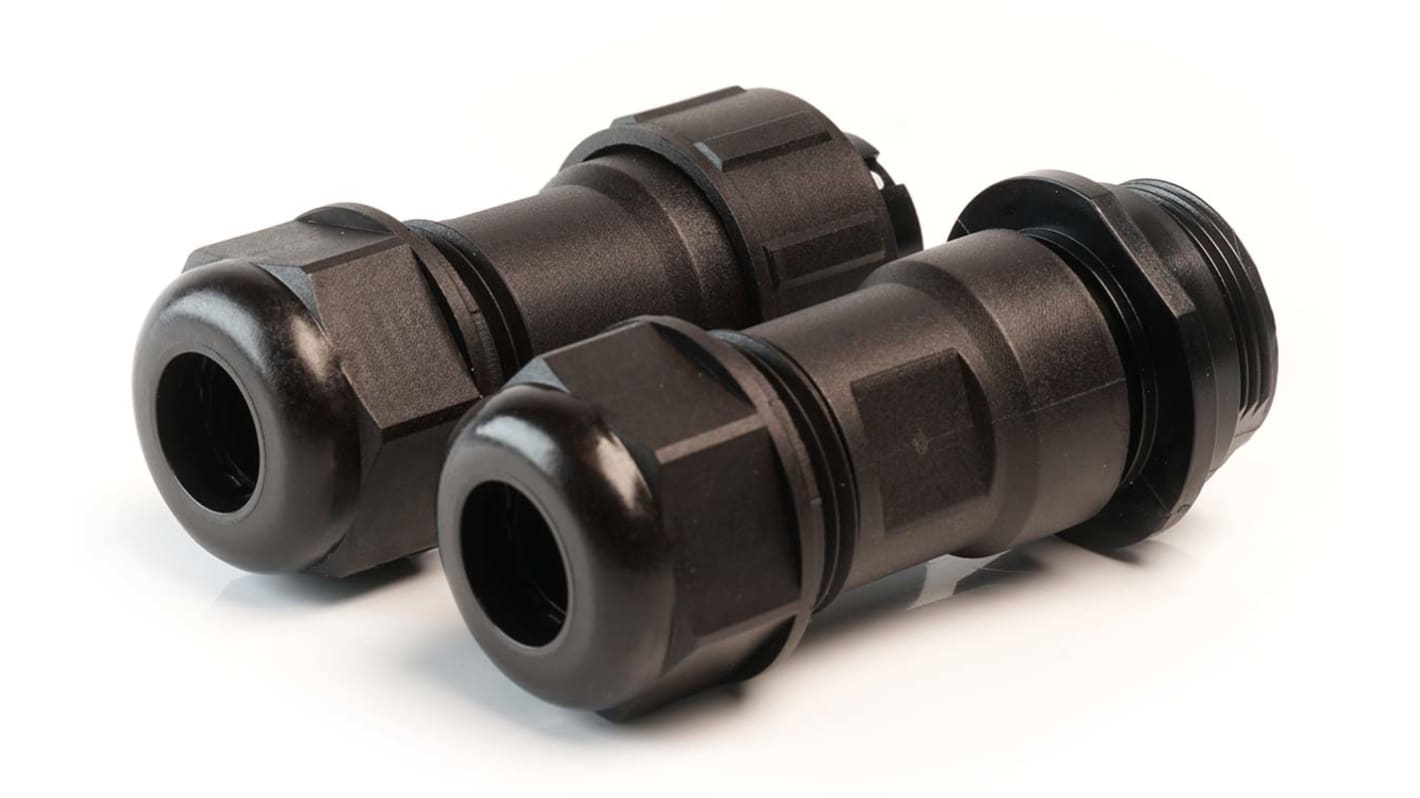

RS PRO Circular Connector, 3 Contacts, Cable, Plug and Socket, Male and Female Contacts, IP68
- RS Stock No.:
- 124-6689
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£24.39
(exc. VAT)
£29.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 90 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
---|---|
1 - 9 | £24.39 |
10 - 49 | £23.17 |
50 - 99 | £21.96 |
100 + | £20.76 |
*price indicative
- RS Stock No.:
- 124-6689
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 3 | |
Mounting Type | Cable | |
Connector Size | Standard | |
Plug/Socket | Plug, Socket | |
Contact Gender | Female, Male | |
Termination Method | Crimp | |
IP Rating | IP68 | |
Current Rating | 10A | |
Series | SP17 | |
Body Orientation | Straight | |
Voltage Rating | 500V | |
Mating Type | Threaded | |
Housing Material | Nylon 66, PC | |
Pole Format | 3P | |
Strain Relief | No | |
Contact Plating | Gold | |
Maximum Operating Temperature | 85°C | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 6→10mm | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 3 | ||
Mounting Type Cable | ||
Connector Size Standard | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Crimp | ||
IP Rating IP68 | ||
Current Rating 10A | ||
Series SP17 | ||
Body Orientation Straight | ||
Voltage Rating 500V | ||
Mating Type Threaded | ||
Housing Material Nylon 66, PC | ||
Pole Format 3P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 6→10mm | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN
Cable Plug and InLine Socket Set 10A/5A Circular Connectors (Threaded) IP68
From RS Pro, these threaded plugs & sockets are serious contenders for your application. These particular models have bigger and stronger shells complimented by their cable to cable (inline) connection. That coupled with the IP68 rating, makes sure that these industrial connectors excel in harsh environments. When choosing a male & female connector set, these should really be the one you consider.
Features & Benefits
Both Male and Female cable connectors are together as a set
2 way, 3 way and 4 way, all available
Cable outer diameter 6-10 mm
Panel Hole Cutout Size 17 mm
High-quality Nylon66 shell
Crimp Contact Termination
2 way, 3 way and 4 way, all available
Cable outer diameter 6-10 mm
Panel Hole Cutout Size 17 mm
High-quality Nylon66 shell
Crimp Contact Termination
RS PRO Connector, 3 contacts Cable Mount Plug and Socket, Crimp IP68
RS PRO 3 contact connectors offer a reliable method to secure cable connections without the need for soldering. The plug and socket set achieves a tight fit and is ideal for cable-to-cable applications. Threaded mating on the connectors makes them quick to assemble and disassemble on site.
Encased in high-quality nylon 66 shells, these connectors can be used for wires of 6 mm to 10 mm in diameter. As they have an IP68 rating, the connectors are waterproof and the brass contacts are gold-plated for protection against rust and corrosion. Part of our RS PRO range, this product is strictly tested for adherence to quality and compliance with British and EU electrostatic discharge standards.
Crimp terminal connectors are a popular choice for industrial machinery or rail and automation applications that require high resistance to temperature changes, shock and vibration.
Encased in high-quality nylon 66 shells, these connectors can be used for wires of 6 mm to 10 mm in diameter. As they have an IP68 rating, the connectors are waterproof and the brass contacts are gold-plated for protection against rust and corrosion. Part of our RS PRO range, this product is strictly tested for adherence to quality and compliance with British and EU electrostatic discharge standards.
Crimp terminal connectors are a popular choice for industrial machinery or rail and automation applications that require high resistance to temperature changes, shock and vibration.
Features and Benefits
• Threaded male and female connector set
• Supports 6mm to 10 mm outer cable diameter
• 3 gold-plated brass contacts
• Current rating of 10 A
• Voltage rating of 500 V
• Brass contact material
• Gold contact plating
• Straight body orientation
• Crimp termination
• Operating temperature range from -25.0°C to 85°C
• Adheres to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packaged in controlled environments that prevent damage due to electrostatic discharge)
• Supports 6mm to 10 mm outer cable diameter
• 3 gold-plated brass contacts
• Current rating of 10 A
• Voltage rating of 500 V
• Brass contact material
• Gold contact plating
• Straight body orientation
• Crimp termination
• Operating temperature range from -25.0°C to 85°C
• Adheres to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packaged in controlled environments that prevent damage due to electrostatic discharge)
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Note
This product may be provided in an all-black or black and blue variant
