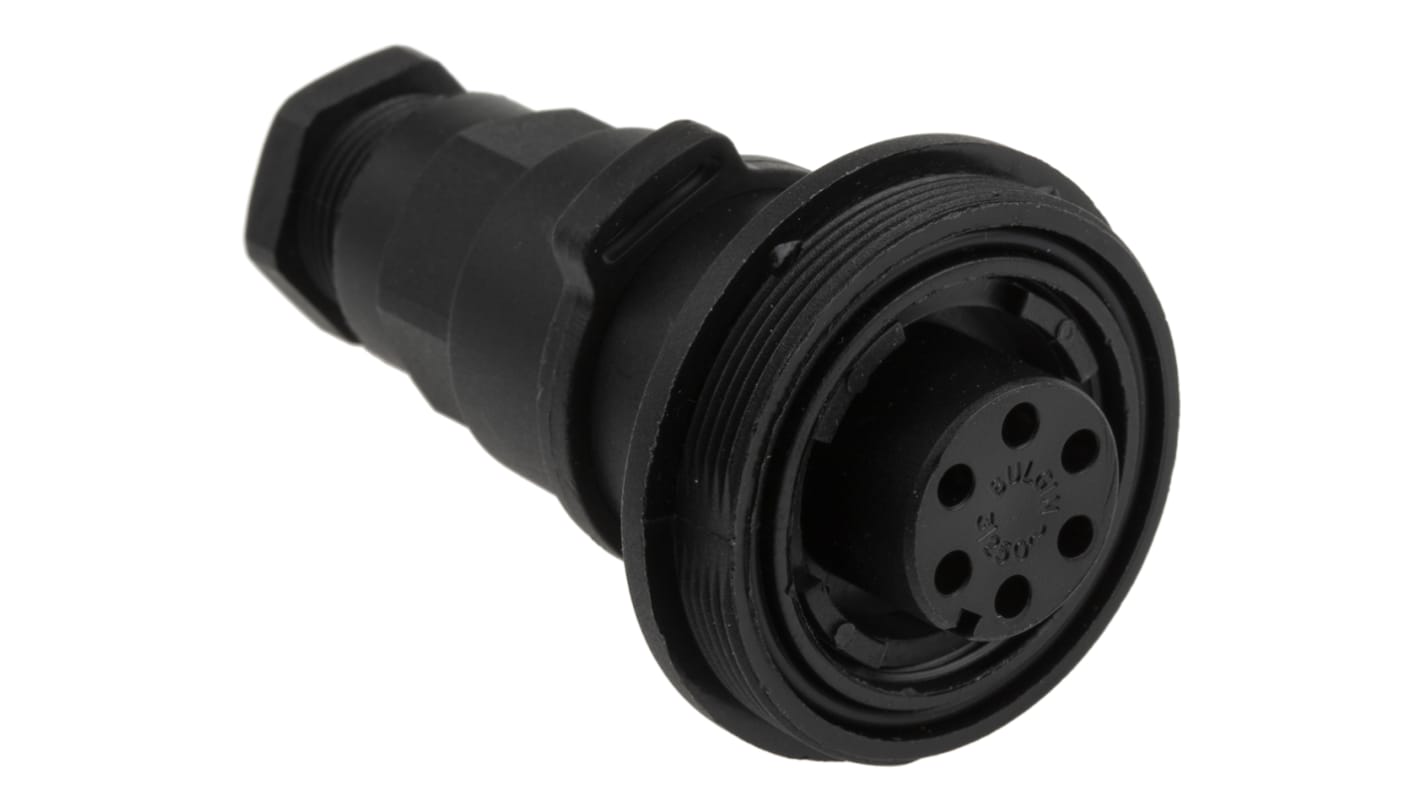

The Bulgin Buccaneer series 6-poles female circular waterproof in-line cable connector has a socket type connection. This connector has a voltage rating of 277VAC/DC and current rating is up to 3A per contact. This connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.

The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant against particle ingresses such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.

• Screw termination


• Straight body orientation


• Cable acceptance ranges between 6mm and 8mm


• Easy assembly, no special tools required


• Insulation resistance is greater than 104Mohm


• Operation temperature ranges between -20°C and 70°C


• Positive locking keyways


• Shell size is 38mm


• Unshielded


• Waterproof to a maximum depth of 1.5 metres for up to 30 minutes


• Dustproof


• Compact design

• Electrical equipment


• Industrial automation


• Power management
