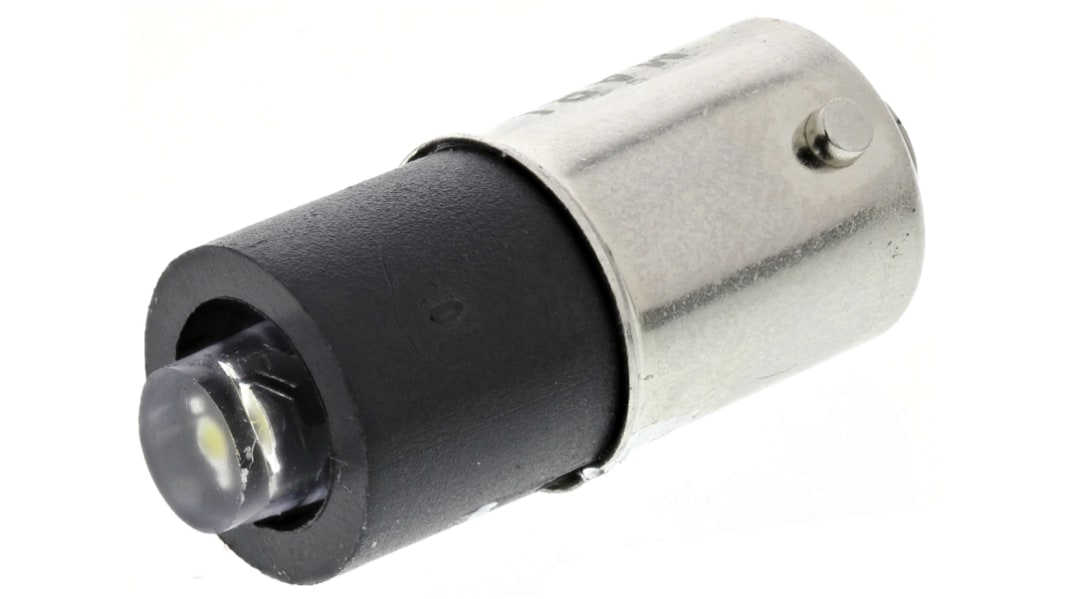

Marl White LED Indicator Lamp, 24 → 28V dc, BA9s Base, 4.9mm Diameter, 750 → 1050mcd
- RS Stock No.:
- 283-0112
- Mfr. Part No.:
- 215-997-23-38
- Brand:
- Marl
Bulk discount available
Subtotal (1 unit)*
£9.46
(exc. VAT)
£11.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £9.46 |
25 - 49 | £8.53 |
50 - 99 | £8.04 |
100 - 249 | £7.10 |
250 + | £6.65 |
*price indicative
- RS Stock No.:
- 283-0112
- Mfr. Part No.:
- 215-997-23-38
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Marl | |
Voltage Rating | 24 → 28V dc | |
Light Output Colour | White | |
Lamp Type | LED | |
Intensity | 750 → 1050mcd | |
Lamp Base | BA9s | |
Chip Type | Single Chip | |
Diameter | 4.9mm | |
Length | 26mm | |
Viewing Angle | 120 ° | |
Current Rating | 20mA | |
Life Hours | 100000h | |
Select all | ||
---|---|---|
Brand Marl | ||
Voltage Rating 24 → 28V dc | ||
Light Output Colour White | ||
Lamp Type LED | ||
Intensity 750 → 1050mcd | ||
Lamp Base BA9s | ||
Chip Type Single Chip | ||
Diameter 4.9mm | ||
Length 26mm | ||
Viewing Angle 120 ° | ||
Current Rating 20mA | ||
Life Hours 100000h | ||
- COO (Country of Origin):
- GB
T3 BA9s MBC Ultra-Bright LEDs
Integral resistor allows direct connection to either 12, 24, 28, 60 or 110Vdc supplies
Note
These LEDs should only be used with suitably rated lampholders. Live parts should be inaccessible when in use. 110Vac LEDs cannot be used with a dropper resistor on 230Vac

MARL, Single Chip LEDs
A series of ultra-bright, sunlight-readable, water-clear LEDs suitable for a variety of applications. Specially manufactured lens provides a very wide viewing angle and high intensity output. Intensities are stated at the following viewing angles for the LEDs: Red 30°, Green 15°, Yellow 16°, Blue 15°, White 45°.
