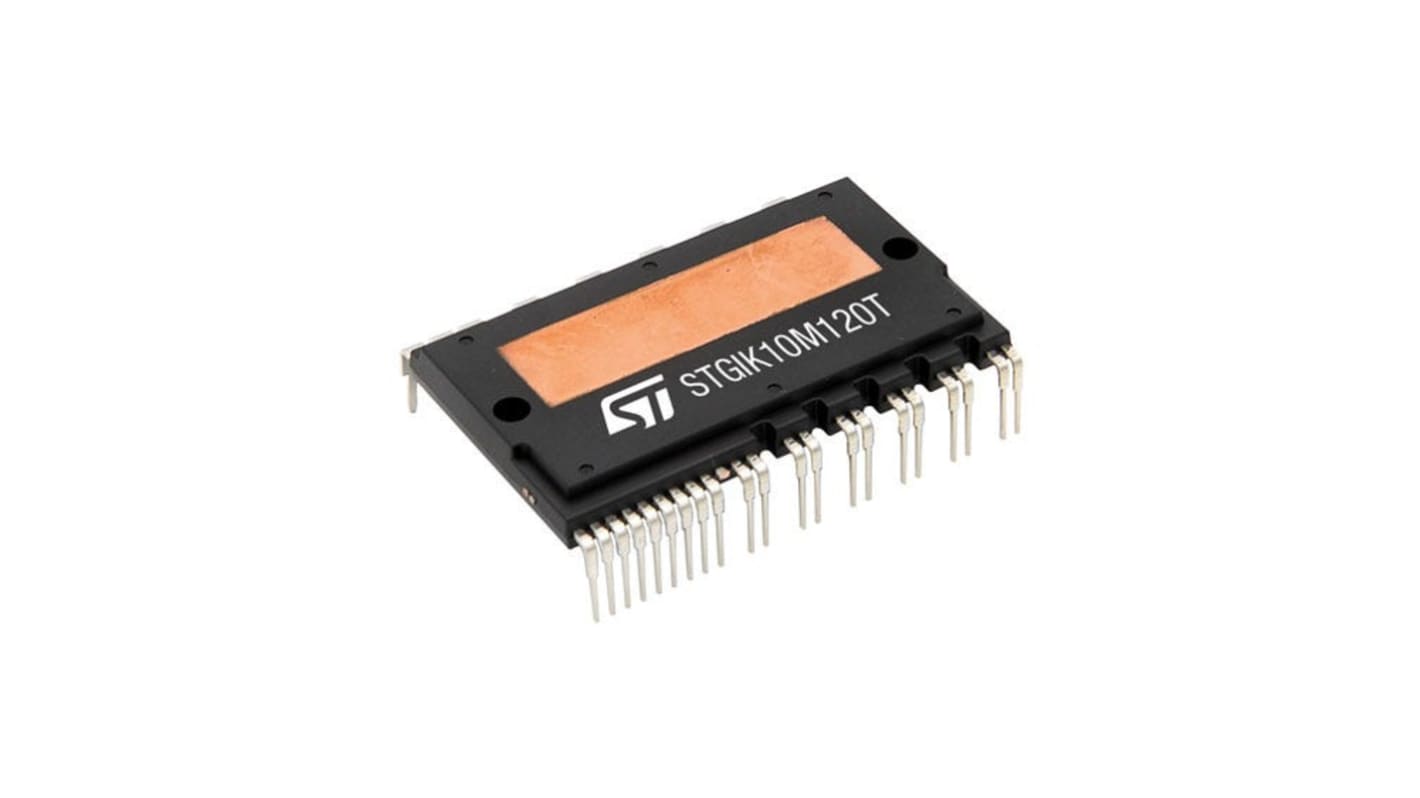

STMicroelectronics STGIK10M120T, P-Channel 3 Phase Smart Power Module, 10 A 1200 V, 30-Pin SDIPHP-30L, Through Hole
- RS Stock No.:
- 275-1343
- Mfr. Part No.:
- STGIK10M120T
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 9 units)*
£307.287
(exc. VAT)
£368.748
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
9 - 9 | £34.143 | £307.29 |
18 + | £32.231 | £290.08 |
*price indicative
- RS Stock No.:
- 275-1343
- Mfr. Part No.:
- STGIK10M120T
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Continuous Collector Current | 10 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Maximum Power Dissipation | 125 W | |
Configuration | 3 Phase | |
Package Type | SDIPHP-30L | |
Mounting Type | Through Hole | |
Channel Type | P | |
Pin Count | 30 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 10 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Power Dissipation 125 W | ||
Configuration 3 Phase | ||
Package Type SDIPHP-30L | ||
Mounting Type Through Hole | ||
Channel Type P | ||
Pin Count 30 | ||
- COO (Country of Origin):
- JP
The STMicroelectronics intelligent power module is part of the high power SLLIMM (small low-loss intelligent molded module) family and provides a compact, high-performance AC motor drive in a simple, rugged design. It combines driver control with improved short-circuit rugged 1200 V trench gate field-stop IGBTs, resulting ideal for 3-phase inverters motor drives.
Under voltage lockout of gate drivers
Built in bootstrap diodes
Short circuit protection
Separate open emitter outputs
Comparator for fault protection
Built in bootstrap diodes
Short circuit protection
Separate open emitter outputs
Comparator for fault protection
