- RS Stock No.:
- 202-4067
- Mfr. Part No.:
- NFAL5065L4BT
- Brand:
- onsemi
Available to back order for despatch 24/10/2024
Added
Price Each
£44.10
(exc. VAT)
£52.92
(inc. VAT)
Units | Per unit |
1 + | £44.10 |
- RS Stock No.:
- 202-4067
- Mfr. Part No.:
- NFAL5065L4BT
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details

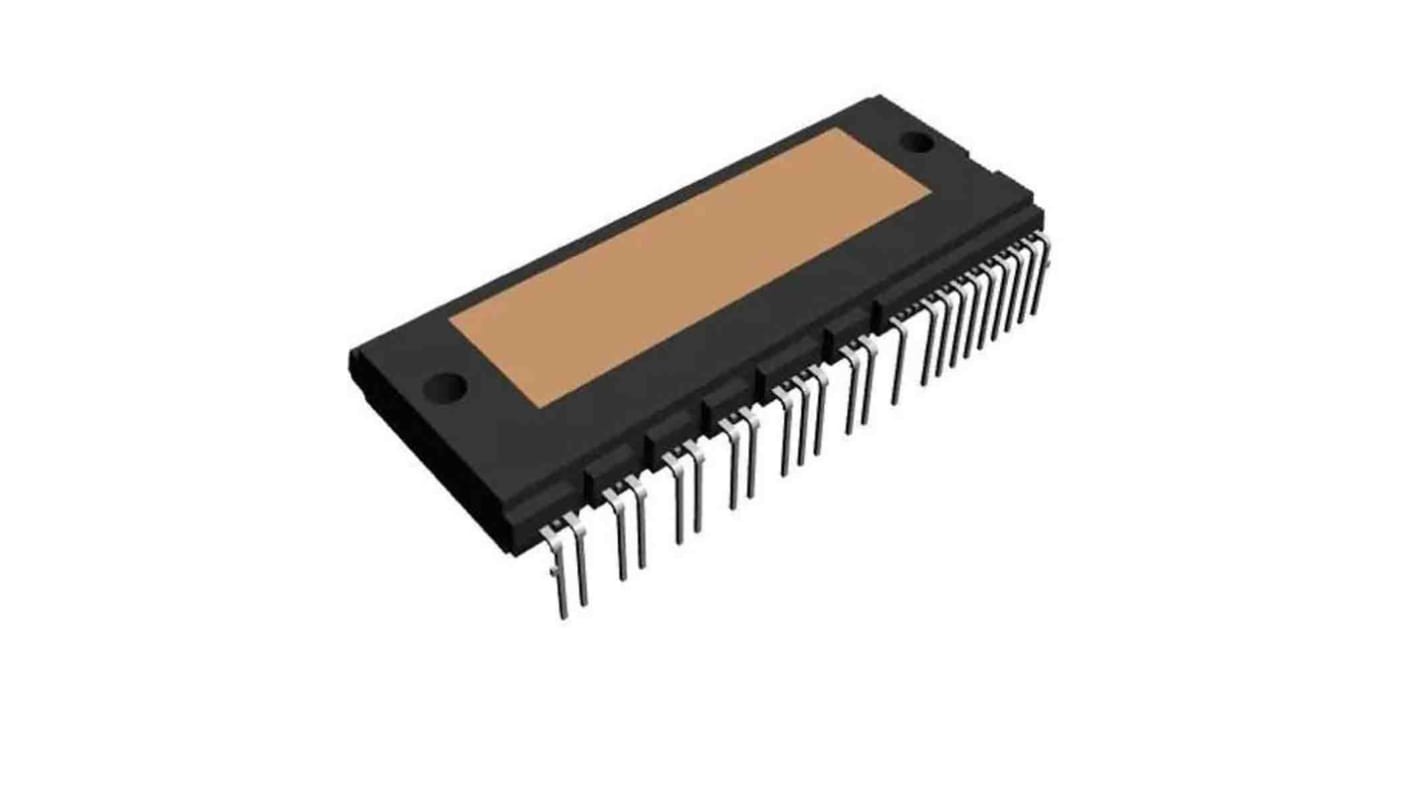

The ON Semiconductor NFAL5065L4BT is a smart power module providing a fully-featured, high-performance inverter output stage for AC induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features.
Built-in high-speed HVIC
Built-In NTC thermistor for temperature monitoring and management
Built-In NTC thermistor for temperature monitoring and management
Specifications
Attribute | Value |
---|---|
Maximum Continuous Collector Current | 50 A |
Maximum Collector Emitter Voltage | 650 V |
Maximum Gate Emitter Voltage | 15V |
Number of Transistors | 6 |
Package Type | SPM49-CAB |
Configuration | 3 Phase |
Mounting Type | Through Hole |
Channel Type | N |
