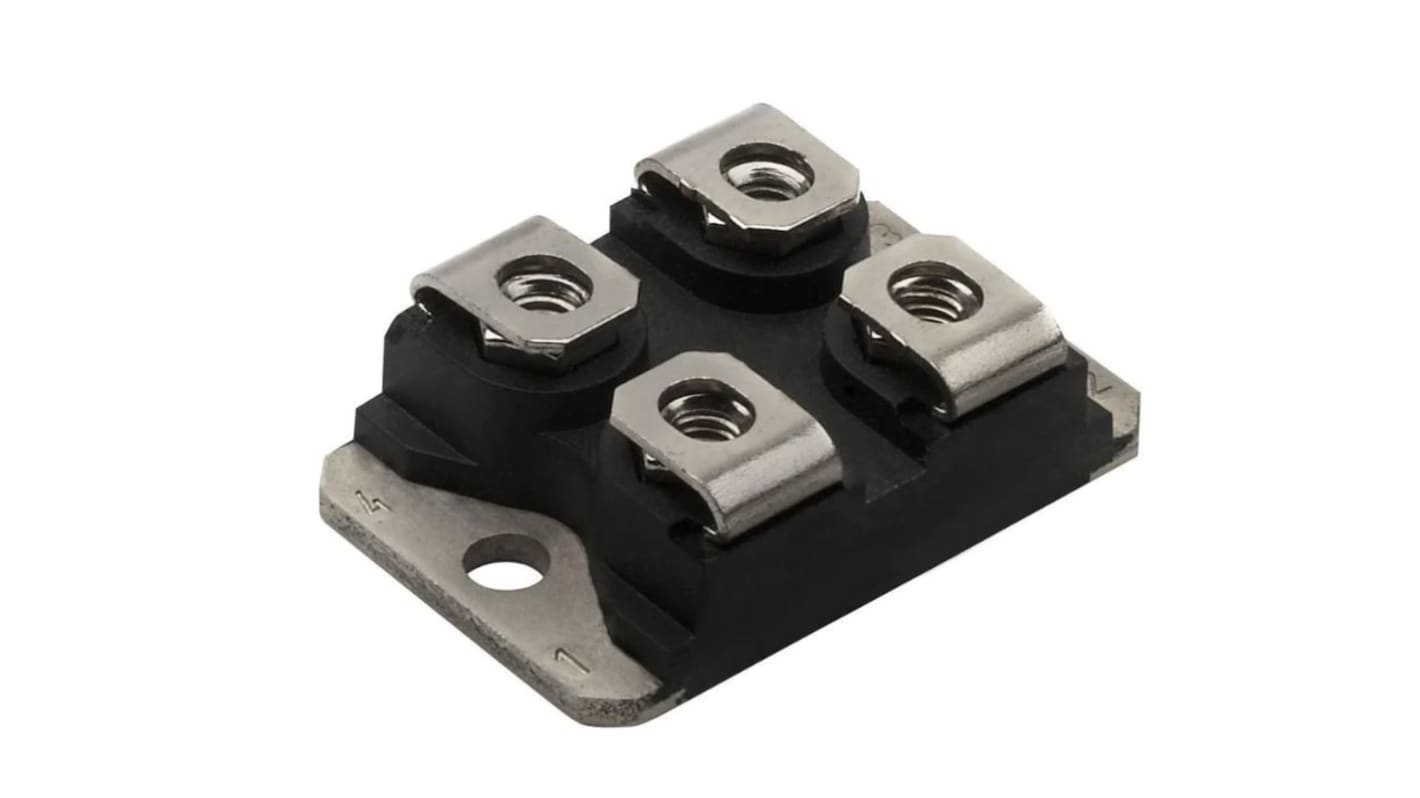

Vishay VS-GT75LA60UF, Type N-Channel Single IGBT, 81 A 600 V, 4-Pin SOT-227, Panel

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£27.54

(exc. VAT)

£33.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 157 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£27.54
5 +£25.78

*price indicative

Packaging Options:
RS Stock No.:
274-1341
Mfr. Part No.:
VS-GT75LA60UF
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Maximum Continuous Collector Current Ic

81A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

600V

Number of Transistors

1

Maximum Power Dissipation Pd

231W

Configuration

Single

Package Type

SOT-227

Mount Type

Panel

Channel Type

Type N

Pin Count

4

Maximum Gate Emitter Voltage VGEO

±20 V

Maximum Collector Emitter Saturation Voltage VceSAT

2.26V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Standards/Approvals

UL E78996

Height

12.3mm

Length

38.3mm

Width

30.5 mm

Automotive Standard

No

The Vishay IGBT module is designed for increased operating efficiency for power conversion in UPS, SMPS, TIG welding and induction heating. It is easy to assemble due to its direct surface mount package. It is plug in compatible with other SOT 227 packages.

Fully isolated package

Very low internal inductance

Industry standard outline

UL approved file E78996
