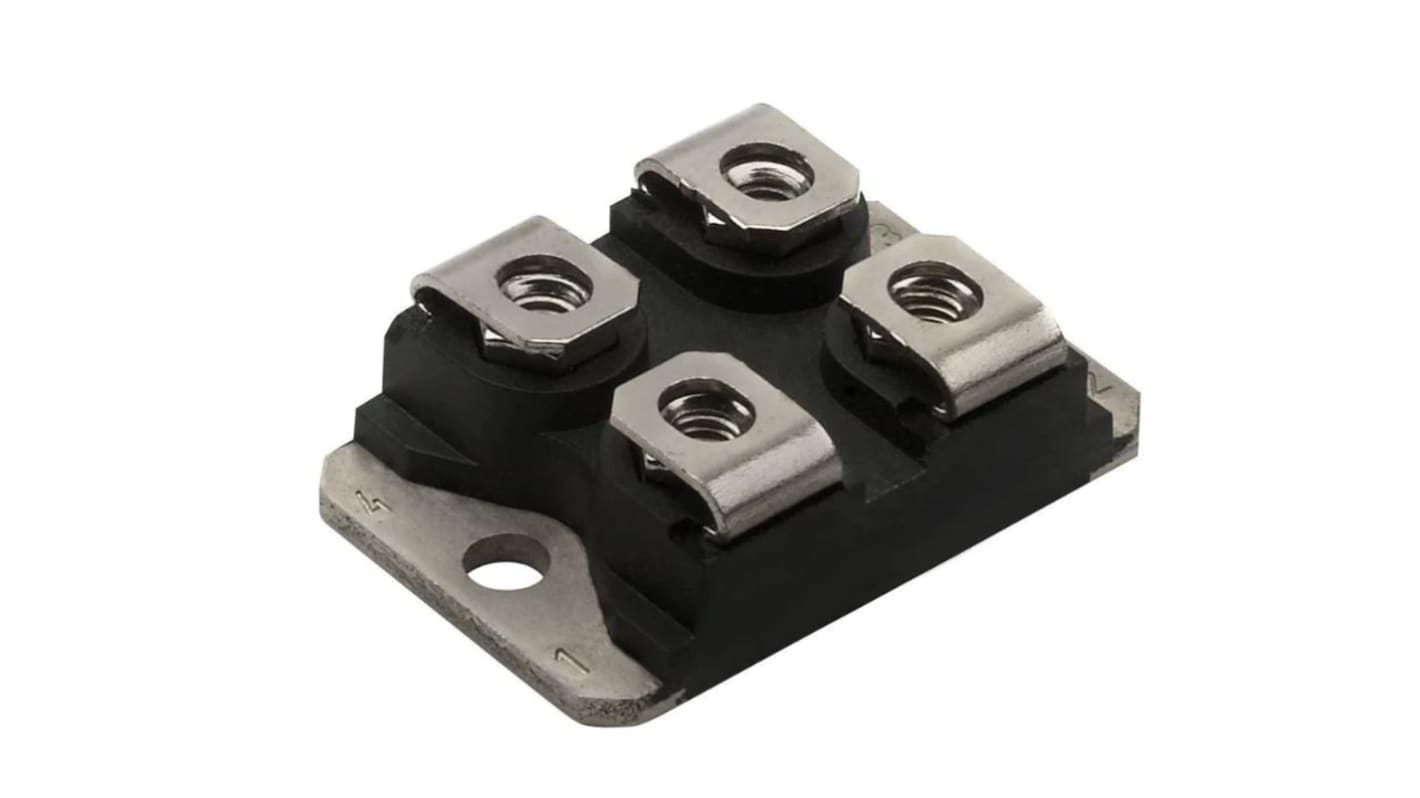

Vishay VS-GT80DA120U Single IGBT, 139 A 1200 V, 4-Pin SOT-227, Panel Mount
- RS Stock No.:
- 274-1344
- Mfr. Part No.:
- VS-GT80DA120U
- Brand:
- Vishay
Save 4% when you buy 100 units
Subtotal (1 tube of 10 units)*
£254.61
(exc. VAT)
£305.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
- Plus 999,999,870 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
10 - 40 | £25.461 | £254.61 |
50 - 90 | £24.799 | £247.99 |
100 + | £24.188 | £241.88 |
*price indicative
- RS Stock No.:
- 274-1344
- Mfr. Part No.:
- VS-GT80DA120U
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Maximum Continuous Collector Current | 139 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Maximum Gate Emitter Voltage | ± 20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 658 W | |
Configuration | Single | |
Package Type | SOT-227 | |
Mounting Type | Panel Mount | |
Channel Type | N | |
Pin Count | 4 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Maximum Continuous Collector Current 139 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ± 20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 658 W | ||
Configuration Single | ||
Package Type SOT-227 | ||
Mounting Type Panel Mount | ||
Channel Type N | ||
Pin Count 4 | ||
The Vishay IGBT module is designed for increased operating efficiency for power conversion in UPS, SMPS, TIG welding and induction heating. It is easy to assemble due to its direct surface mount package. It is plug in compatible with other SOT 227 packages.
Fully isolated package
Very low internal inductance
Industry standard outline
UL approved file E78996
Very low internal inductance
Industry standard outline
UL approved file E78996
