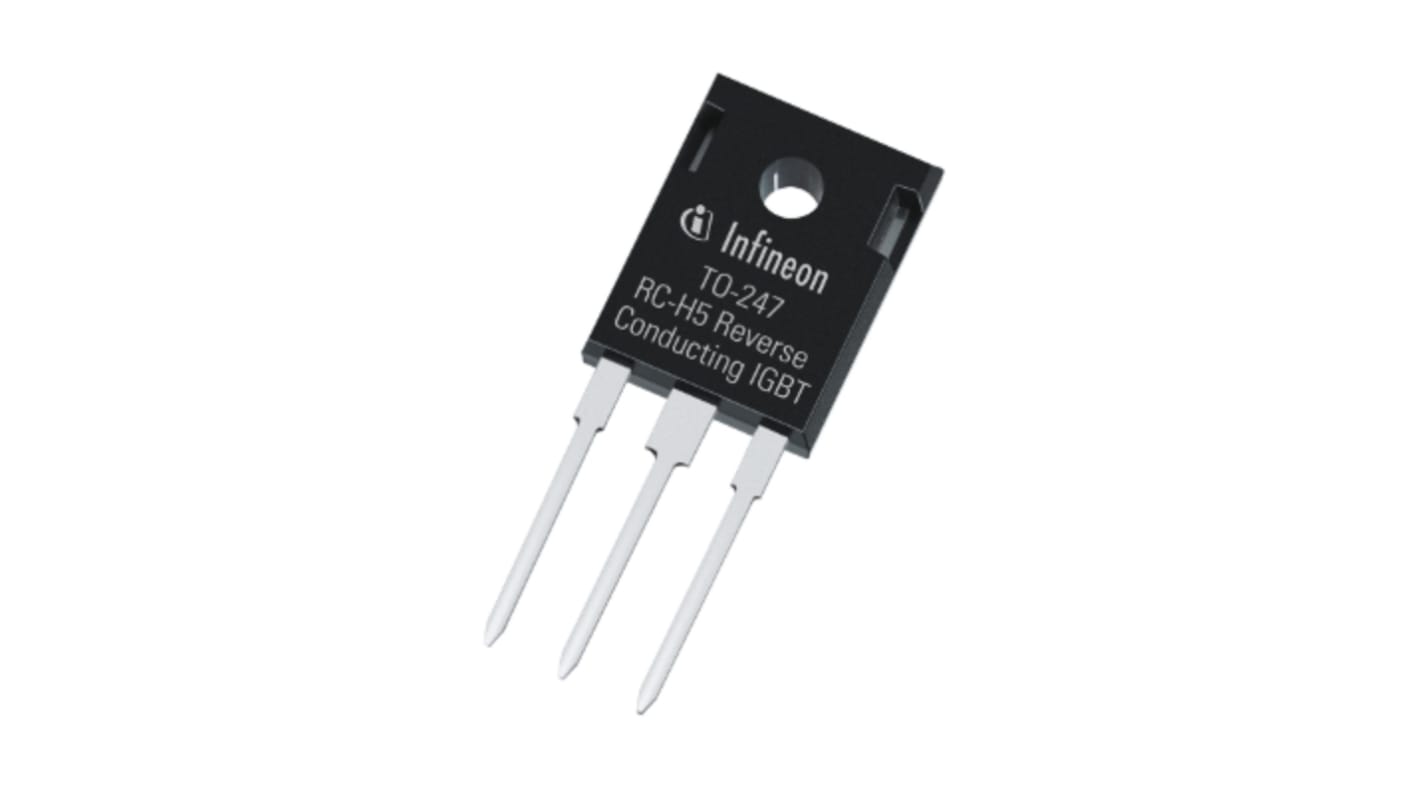

Infineon IHW20N65R5XKSA1 IGBT, 40 A 650 V, 3-Pin PG-TO247-3, Through Hole
- RS Stock No.:
- 273-7441
- Mfr. Part No.:
- IHW20N65R5XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.20
(exc. VAT)
£3.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 210 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £1.60 | £3.20 |
10 - 98 | £1.455 | £2.91 |
100 - 248 | £1.335 | £2.67 |
250 + | £1.235 | £2.47 |
*price indicative
- RS Stock No.:
- 273-7441
- Mfr. Part No.:
- IHW20N65R5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Maximum Continuous Collector Current | 40 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | +/-20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 150 W | |
Package Type | PG-TO247-3 | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 40 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage +/-20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 150 W | ||
Package Type PG-TO247-3 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
The Infineon IGBT is a reverse conducting IGBT with monolithic body diode. This IGBT has powerful monolithic reverse conducting diode with low forward voltage and qualified according to JESD022 for target applications. It has easy parallel switching capability due to positive temperature coefficient in VCEsat. This IGBT is recommended for induction cooking, inverter zed microwave ovens and resonant converters.
Low EMI
Halogen free
RoHS compliant
High ruggedness
Pb free lead plating
Stable temperature behaviour
Very low VCEsat and low Eoff
Very tight parameter distribution
Halogen free
RoHS compliant
High ruggedness
Pb free lead plating
Stable temperature behaviour
Very low VCEsat and low Eoff
Very tight parameter distribution
