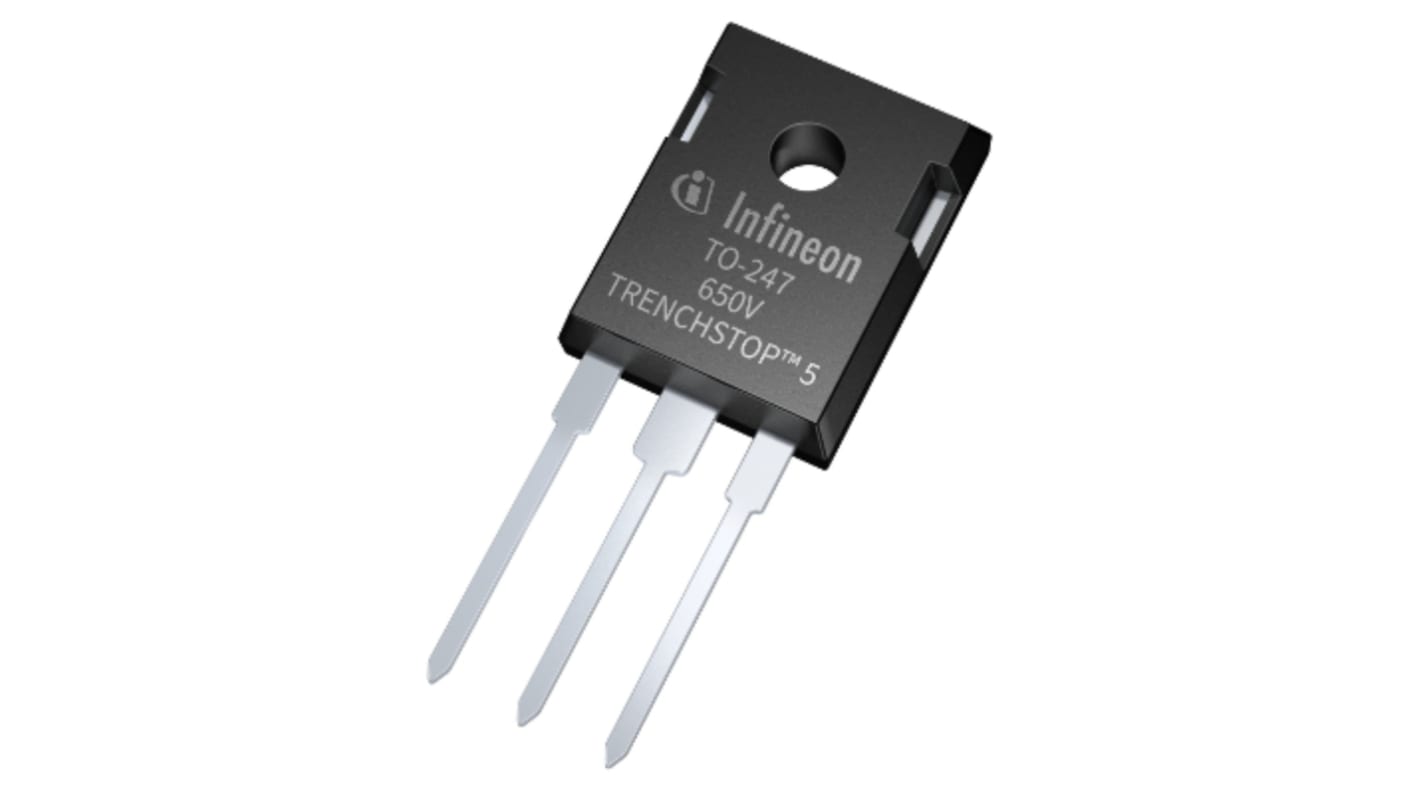

Infineon IGBT, 60 A 600 V, 3-Pin PG-TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 pack of 2 units)*

£3.25

(exc. VAT)

£3.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 132 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£1.625£3.25
10 - 98£1.48£2.96
100 - 248£1.355£2.71
250 +£1.255£2.51

*price indicative

RS Stock No.:
273-7435
Mfr. Part No.:
IGW30N60H3FKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

60A

Maximum Collector Emitter Voltage Vceo

600V

Maximum Power Dissipation Pd

187W

Package Type

PG-TO-247

Mount Type

Through Hole

Pin Count

3

Maximum Collector Emitter Saturation Voltage VceSAT

2.5V

Minimum Operating Temperature

-40°C

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Height

5.21mm

Width

16.13 mm

Series

TrenchStop

Length

21.1mm

Standards/Approvals

Pb-Free, RoHS, JEDEC

Automotive Standard

No

The Infineon IGBT is a high speed IGBT in Trench and Field stop technology. This IGBT has 175 degree Celsius maximum junction temperature and qualified according to JEDEC for target applications. This IGBT is recommended for uninterruptible power supplies, welding converters and converters with high switching frequency applications.

Low EMI

Low VCEsat

Halogen free

RoHS compliant

Pb free lead plating

Very soft and fast recovery anti parallel diode
