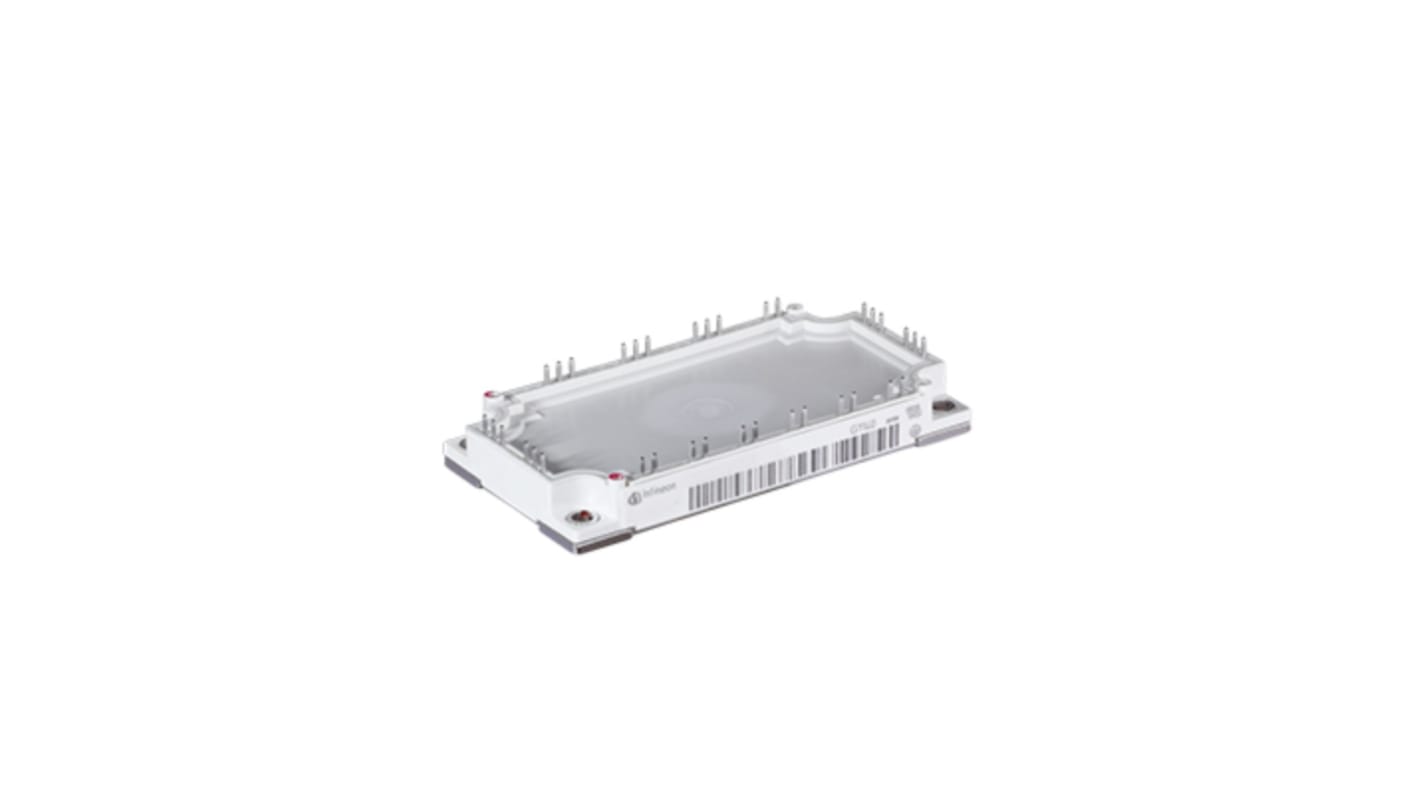

Infineon IGBT Module, 100 A 600 V Module, Panel
- RS Stock No.:
- 273-7391
- Mfr. Part No.:
- FP100R06KE3BOSA1
- Brand:
- Infineon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 273-7391
- Mfr. Part No.:
- FP100R06KE3BOSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 100A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Maximum Power Dissipation Pd | 335W | |
| Package Type | Module | |
| Mount Type | Panel | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 20.5mm | |
| Length | 122mm | |
| Width | 62 mm | |
| Standards/Approvals | IEC61140, EN61140 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 100A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Maximum Power Dissipation Pd 335W | ||
Package Type Module | ||
Mount Type Panel | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 20.5mm | ||
Length 122mm | ||
Width 62 mm | ||
Standards/Approvals IEC61140, EN61140 | ||
Automotive Standard No | ||
The Infineon IGBT module has with fast Trench and Field stop IGBT3, emitter controlled 3 diode and NTC. This IGBT module has 600V collector emitter voltage and 100A continuous DC collector current. It has copper base plate for optimized heat spread.
Highest reliability
High power density
Thermal resistance
Low switching losses
High switching frequency
