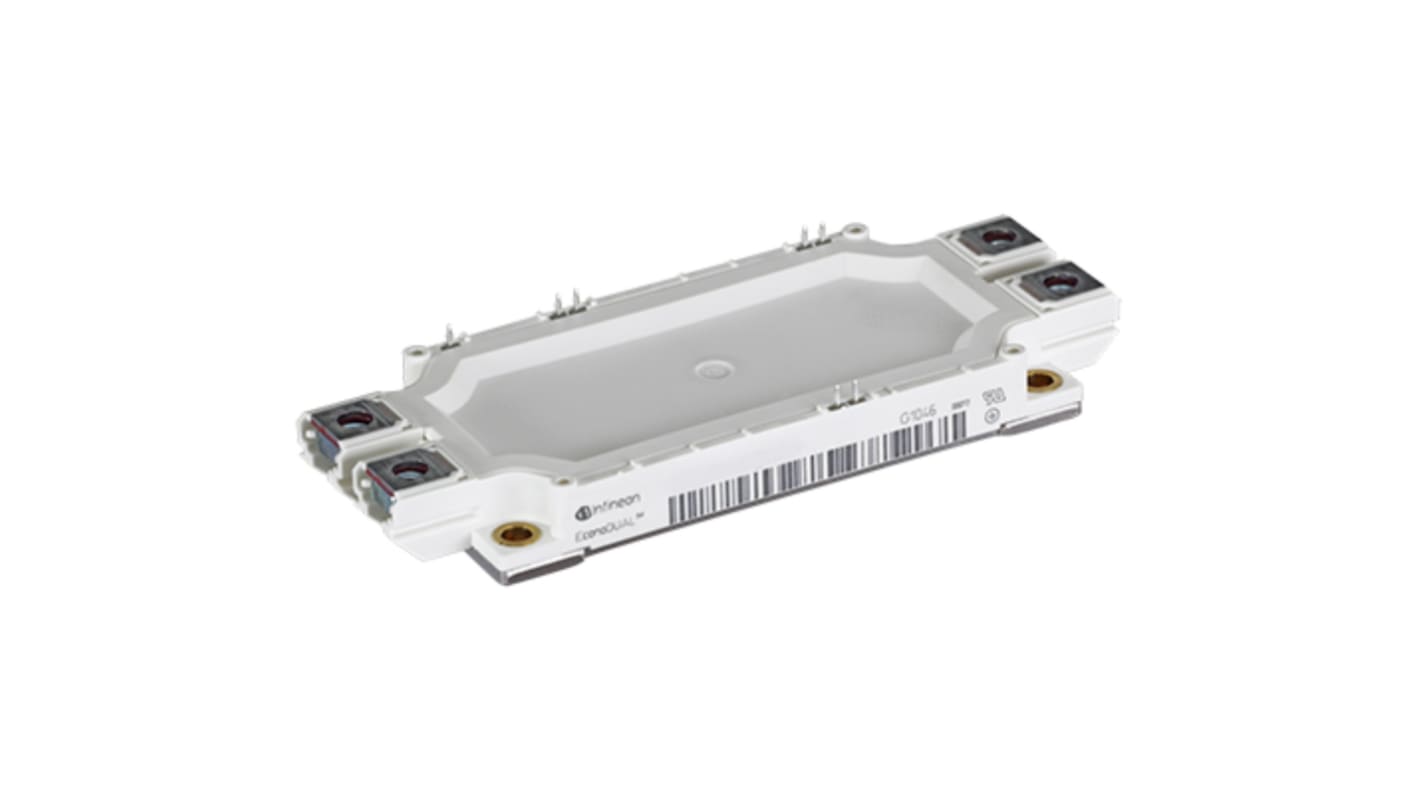

Infineon IGBT Module, 240 A 1200 V Module, Panel
- RS Stock No.:
- 273-7373
- Mfr. Part No.:
- FF450R07ME4B11BPSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£80.89
(exc. VAT)
£97.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £80.89 |
| 5 - 9 | £79.28 |
| 10 - 99 | £73.55 |
| 100 - 249 | £70.69 |
| 250 + | £68.93 |
*price indicative
- RS Stock No.:
- 273-7373
- Mfr. Part No.:
- FF450R07ME4B11BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 240A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 1.1kW | |
| Package Type | Module | |
| Mount Type | Panel | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.95V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | UL (E83335) | |
| Length | 152mm | |
| Height | 20.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 240A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 1.1kW | ||
Package Type Module | ||
Mount Type Panel | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.95V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals UL (E83335) | ||
Length 152mm | ||
Height 20.5mm | ||
Automotive Standard No | ||
The Infineon IGBT module has high short circuit capability and self limiting short circuit current. This IGBT module features a increased blocking voltage capability to 650V, increased DC link voltage, rugged self acting Press FIT assembly and integrated NTC temperature sensor.
Copper base plate
Isolated base plate
High current density
High power density
High surge current capability
Press FIT contact technology
