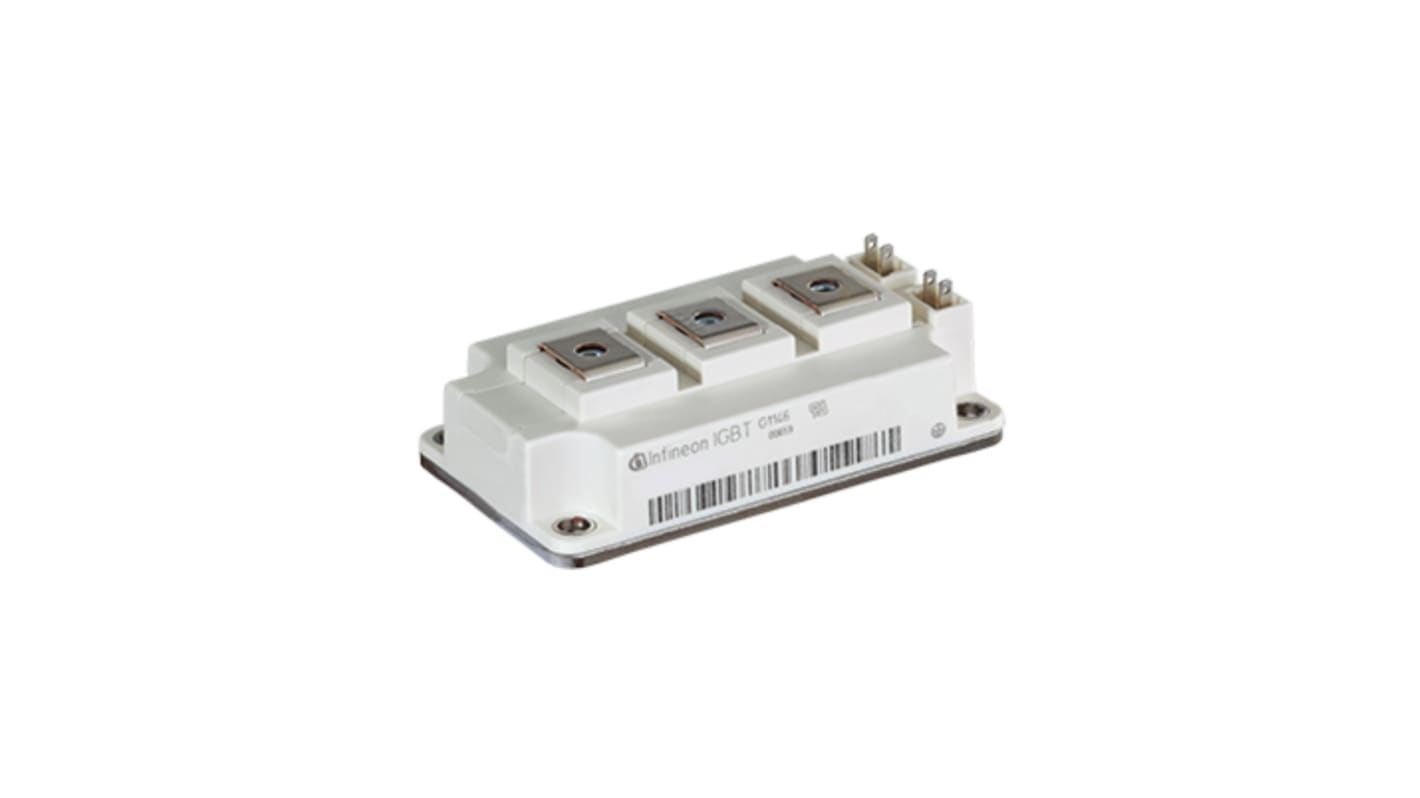

Infineon FD200R12KE3HOSA1 IGBT Module, 295 A 1200 V Module, Panel Mount
- RS Stock No.:
- 273-7368
- Mfr. Part No.:
- FD200R12KE3HOSA1
- Brand:
- Infineon
Available to back order for despatch 08/05/2024
Added
Price Each (In a Tray of 10)
£129.171
(exc. VAT)
£155.005
(inc. VAT)
| Units | Per unit | Per Tray* |
| 10 - 90 | £129.171 | £1,291.71 |
| 100 + | £118.408 | £1,184.08 |
| *price indicative | ||
- RS Stock No.:
- 273-7368
- Mfr. Part No.:
- FD200R12KE3HOSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon IGBT module is a 62 mm chopper IGBT modules. This IGBT module has 1200V collector emitter voltage and 200A continuous DC collector current. It is a superior solution for frequency controlled inverter drives.
Highest reliability
Thermal resistance
Optimal electrical performance
Thermal resistance
Optimal electrical performance
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 295 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | +/-20V |
| Maximum Power Dissipation | 1.05 kW |
| Package Type | Module |
| Mounting Type | Panel Mount |
