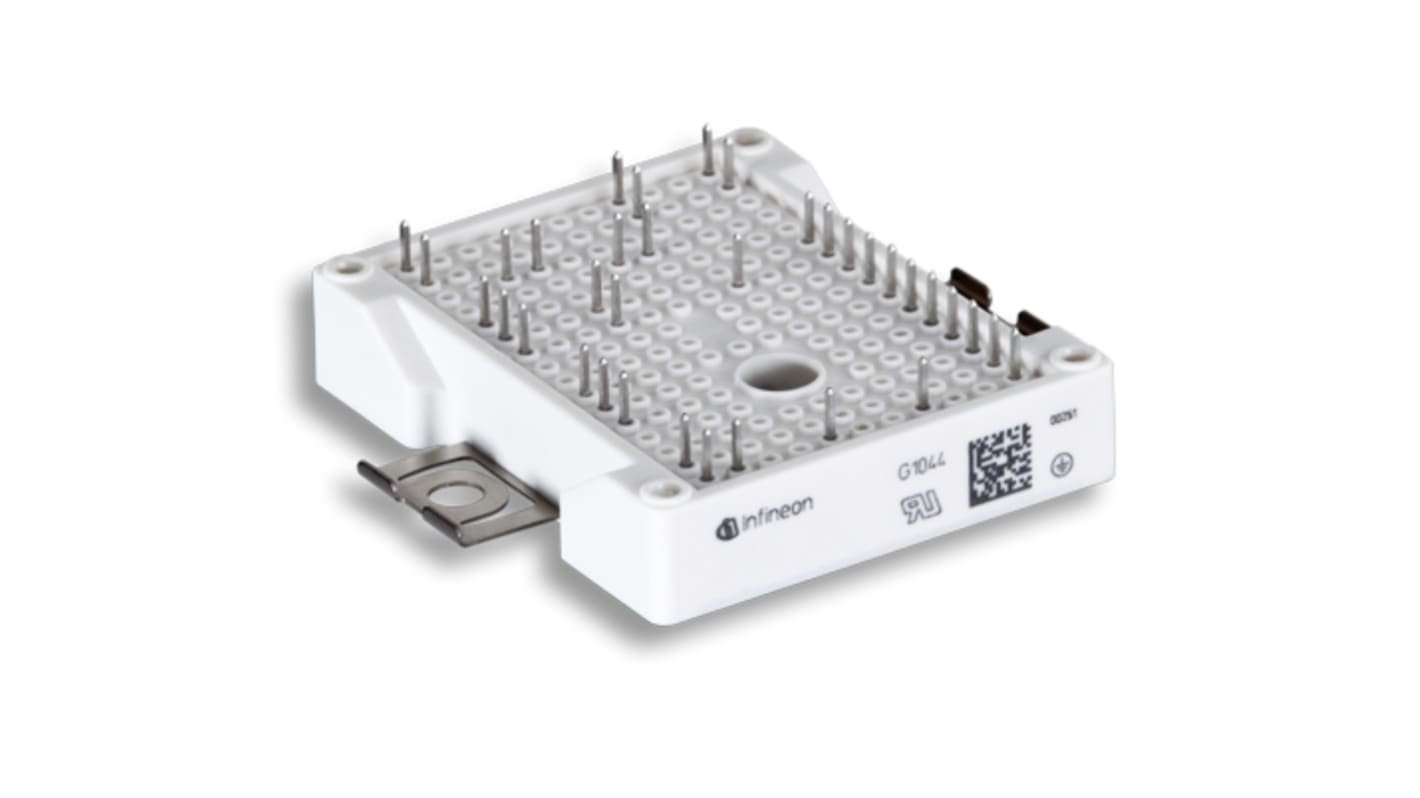

Infineon F3L150R07W2E3B11BOMA1 IGBT Module, 650 A 150 V, 8-Pin Module, Panel
- RS Stock No.:
- 273-7364
- Mfr. Part No.:
- F3L150R07W2E3B11BOMA1
- Brand:
- Infineon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 273-7364
- Mfr. Part No.:
- F3L150R07W2E3B11BOMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 650A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 150V | |
| Maximum Power Dissipation Pd | 335W | |
| Package Type | Module | |
| Mount Type | Panel | |
| Pin Count | 8 | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 16.4mm | |
| Standards/Approvals | UL (E83335) | |
| Width | 56.7 mm | |
| Length | 62.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 650A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 150V | ||
Maximum Power Dissipation Pd 335W | ||
Package Type Module | ||
Mount Type Panel | ||
Pin Count 8 | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 16.4mm | ||
Standards/Approvals UL (E83335) | ||
Width 56.7 mm | ||
Length 62.4mm | ||
Automotive Standard No | ||
The Infineon IGBT module has 650 V VCES, 150 A continuous DC collector current 3 level phase leg phase leg IGBT module with TRENCHSTOP IGBT3, Emitter Controlled 3 diode, NTC and Press FIT Contact Technology. This IGBT module increased blocking voltage capability to 650V and available with Al2O3 substrate with low thermal resistance.
Low VCEsat
Compact design
Rugged mounting
Low inductive design
Low Switching Losses
