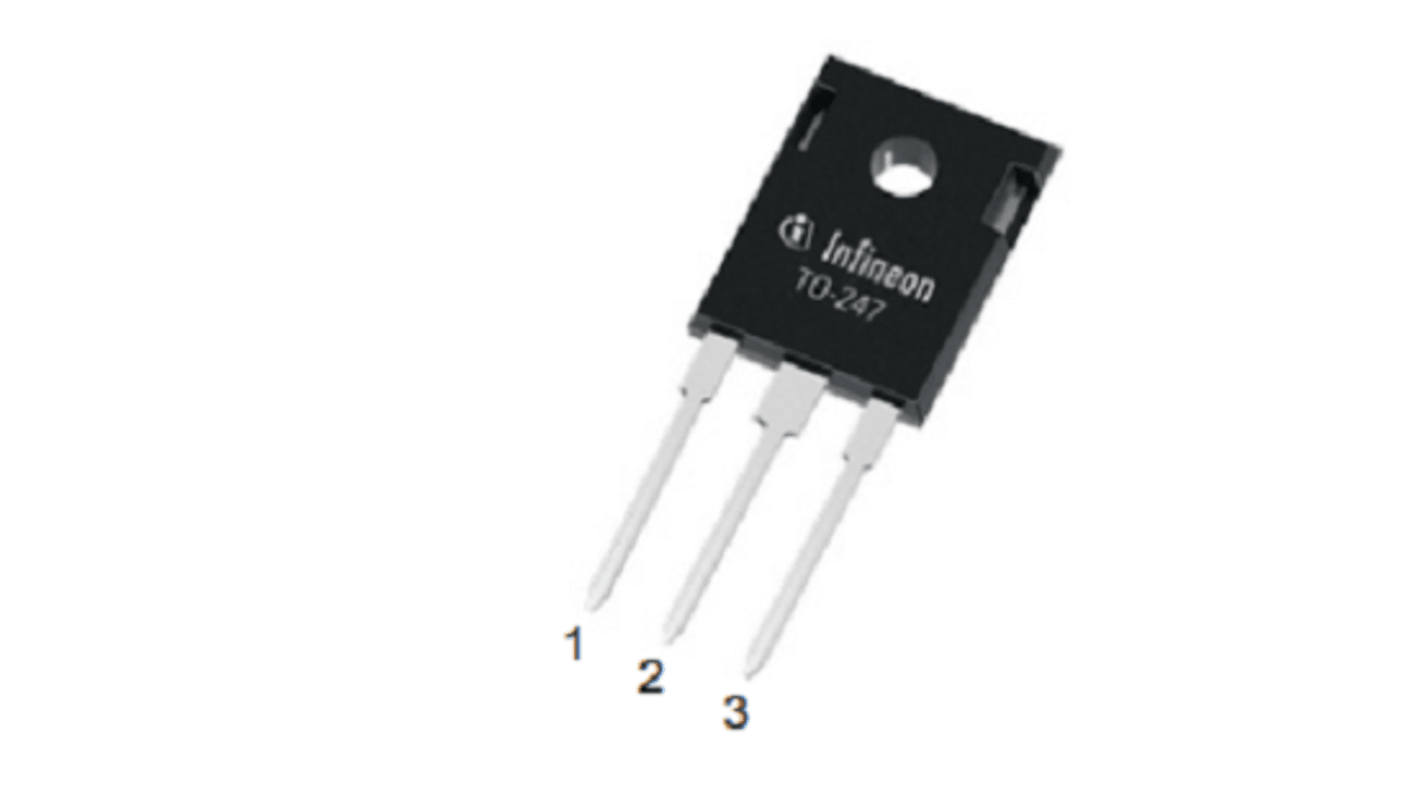

Infineon IKW75N65SS5XKSA1 Single IGBT Transistor Module, 75 A 650 V PG-TO247-3

RS Stock No.:: 249-6947
Mfr. Part No.:: IKW75N65SS5XKSA1
Brand:: Infineon

Infineon IKW75N65SS5XKSA1 Single IGBT Transistor Module, 75 A 650 V PG-TO247-3

180 In stock - FREE next working day delivery available

Price Each (In a Tube of 30)

£9.54

(exc. VAT)

£11.45

(inc. VAT)

Units	Per unit	Per Tube*
30 - 30	£9.54	£286.20
60 - 60	£9.063	£271.89
90 +	£8.491	£254.73

*price indicative

RS Stock No.:: 249-6947
Mfr. Part No.:: IKW75N65SS5XKSA1
Brand:: Infineon

Technical Reference

Datasheet - IKW75N65SS5XKSA1

Legislation and Compliance

Product Details

The Infineon TRENCHSTOP 5S5 IGBT co-packed with full-rated 6th generation cool SiCTMS schottky barrier diode. Ultra-low switching losses due to the combination of TRENCHSTOPTM5 and CoolSiCTM technology. Benchmark efficiency in hard switching topologies. Plug-and-play replacement of pure silicon devices. Maximum junction temperature is 175°C

Industrial Power Supplies-Industrial SMPS
Energy Generation
Solar String Inverter
Energy Distribution -Energy Storage

Specifications

Attribute	Value
Maximum Continuous Collector Current	75 A
Maximum Collector Emitter Voltage	650 V
Maximum Gate Emitter Voltage	15V
Number of Transistors	2
Maximum Power Dissipation	395 W
Configuration	Single
Package Type	PG-TO247-3
