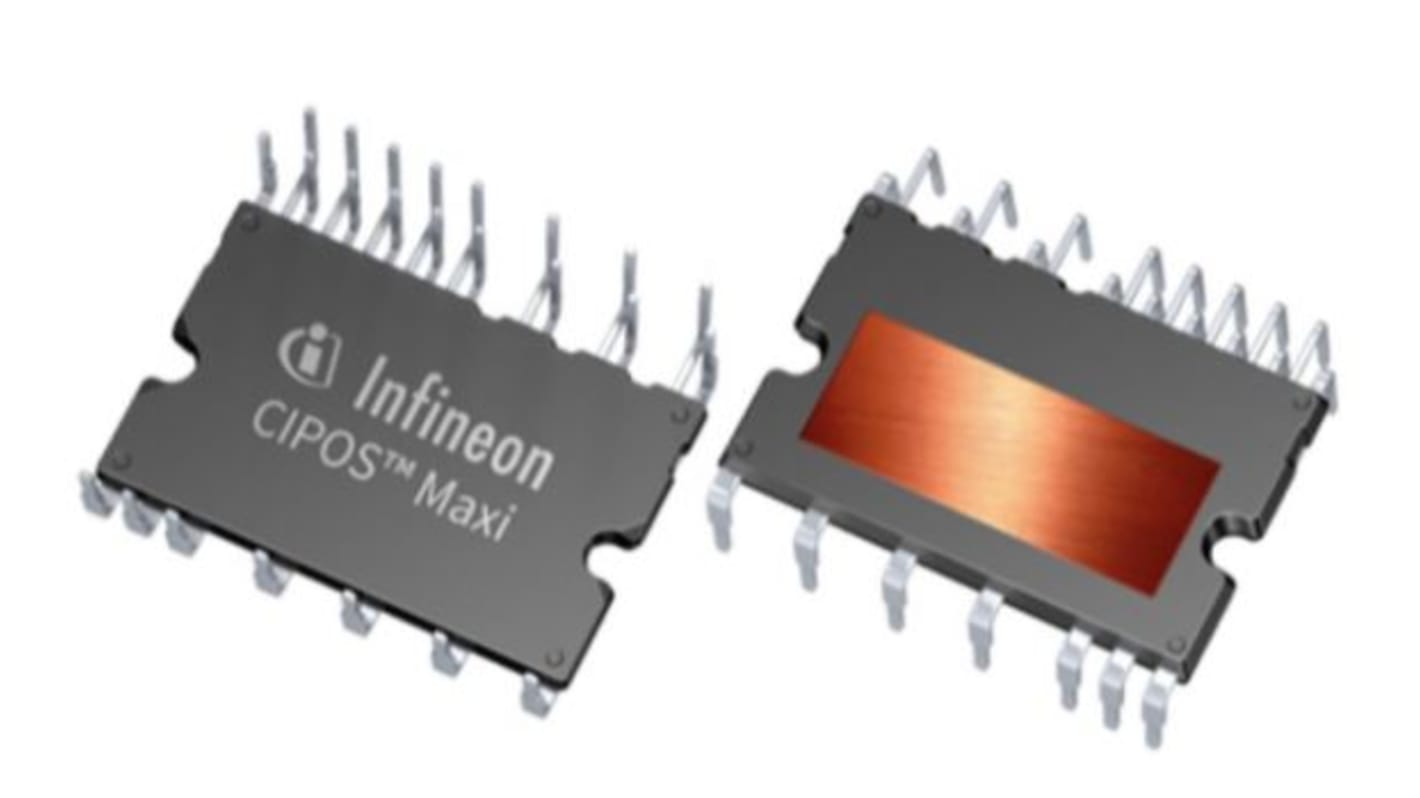

Infineon IM818LCCXKMA1 Smart Power Module, 20 A 3.21 V, 18-Pin DIP 36 x 23D
- RS Stock No.:
- 233-3499
- Mfr. Part No.:
- IM818LCCXKMA1
- Brand:
- Infineon
Available to back order for despatch 10/07/2025
Price Each (In a Tube of 280)
£23.13
(exc. VAT)
£27.76
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 280 + | £23.13 | £6,476.40 |
*price indicative
- RS Stock No.:
- 233-3499
- Mfr. Part No.:
- IM818LCCXKMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon three-phase IGBT based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC outdoor fan, active filters, and etc.
Excellent thermal performance with DCB substrate
Suitable for space constrained industrial applications through ultra compact footprint
Suitable for space constrained industrial applications through ultra compact footprint
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 20 A |
| Maximum Collector Emitter Voltage | 3.21 V |
| Number of Transistors | 6 |
| Maximum Power Dissipation | 156 W |
| Package Type | DIP 36 x 23D |
| Channel Type | N |
| Pin Count | 18 |
| Transistor Configuration | Series |
