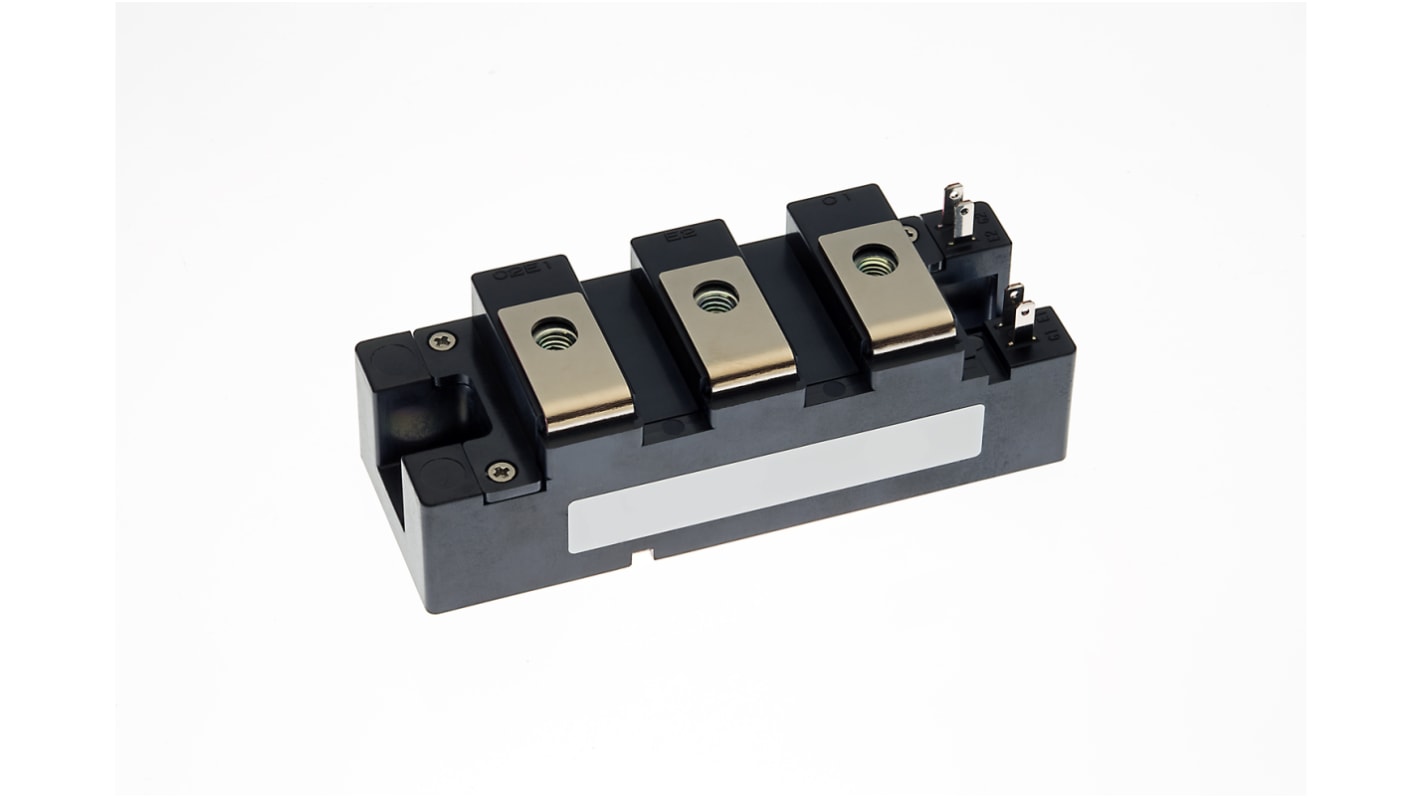

Mitsubishi Electric CM150DY-13T#300G Dual IGBT Module, 150 A 600 V, 7-Pin 94 x 34 mm, Surface
- RS Stock No.:
- 233-2429
- Mfr. Part No.:
- CM150DY-13T#300G
- Brand:
- Mitsubishi Electric
Subtotal (1 box of 10 units)*
£882.35
(exc. VAT)
£1,058.82
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £88.235 | £882.35 |
*price indicative
- RS Stock No.:
- 233-2429
- Mfr. Part No.:
- CM150DY-13T#300G
- Brand:
- Mitsubishi Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mitsubishi Electric | |
| Maximum Continuous Collector Current Ic | 150A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Maximum Power Dissipation Pd | 1.09kW | |
| Number of Transistors | 2 | |
| Configuration | Dual | |
| Package Type | 94 x 34 mm | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.7V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Width | 34mm | |
| Height | 30mm | |
| Length | 94mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Mitsubishi Electric | ||
Maximum Continuous Collector Current Ic 150A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Maximum Power Dissipation Pd 1.09kW | ||
Number of Transistors 2 | ||
Configuration Dual | ||
Package Type 94 x 34 mm | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.7V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Width 34mm | ||
Height 30mm | ||
Length 94mm | ||
Automotive Standard No | ||
The Mitsubishi Electric IGBT modules of the 7th generation (called T-series) maximum collector-emitter voltage is 600V and collector current is 150A.
Dual switch
Nickel-plating tab Terminal
RoHS Directive compliant
UL Recognized under UL1558
