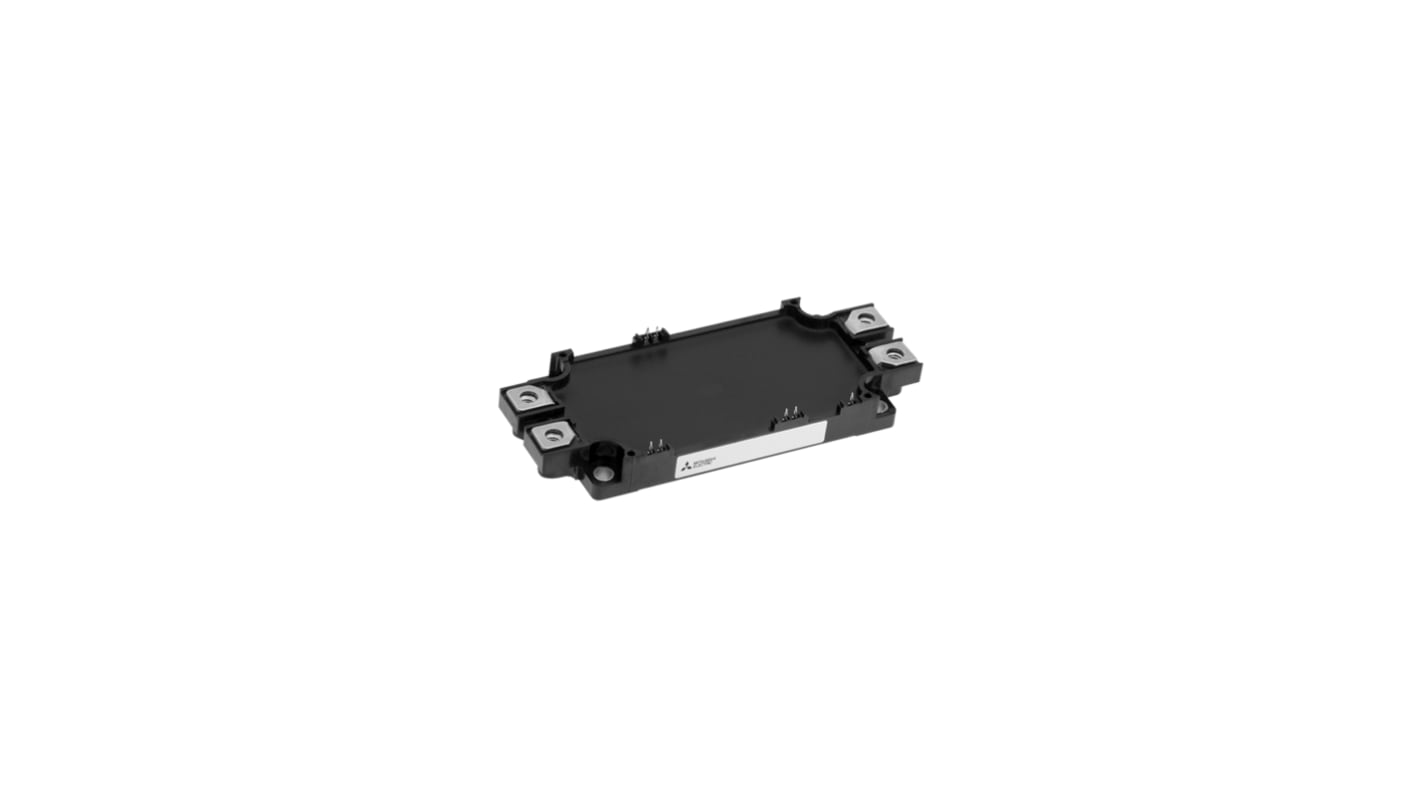

Mitsubishi Electric IGBT Module, 450 A 600 V, 11-Pin 122 x 62 mm, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£171.45

(exc. VAT)

£205.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£171.45
5 - 9£152.42
10 +£137.16

*price indicative

RS Stock No.:
233-2441
Mfr. Part No.:
CM450DX-13T#300G
Brand:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Product Type

IGBT Module

Maximum Continuous Collector Current Ic

450A

Maximum Collector Emitter Voltage Vceo

600V

Number of Transistors

2

Maximum Power Dissipation Pd

1.69kW

Package Type

122 x 62 mm

Mount Type

Through Hole

Pin Count

11

Maximum Collector Emitter Saturation Voltage VceSAT

1.8V

Maximum Gate Emitter Voltage VGEO

20 V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Length

152mm

Height

17mm

Width

62 mm

Series

CM450DX-13T

Standards/Approvals

RoHS

Automotive Standard

No

The Mitsubishi Electric IGBT modules of the 7th generation (called T-series) maximum collector-emitter voltage is 600V and collector current is 450A.

Flat base type

Copper-plating tab terminal

RoHS Directive compliant

Tin Plating pin terminal
