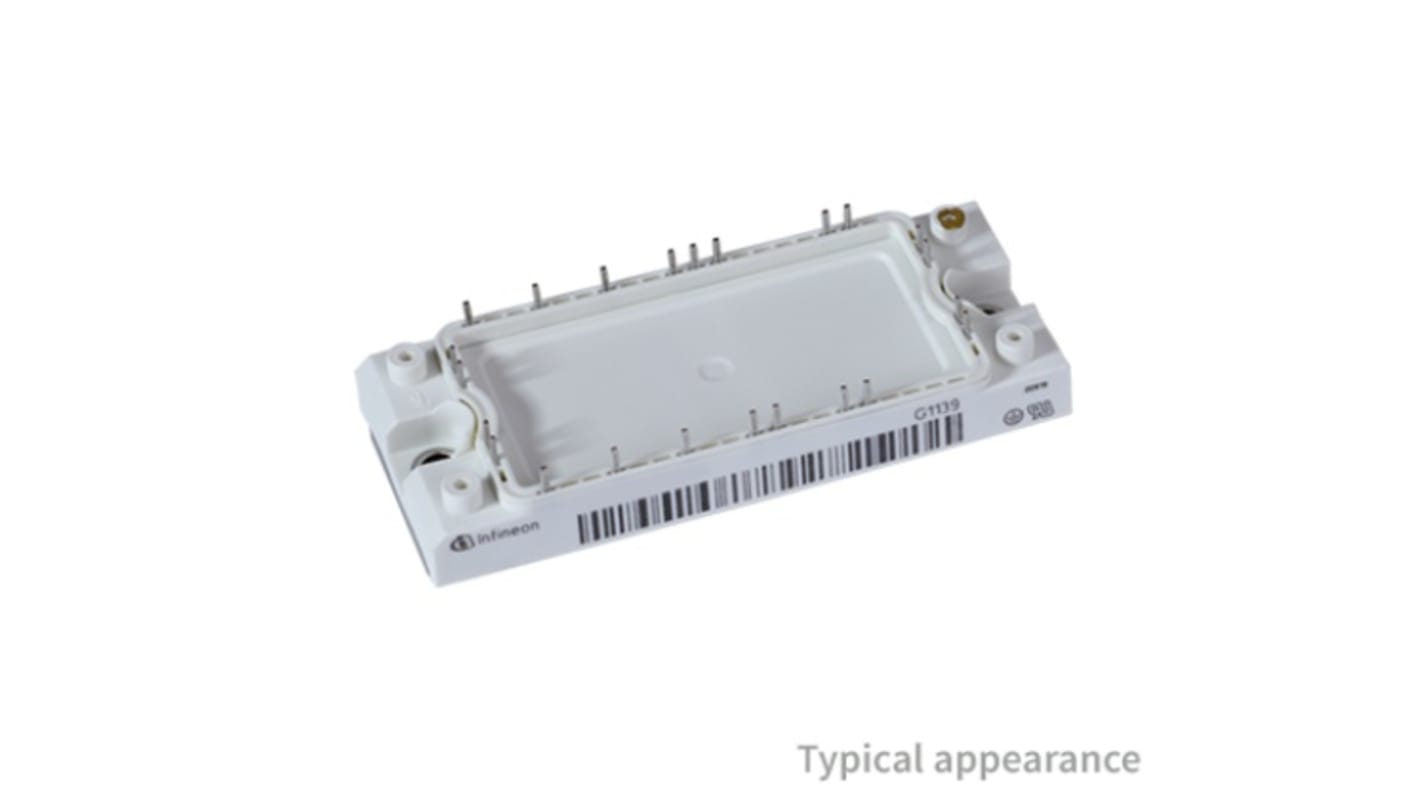

Infineon FS150R12N2T7BPSA1 Series IGBT, 150 A 1200 V, 32-Pin Module, Chassis Mount
- RS Stock No.:
- 232-6721
- Mfr. Part No.:
- FS150R12N2T7BPSA1
- Brand:
- Infineon
Subtotal (1 tray of 10 units)*
£893.44
(exc. VAT)
£1,072.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 10 + | £89.344 | £893.44 |
*price indicative
- RS Stock No.:
- 232-6721
- Mfr. Part No.:
- FS150R12N2T7BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 150 A | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Number of Transistors | 6 | |
| Maximum Power Dissipation | 20 mW | |
| Package Type | Module | |
| Configuration | Series | |
| Mounting Type | Chassis Mount | |
| Channel Type | N | |
| Pin Count | 32 | |
| Transistor Configuration | Six Pack | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 150 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 6 | ||
Maximum Power Dissipation 20 mW | ||
Package Type Module | ||
Configuration Series | ||
Mounting Type Chassis Mount | ||
Channel Type N | ||
Pin Count 32 | ||
Transistor Configuration Six Pack | ||
The Infineon's EconoPACK 2, 150 A six pack IGBT module comes with TRENCHSTOP IGBT7, Emitter Controlled 7 diode and NTC. Also available as variation with PressFIT mounting technology. Potential applications include motor drives, auxiliary inverters and servo drives.
Overload operation up to 175°C
Copper base plate
High power and thermal cycling capability
Copper base plate
High power and thermal cycling capability
