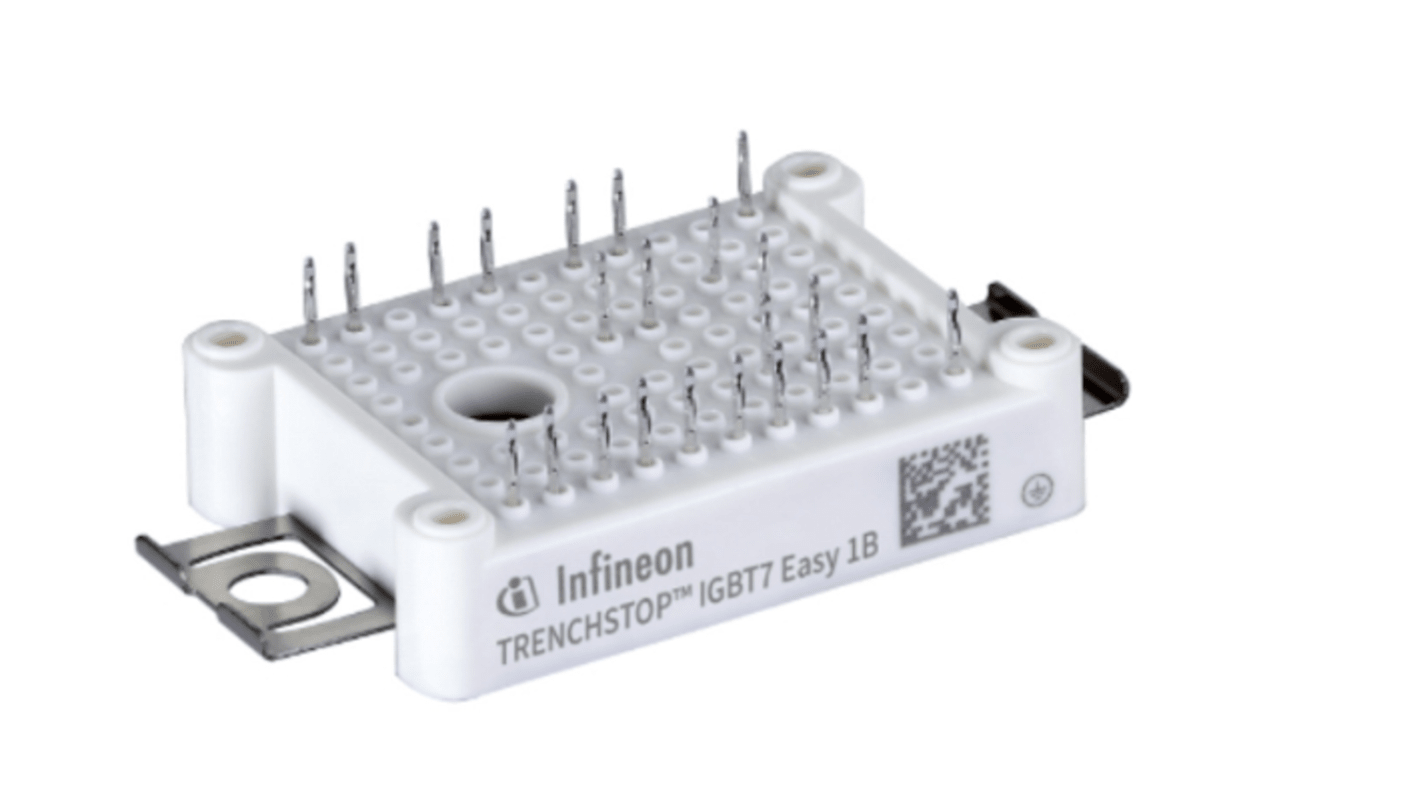

Infineon FP15R12W1T7B11BOMA1 Hex IGBT, 15 A 1200 V, 23-Pin EasyPIM
- RS Stock No.:
- 226-6057
- Mfr. Part No.:
- FP15R12W1T7B11BOMA1
- Brand:
- Infineon
6 In stock - FREE next working day delivery available
Added
Price Each
£44.58
(exc. VAT)
£53.50
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £44.58 |
| 2 - 4 | £42.35 |
| 5 - 9 | £38.12 |
| 10 + | £37.90 |
- RS Stock No.:
- 226-6057
- Mfr. Part No.:
- FP15R12W1T7B11BOMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon 15 A PIM IGBT module has higher power density and also has lower system cost. It has low on state voltage VCEsat and Vf.
Enhanced controllability of dv/dt
Optimized switching losses for dv/dt 5kV/μs
8 μs short-circuit robustness
Optimized switching losses for dv/dt 5kV/μs
8 μs short-circuit robustness
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 15 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | 20V |
| Number of Transistors | 7 |
| Maximum Power Dissipation | 20 mW |
| Package Type | EasyPIM |
| Configuration | Hex |
| Channel Type | N |
| Pin Count | 23 |
