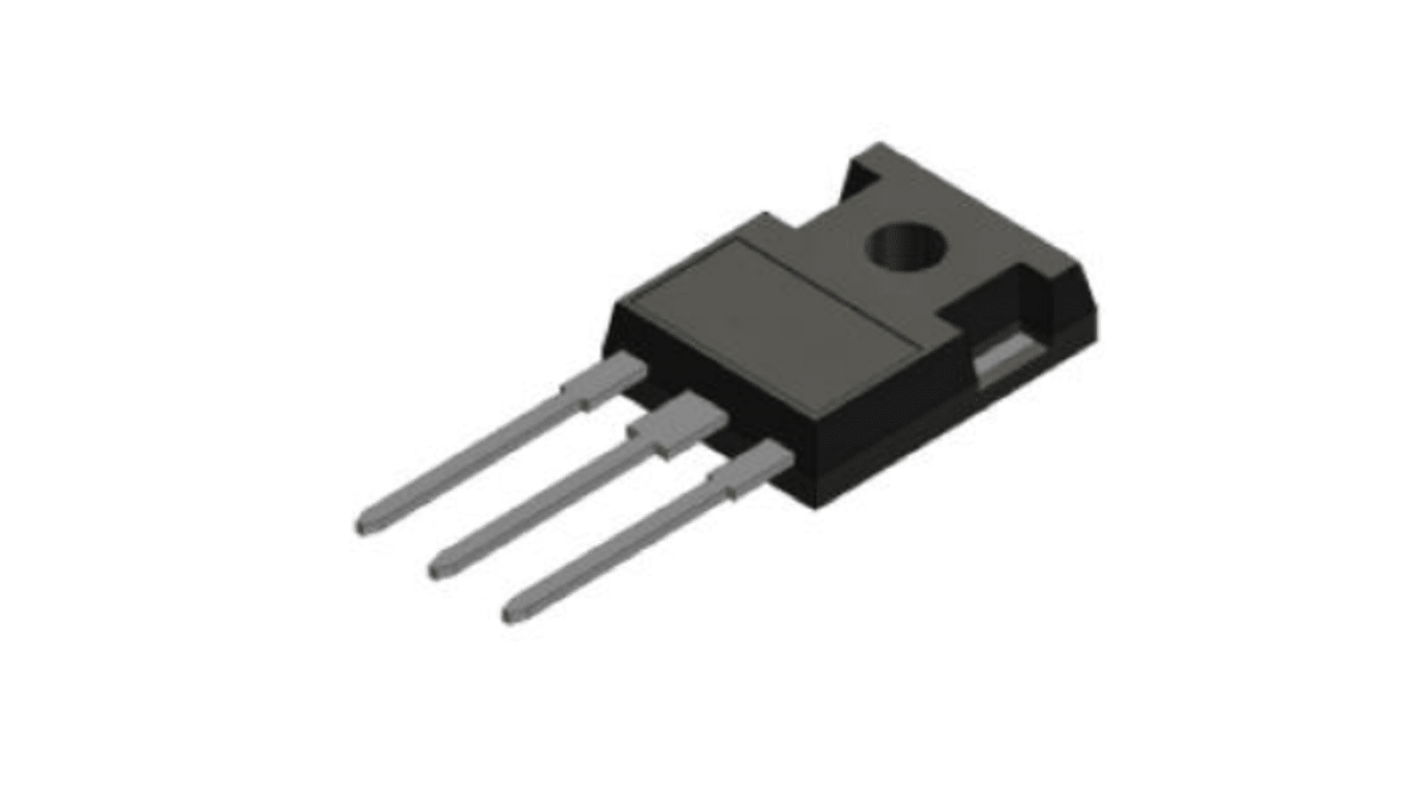

DiodesZetex DGTD120T25S1PT IGBT, 50 A, 100 (Pulsed) A 1200 V, 3-Pin TO-247, Through Hole

RS Stock No.:: 182-7143
Mfr. Part No.:: DGTD120T25S1PT
Brand:: DiodesZetex

DiodesZetex DGTD120T25S1PT IGBT, 50 A, 100 (Pulsed) A 1200 V, 3-Pin TO-247, Through Hole

80 In stock - FREE next working day delivery available

25 available from Europe for delivery within 2 working day(s).

Price Each

£6.24

(exc. VAT)

£7.49

(inc. VAT)

Units	Per unit
1 +	£6.24

RS Stock No.:: 182-7143
Mfr. Part No.:: DGTD120T25S1PT
Brand:: DiodesZetex

Technical Reference

Datasheet DGTD120T25S1PT

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

The DGTD120T25S1PT is produced using advanced Field Stop Trench IGBT Technology, which provides low VCE(sat), excellent quality and high-switching performance.

High Speed Switching & Low VCE(sat) Loss
VCE(sat) = 2.0V @ IC = 25A
High Input Impedance
trr = 100ns (typ) @ diF/dt = 500A/μs
Ultra-Soft, Fast Recovery Anti-parallel Diode
Ultra Narrowed VF Distribution Control
Positive Temperature Coefficient For Easy Parallelling
Maximum Junction Temperature 175°C
Lead-free finish
Halogen and Antimony Free. “Green” Device
Applications
Motor Drive
UPS
Welder
Solar Inverter
IH Cooker

Specifications

Attribute	Value
Maximum Continuous Collector Current	50 A, 100 (Pulsed) A
Maximum Collector Emitter Voltage	1200 V
Maximum Gate Emitter Voltage	±20V
Number of Transistors	1
Maximum Power Dissipation	348 W
Package Type	TO-247
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Dimensions	16.26 x 5.31 x 21.46mm
Minimum Operating Temperature	-40 °C
Gate Capacitance	3942pF
Maximum Operating Temperature	+175 °C
