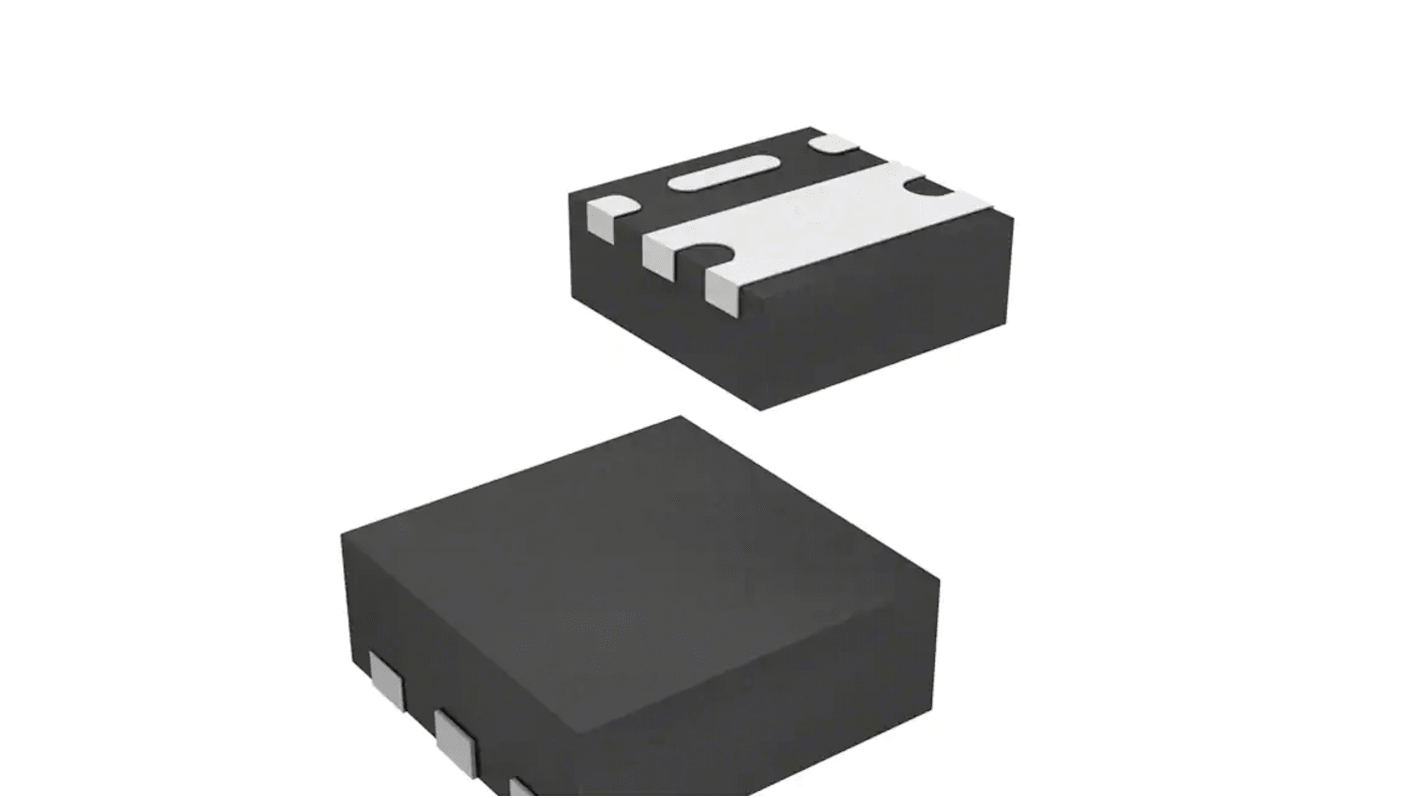

Vishay, Type P-Channel IGBT, 6-Pin PowerPAK SC-70-6L, Surface
- RS Stock No.:
- 180-7332
- Mfr. Part No.:
- SIA433EDJ-T1-GE3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-7332
- Mfr. Part No.:
- SIA433EDJ-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IGBT | |
| Maximum Power Dissipation Pd | 19W | |
| Package Type | PowerPAK SC-70-6L | |
| Mount Type | Surface | |
| Channel Type | Type P | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Emitter Voltage VGEO | 12 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | to RoHS Directive 2002/95/EC, Halogen Free According to IEC 61249-2-21 | |
| Width | 2.15 mm | |
| Height | 0.8mm | |
| Length | 2.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IGBT | ||
Maximum Power Dissipation Pd 19W | ||
Package Type PowerPAK SC-70-6L | ||
Mount Type Surface | ||
Channel Type Type P | ||
Pin Count 6 | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Emitter Voltage VGEO 12 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals to RoHS Directive 2002/95/EC, Halogen Free According to IEC 61249-2-21 | ||
Width 2.15 mm | ||
Height 0.8mm | ||
Length 2.15mm | ||
Automotive Standard No | ||
Vishay MOSFET
The Vishay surface mount P-channel PowerPAK-SC70-6 MOSFET is a new age product with a drain-source voltage of 20V and a maximum gate-source voltage of 12V. It has a drain-source resistance of 18mohms at a gate-source voltage of 4.5V. It has a maximum power dissipation of 19W and continuous drain current of 12A. It has a minimum and a maximum driving voltage of 1.8V and 4.5V respectively. This product has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Built-in ESD protection with zener diode
• Halogen free
• Lead (Pb) free component
• Low on-resistance
• New thermally enhanced PowerPAK SC-70 package
• Operating temperature ranges between -55°C and 150°C
• Small footprint area
• TrenchFET power MOSFET
• Typical ESD performance is 1800V
Applications
• Battery switches
• Charger switches
• Load switches
• Portable devices
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• Rg tested
