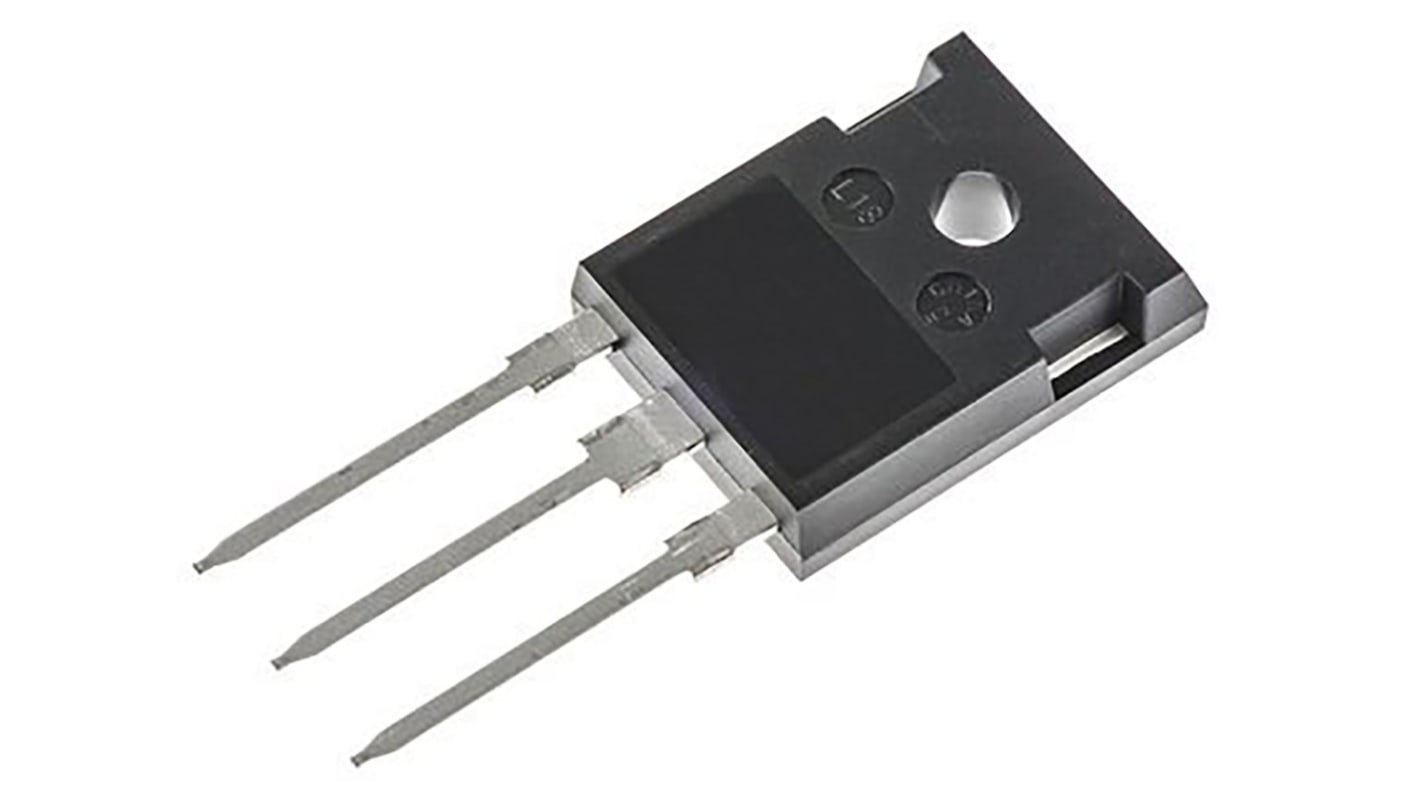

STMicroelectronics STGW40H65FB IGBT, 80 A 650 V, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 168-7097
- Mfr. Part No.:
- STGW40H65FB
- Brand:
- STMicroelectronics
Save 19% when you buy 90 units
Subtotal (1 tube of 30 units)*
£77.91
(exc. VAT)
£93.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 510 unit(s) ready to ship
- Plus 999,999,480 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
30 - 60 | £2.597 | £77.91 |
90 + | £2.078 | £62.34 |
*price indicative
- RS Stock No.:
- 168-7097
- Mfr. Part No.:
- STGW40H65FB
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Continuous Collector Current | 80 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Maximum Power Dissipation | 283 W | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Transistor Configuration | Single | |
Dimensions | 15.75 x 5.15 x 20.15mm | |
Minimum Operating Temperature | -55 °C | |
Maximum Operating Temperature | +175 °C | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 80 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 283 W | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
Dimensions 15.75 x 5.15 x 20.15mm | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +175 °C | ||
- COO (Country of Origin):
- CN
IGBT Discretes, STMicroelectronics
IGBT Discretes & Modules, STMicroelectronics
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
