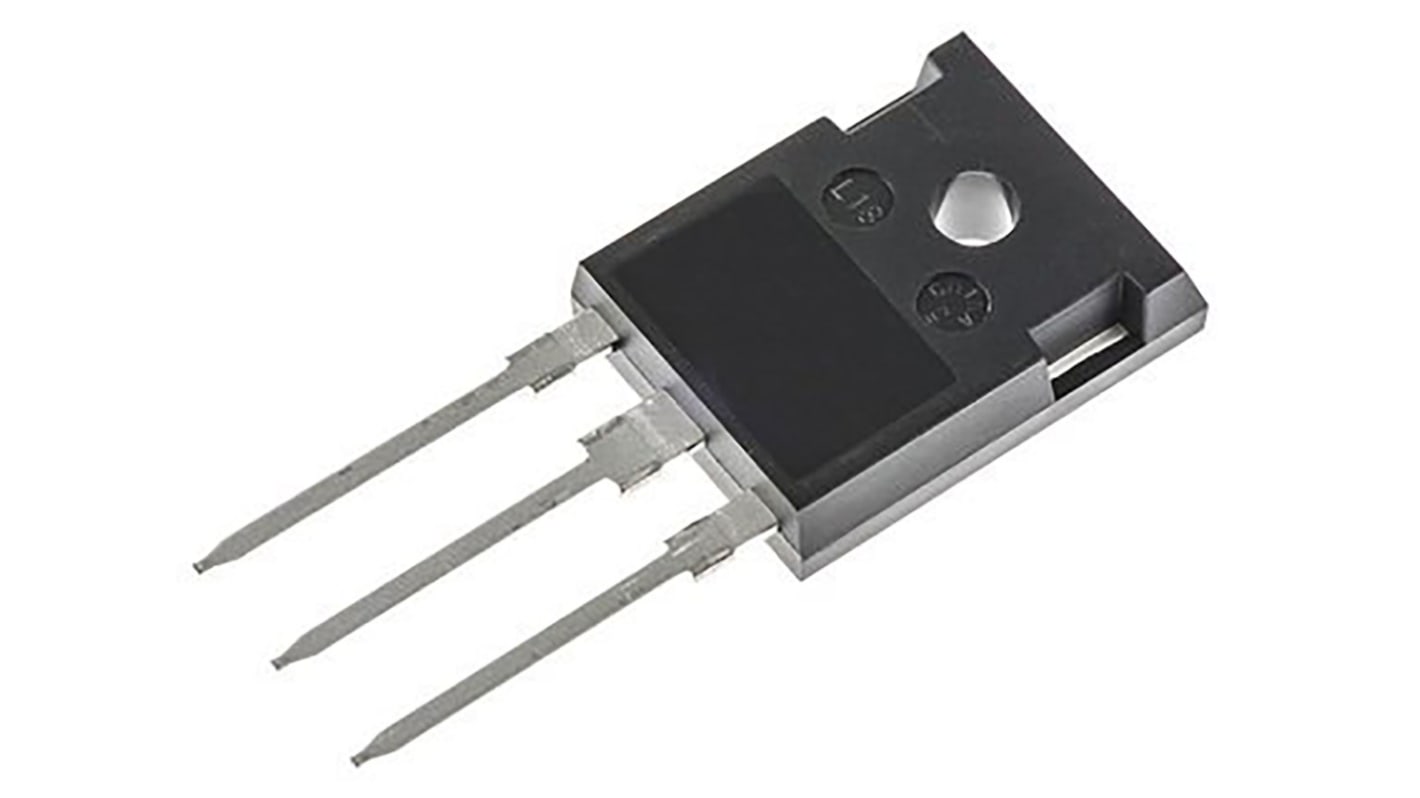

Infineon IHW40N65R5XKSA1 IGBT, 40 A 650 V, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 110-7143
- Mfr. Part No.:
- IHW40N65R5XKSA1
- Brand:
- Infineon
Subtotal (1 pack of 4 units)*
£10.08
(exc. VAT)
£12.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 176 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
4 + | £2.52 | £10.08 |
*price indicative
- RS Stock No.:
- 110-7143
- Mfr. Part No.:
- IHW40N65R5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Maximum Continuous Collector Current | 40 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Maximum Power Dissipation | 230 W | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Transistor Configuration | Single | |
Dimensions | 16.13 x 5.21 x 21.1mm | |
Gate Capacitance | 4740pF | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +175 °C | |
Energy Rating | 1.91mJ | |
Select all | ||
---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 40 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 230 W | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
Dimensions 16.13 x 5.21 x 21.1mm | ||
Gate Capacitance 4740pF | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +175 °C | ||
Energy Rating 1.91mJ | ||
Infineon TrenchStop IGBT Transistors, 600 and 650V
A range of IGBT Transistors from Infineon with collector-emitter voltage ratings of 600 and 650V featuring TrenchStop™ technology. The range includes devices with an integrated high speed, fast recovery anti-parallel diode.
Collector-emitter voltage range 600 to 650V
Very low VCEsat
Low turn-off losses
Short tail current
Low EMI
Maximum junction temperature 175°C
Very low VCEsat
Low turn-off losses
Short tail current
Low EMI
Maximum junction temperature 175°C
IGBT Discretes & Modules, Infineon
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
