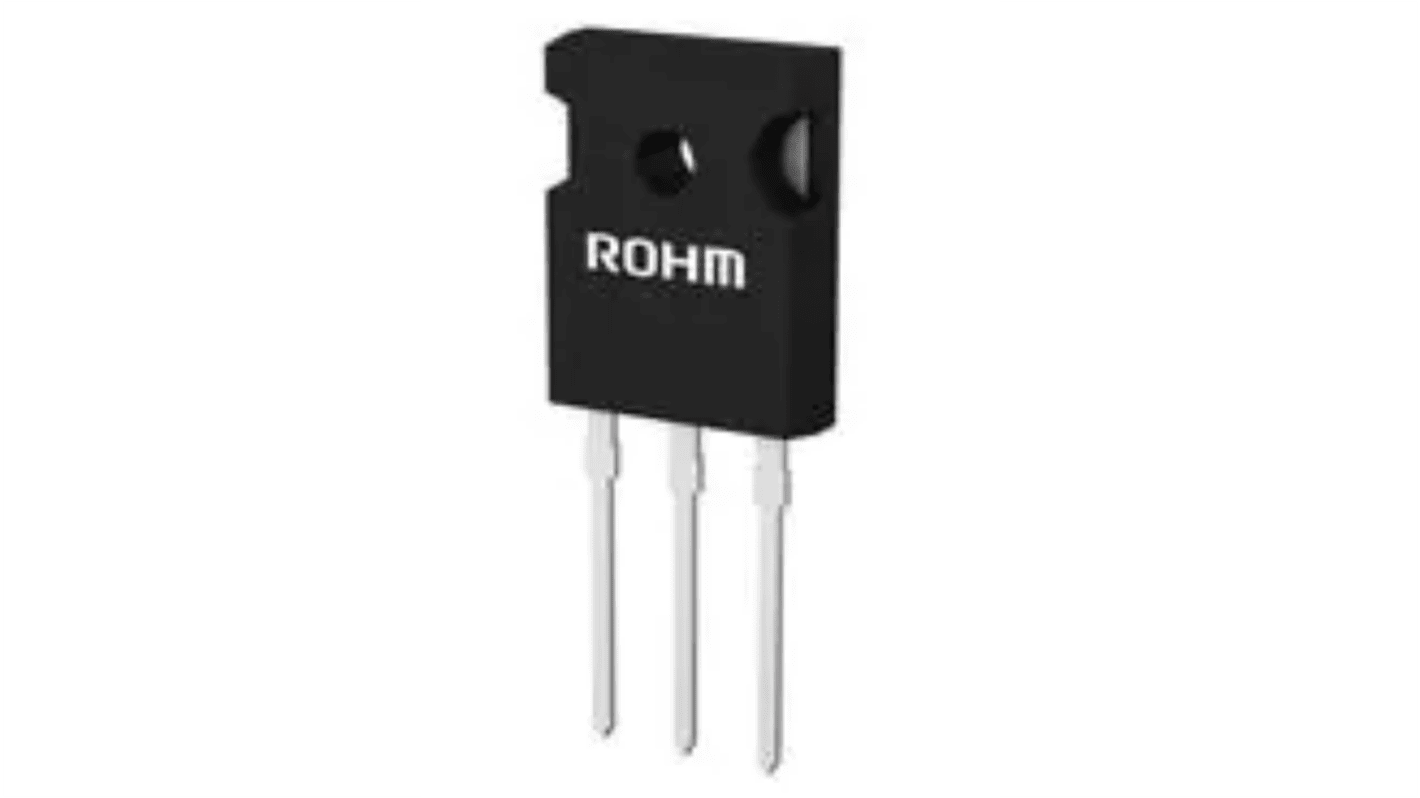

ROHM RGE00TS65DGC13 Single IGBT, 74 A 650 V, 3-Pin TO-247GE, Through Hole
- RS Stock No.:
- 646-600
- Mfr. Part No.:
- RGE00TS65DGC13
- Brand:
- ROHM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 646-600
- Mfr. Part No.:
- RGE00TS65DGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Maximum Continuous Collector Current | 74 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | 30V | |
Maximum Power Dissipation | 230 W | |
Number of Transistors | 1 | |
Configuration | Single | |
Package Type | TO-247GE | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current 74 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage 30V | ||
Maximum Power Dissipation 230 W | ||
Number of Transistors 1 | ||
Configuration Single | ||
Package Type TO-247GE | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
The ROHM Field Stop Trench IGBT is designed for high-efficiency power applications. It features a 650V voltage rating and a 50A current capacity, making it suitable for inverters, welders, and UPS systems. With a 5μs short-circuit tolerance and a fast recovery diode, it ensures low switching loss and high reliability.
Low collector emitter saturation voltage
Pb free lead plating
Built in very fast and soft recovery FRD
RoHS compliant
Pb free lead plating
Built in very fast and soft recovery FRD
RoHS compliant
