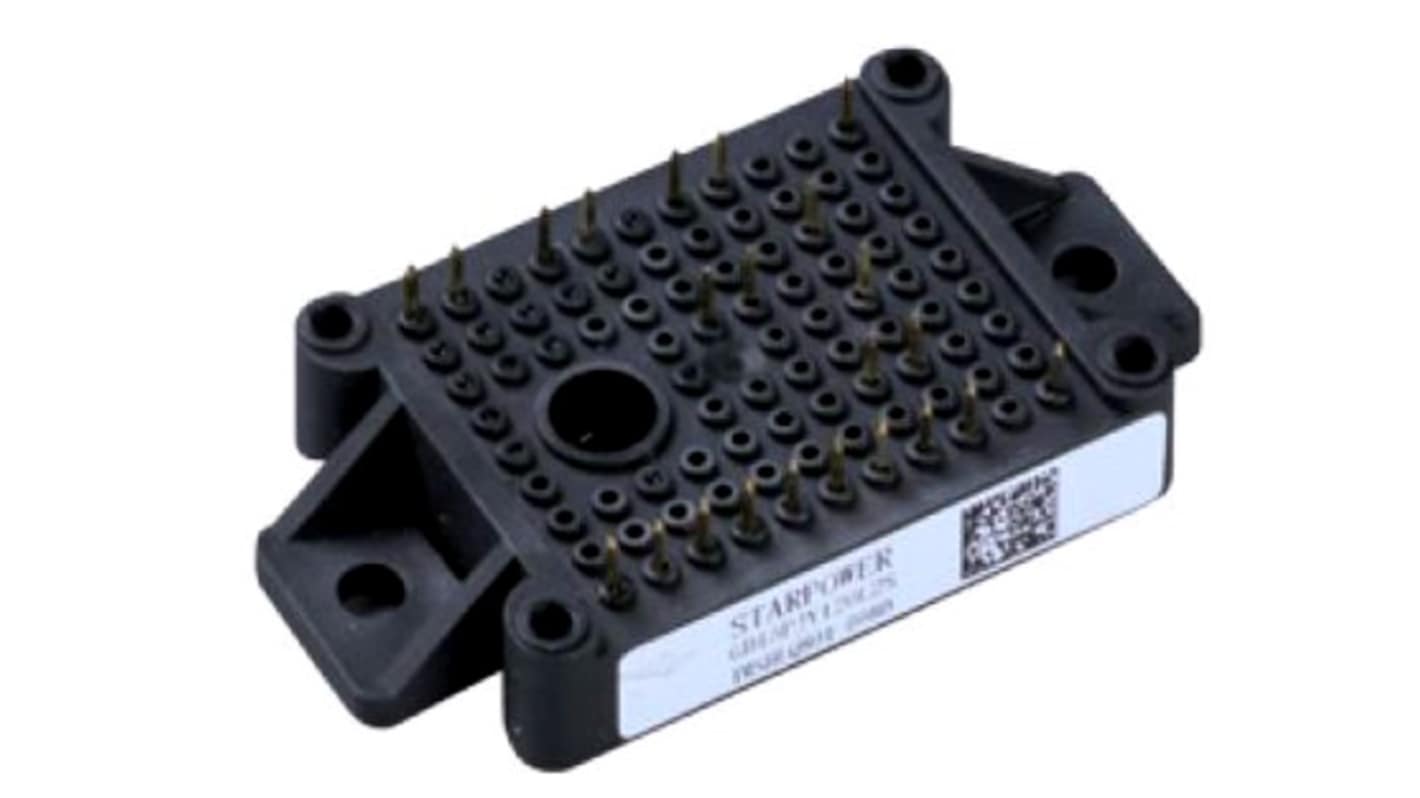

Starpower GD25PJA120L2S PIM IGBT Module, 25 A 1200 V Module

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£24.35

(exc. VAT)

£29.22

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£24.35
10 - 99£21.92
100 +£20.21

*price indicative

RS Stock No.:
427-842
Mfr. Part No.:
GD25PJA120L2S
Brand:
Starpower
Find similar products by selecting one or more attributes.
Select all

Brand

Starpower

Product Type

IGBT Module

Maximum Continuous Collector Current Ic

25A

Maximum Collector Emitter Voltage Vceo

1200V

Configuration

PIM

Package Type

Module

Maximum Gate Emitter Voltage VGEO

±20 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.95V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.

VCE(sat) with positive temperature coefficient

Maximum junction temperature 175°C

Low inductance case

Fast and soft reverse recovery anti parallel FWD

Isolated copper baseplate using DBC technology
