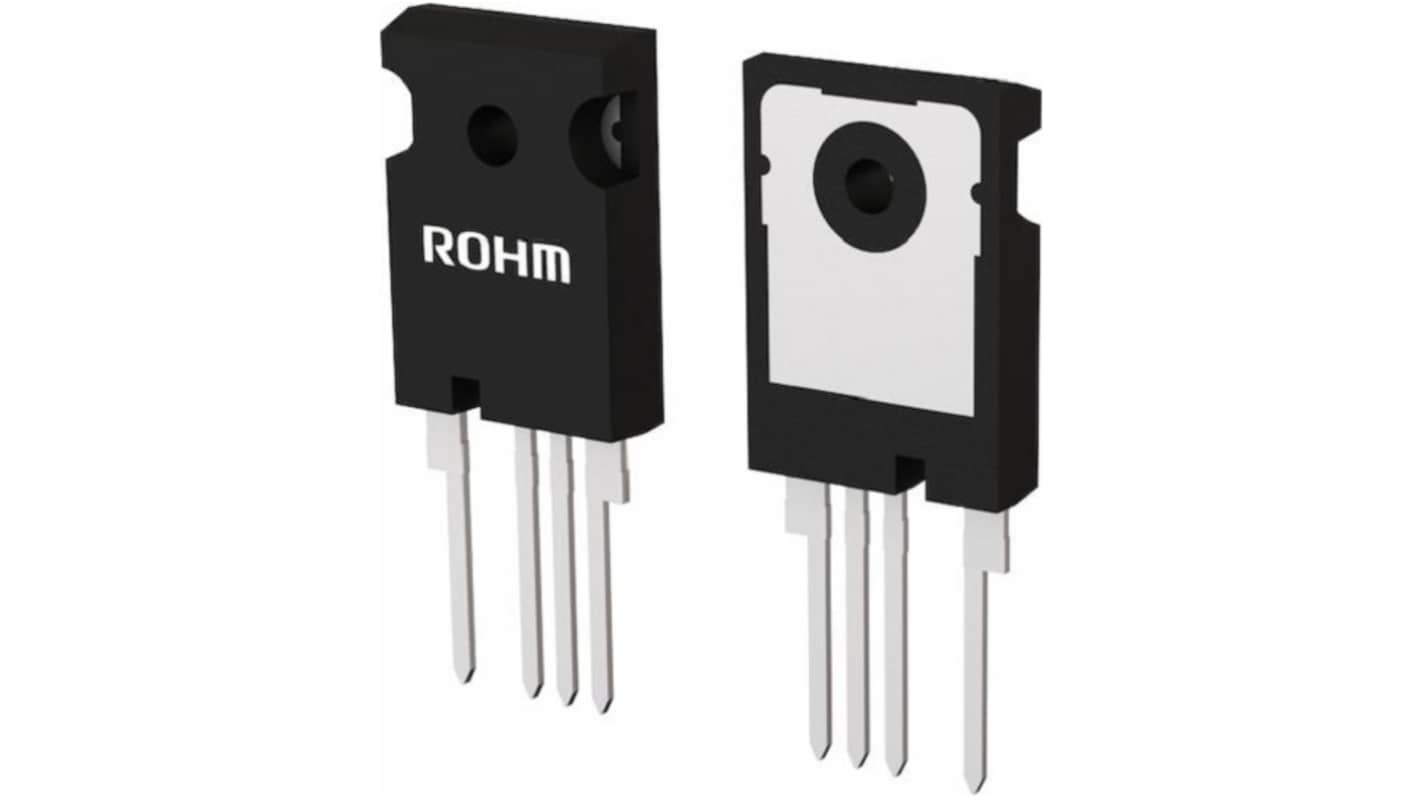

ROHM RGA80TRX2EHRC15 IGBT, 105 A 1200 V, 4-Pin TO-247-4L, Through Hole
- RS Stock No.:
- 329-123
- Mfr. Part No.:
- RGA80TRX2EHRC15
- Brand:
- ROHM
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 329-123
- Mfr. Part No.:
- RGA80TRX2EHRC15
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 105A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation Pd | 468W | |
| Package Type | TO-247-4L | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±30 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 105A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation Pd 468W | ||
Package Type TO-247-4L | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±30 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The ROHM IGBT featuring low switching loss and low conduction loss. It is ideal for electric compressors and HV heaters for automotive applications and inverters for industrial applications.
Qualified to AEC Q101
Short Circuit Withstand Time 10 mu s
Low Collector Emitter Saturation Voltage
Built in Very Fast and Soft Recovery FRD
Pb free Lead Plating and RoHS Compliant
