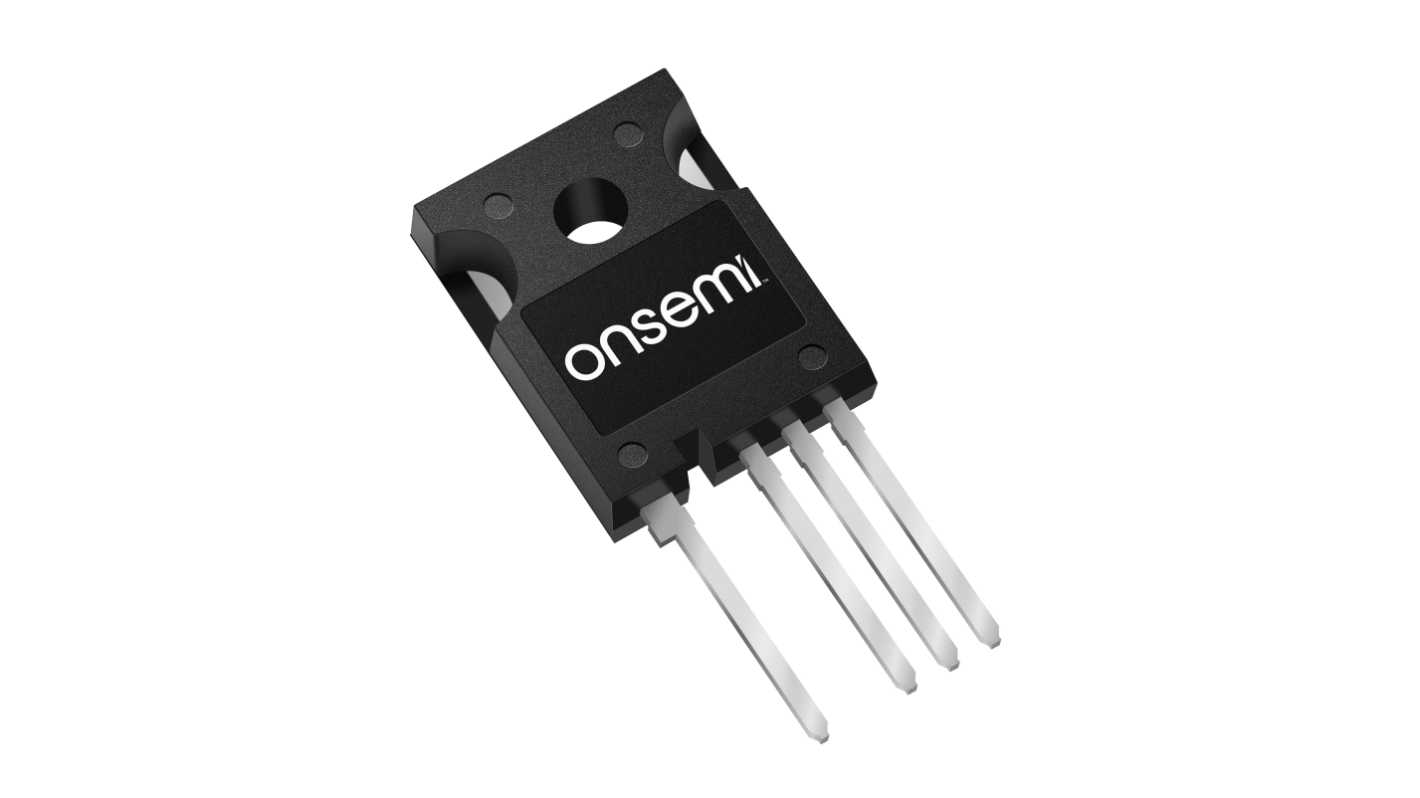

onsemi FGY4L160T120SWD, Type N-Channel Common Emitter IGBT, 160 A 1200 V, 4-Pin TO-247-4L, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£11.66

(exc. VAT)

£13.99

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 22 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£11.66
10 - 99£10.49
100 +£9.67

*price indicative

Packaging Options:
RS Stock No.:
277-079
Mfr. Part No.:
FGY4L160T120SWD
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Maximum Continuous Collector Current Ic

160A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

1.5kW

Number of Transistors

1

Package Type

TO-247-4L

Configuration

Common Emitter

Mount Type

Through Hole

Channel Type

Type N

Pin Count

4

Minimum Operating Temperature

-55°C

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

2V

Maximum Operating Temperature

175°C

Height

22.54mm

Length

15.8mm

Width

5 mm

Standards/Approvals

RoHS

Automotive Standard

No

COO (Country of Origin):
CN
The ON Semiconductor IGBT and Gen7 Diode in a TO247 4-lead package offer optimal performance with low switching and conduction losses, enabling high-efficiency operations. These components are designed for use in various applications such as solar inverters, uninterruptible power supplies (UPS), and energy storage systems (ESS), providing reliable and efficient power management in these demanding environments.

High current capability

Smooth and optimized switching

Low switching loss

RoHS compliant
