Infineon, Type N-Channel Common Emitter IGBT, 50 A 1200 V Module, Panel
- RS Stock No.:
- 273-2932
- Mfr. Part No.:
- FS50R12W1T7B11BOMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£28.17
(exc. VAT)
£33.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £28.17 |
| 5 - 9 | £27.61 |
| 10 - 24 | £25.61 |
| 25 - 49 | £23.47 |
| 50 + | £21.67 |
*price indicative
- RS Stock No.:
- 273-2932
- Mfr. Part No.:
- FS50R12W1T7B11BOMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 50A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 20mW | |
| Number of Transistors | 6 | |
| Configuration | Common Emitter | |
| Package Type | Module | |
| Mount Type | Panel | |
| Channel Type | Type N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.64V | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | EN61140, IEC61140 | |
| Length | 62.8mm | |
| Height | 16.4mm | |
| Width | 33.8 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 50A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 20mW | ||
Number of Transistors 6 | ||
Configuration Common Emitter | ||
Package Type Module | ||
Mount Type Panel | ||
Channel Type Type N | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.64V | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals EN61140, IEC61140 | ||
Length 62.8mm | ||
Height 16.4mm | ||
Width 33.8 mm | ||
Automotive Standard No | ||

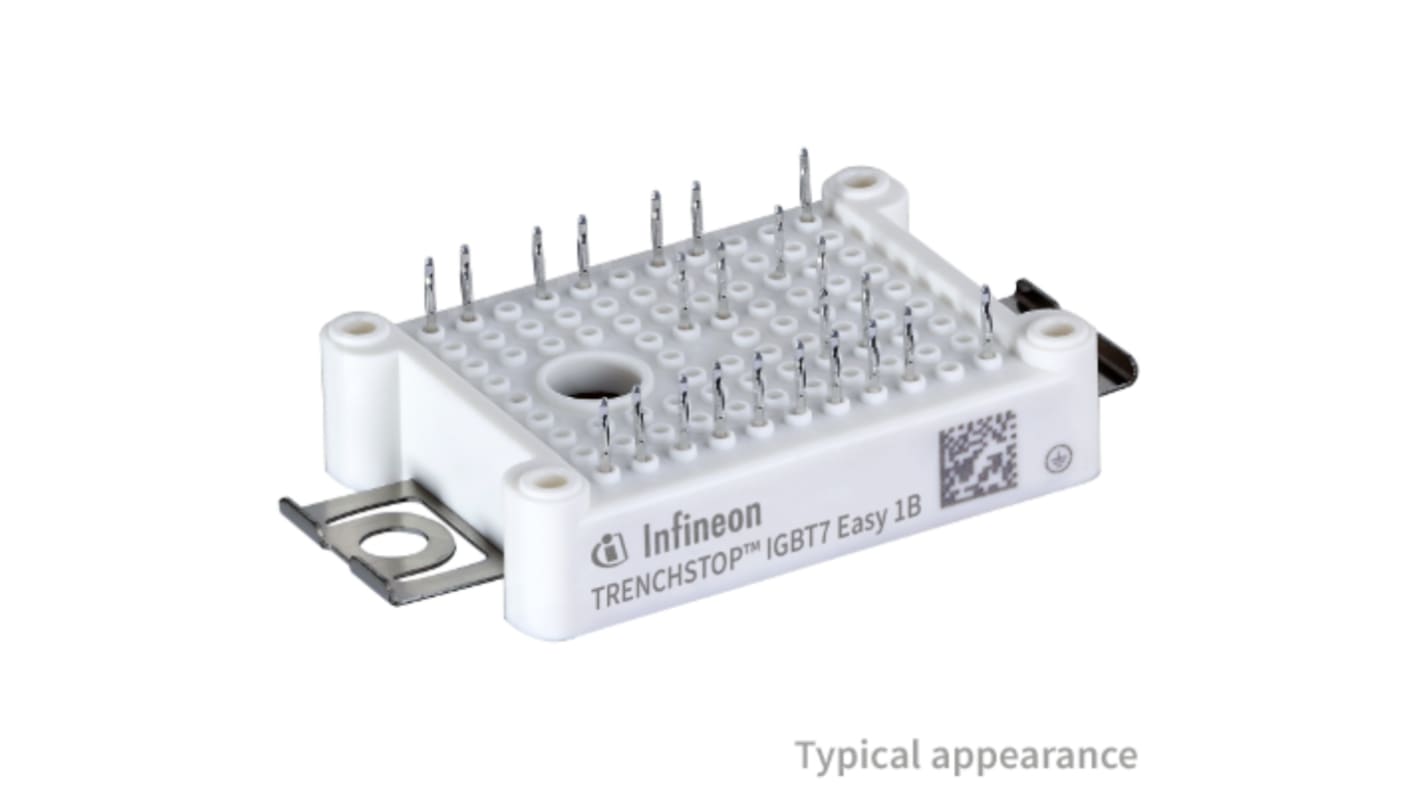

The Infineon IGBT module with TRENCHSTOP IGBT7, emitter controlled 7 diode, NTC and pressFIT contact technology.
High power density
Compact design
