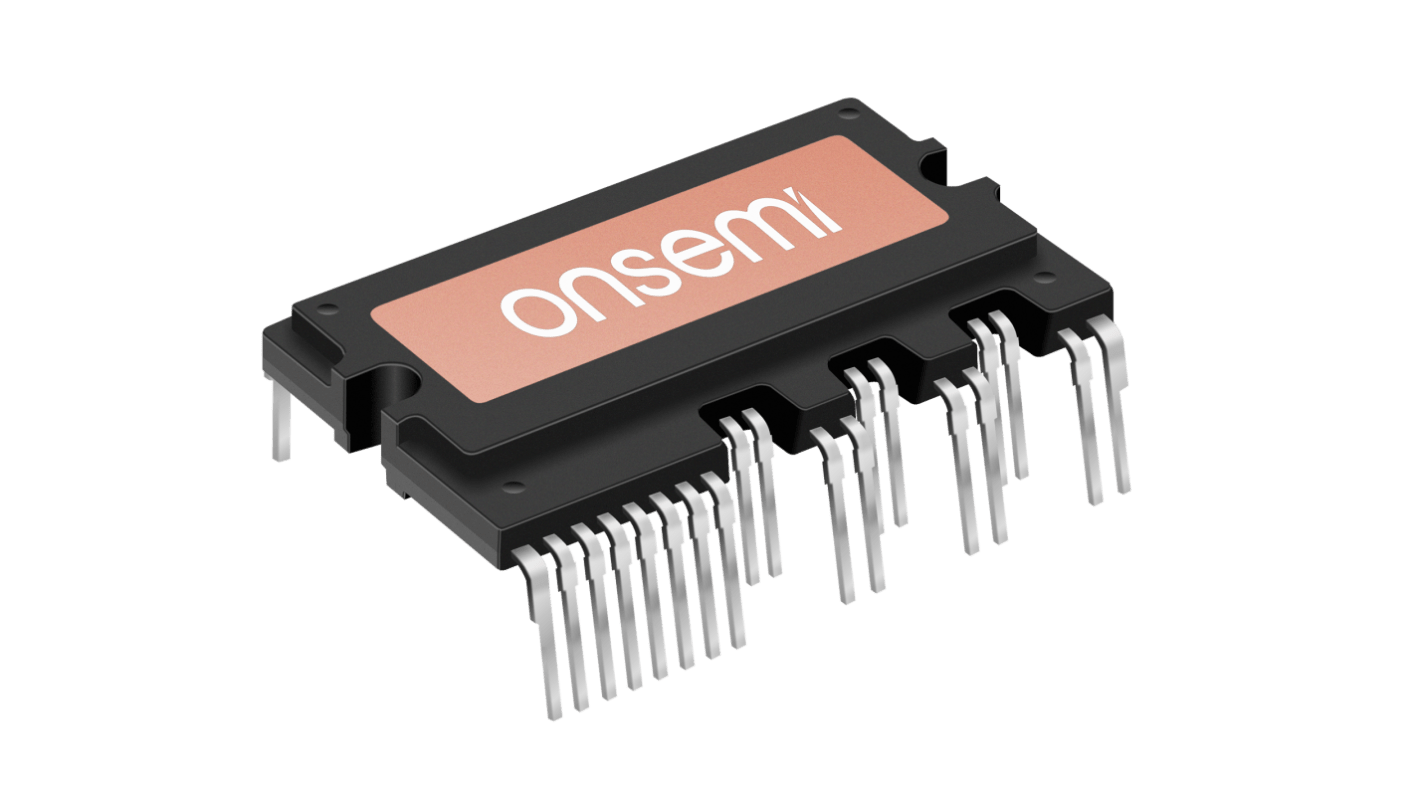

onsemi NFA32512L72 3 Phase IGBT, 25 A 1200 V, 27-Pin SPM27-SB, Through Hole

View all IGBTs
Bulk discount available

Subtotal 10 units (supplied in a tube)*

£247.50

(exc. VAT)

£297.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 20 unit(s) shipping from 27 October 2025
  • Plus 60 unit(s) shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
10 - 99£24.75
100 +£22.82

*price indicative

Packaging Options:
RS Stock No.:
277-035P
Mfr. Part No.:
NFA32512L72
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Maximum Continuous Collector Current

25 A

Maximum Collector Emitter Voltage

1200 V

Number of Transistors

6

Maximum Power Dissipation

100 W

Configuration

3 Phase

Package Type

SPM27-SB

Mounting Type

Through Hole

Channel Type

N

Pin Count

27

COO (Country of Origin):
CN
The ON Semiconductor Intelligent Power Module is a high-performance inverter output stage designed for AC induction, BLDC, and PMSM motors. It integrates optimized gate drive for built-in IGBTs, reducing EMI and losses. The module also includes multiple protection features such as under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting, ensuring reliable operation.

Built in under voltage protection
Separated open emitter pins from low side IGBTs for three phase current sensing
LVIC temperature sensing built in for temperature monitoring
