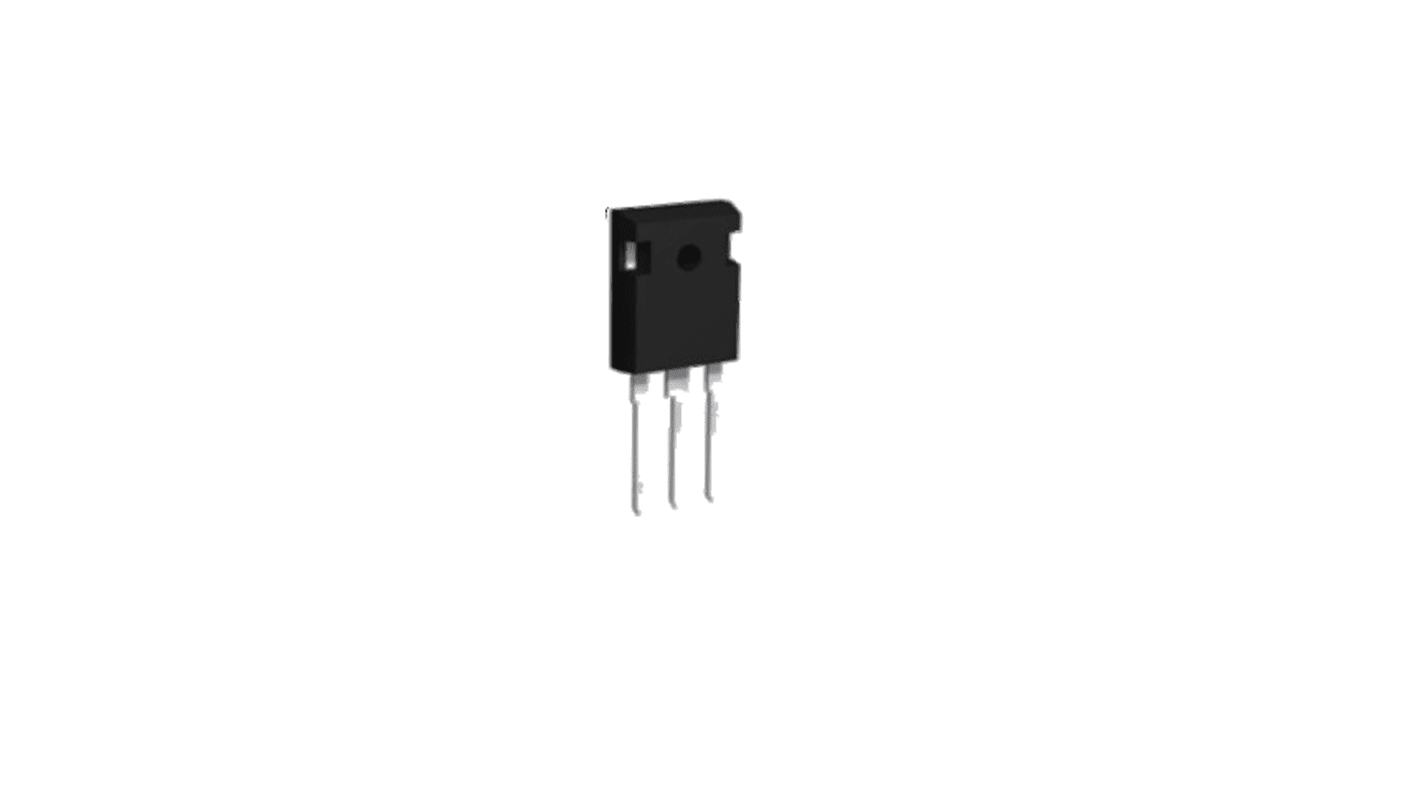

ROHM RGWX5TS65GC13, Type N-Channel IGBT, 75 A 650 V, 3-Pin TO-247GE, Through Hole
- RS Stock No.:
- 265-476
- Mfr. Part No.:
- RGWX5TS65GC13
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.74
(exc. VAT)
£6.89
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 116 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £5.74 |
| 10 - 99 | £5.17 |
| 100 - 499 | £4.76 |
| 500 - 999 | £4.42 |
| 1000 + | £3.95 |
*price indicative
- RS Stock No.:
- 265-476
- Mfr. Part No.:
- RGWX5TS65GC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 75A | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 348W | |
| Package Type | TO-247GE | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 3 | |
| Maximum Gate Emitter Voltage VGEO | ±30 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.85V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS Compliant | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 75A | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 348W | ||
Package Type TO-247GE | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 3 | ||
Maximum Gate Emitter Voltage VGEO ±30 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.85V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS Compliant | ||
Automotive Standard No | ||
The ROHM IGBT with low collector to emitter saturation voltage, suitable for PFC, Solar Inverter, UPS, Welding, IH applications. This RGW series features high speed switching, contributing to higher efficiency of applications.
Pb free lead plating
RoHS compliant
High speed switching
Low switching loss & soft switching
