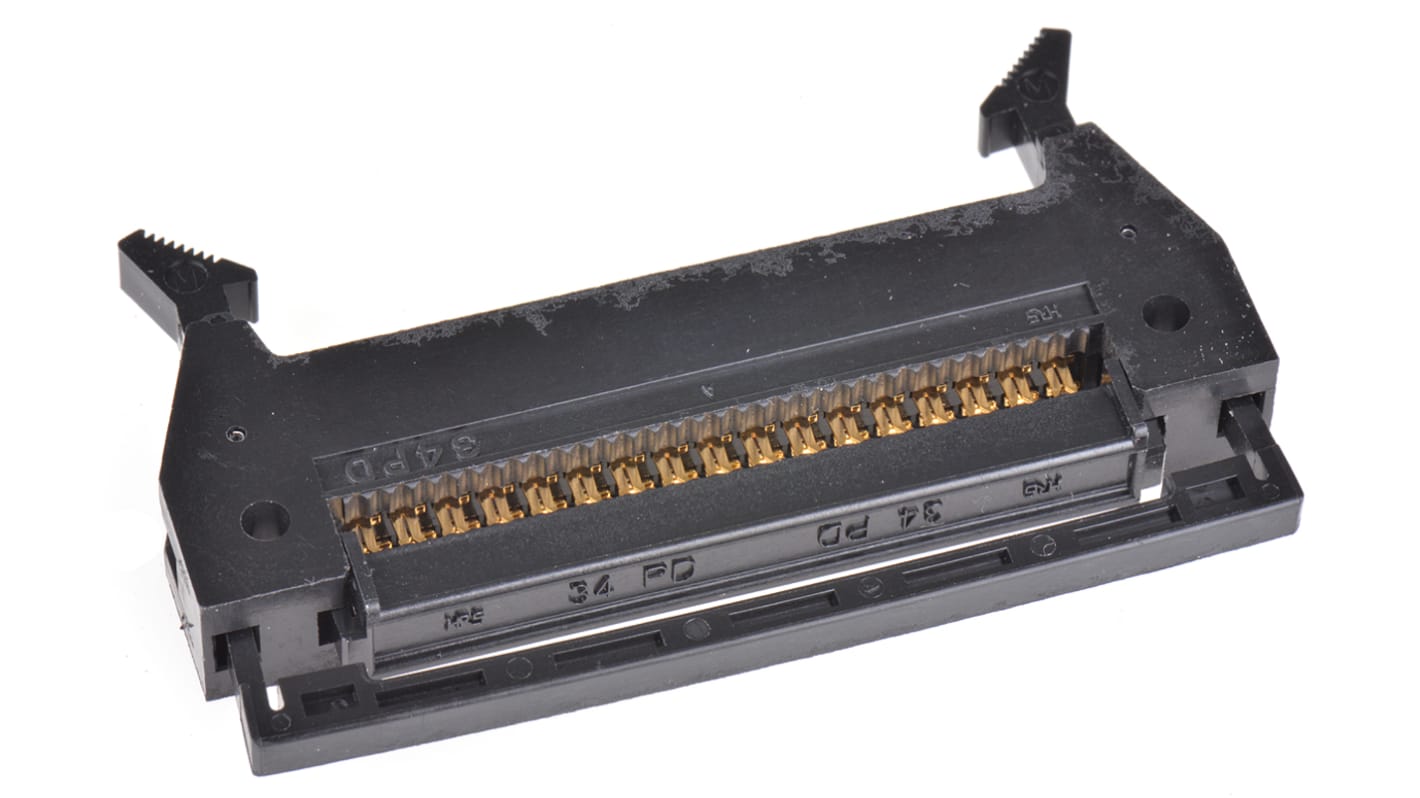

Hirose 34-Way IDC Connector Plug for Cable Mount, 2-Row

RS Stock No.:: 896-0991
Mfr. Part No.:: HIF3BA-34PD-2.54R-MC
Brand:: Hirose

Hirose 34-Way IDC Connector Plug for Cable Mount, 2-Row

100 In stock - FREE next working day delivery available

17 available from Europe for delivery within 1 working day(s).

Price Each

£13.59

(exc. VAT)

£16.31

(inc. VAT)

Units	Per unit
1 - 9	£13.59
10 - 99	£11.89
100 - 249	£10.57
250 - 499	£9.53
500 +	£8.67

RS Stock No.:: 896-0991
Mfr. Part No.:: HIF3BA-34PD-2.54R-MC
Brand:: Hirose

Technical Reference

Datasheet - HIF3B

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

Hirose 2.54mm HIF3B Series In-Line IDC Ribbon Cable Plug Connector

HIF3B series 2.54mm in-line cable mount IDC ribbon cable plug connectors made from black UL94V-0 PBT with double row gold plated contacts. These HIF3B series in-line IDC ribbon cable plug connectors have polarizing slots (for configuration details please see manufacturers datasheet), ejection latches and are for use with UL2651 AWG 28 flat cable. Typically, these HIF3B in-line ribbon cable connectors are used for internal cable to cable equipment wiring.
For compatible connectors see HIF3A series and HIF3B series sockets.

Hirose 2.54mm Ribbon Cable Connectors

Specifications

Attribute	Value
Number of Contacts	34
Number of Rows	2
Gender	Male
Pitch	2.54mm
Mounting Type	Cable Mount
Body Orientation	Straight
Termination Method	IDC
Current Rating	1A
Contact Plating	Gold over Nickel
Series	HIF3B
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+85°C
Voltage Rating	200 V ac
Contact Material	Beryllium Copper
Housing Material	PBT
