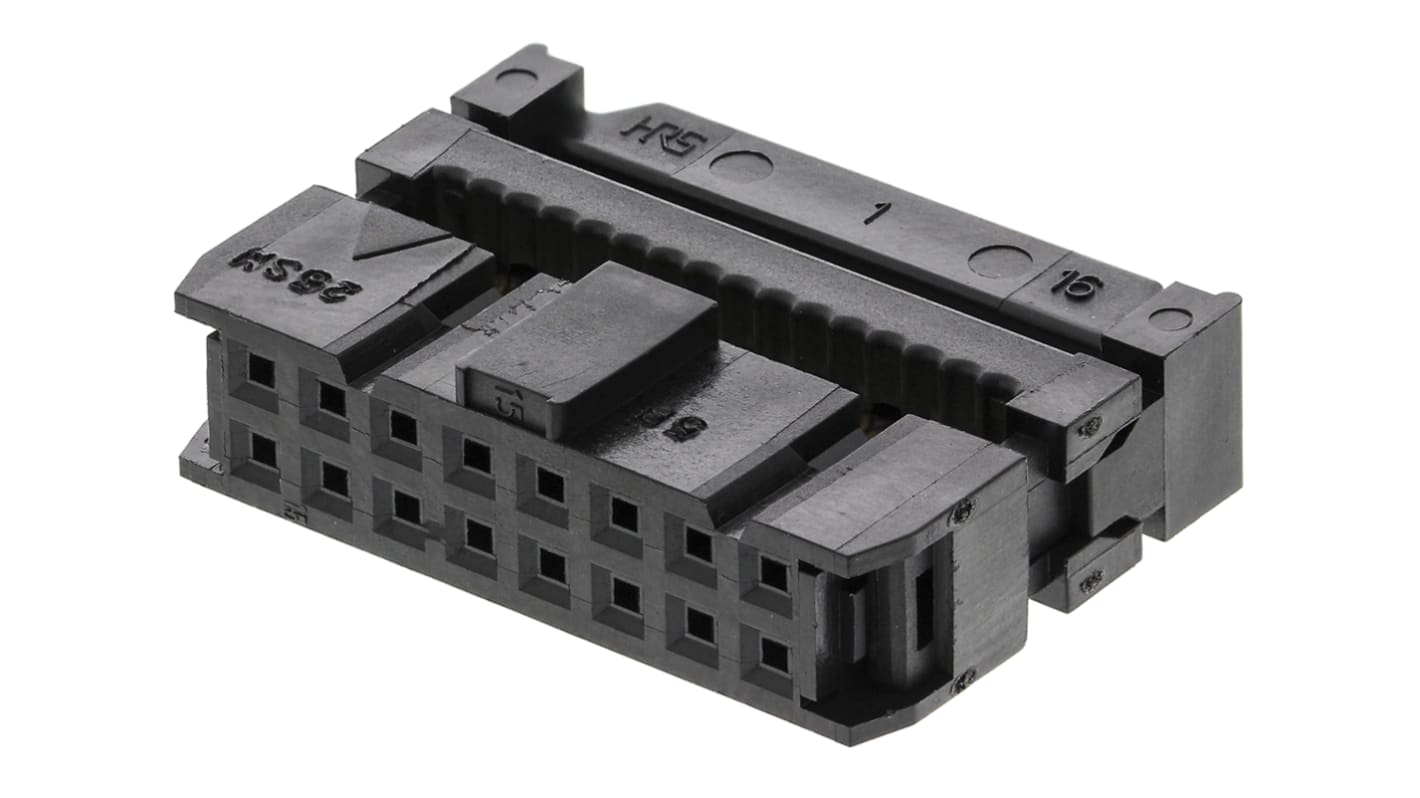

Hirose 16-Way IDC Connector Socket for Cable Mount, 2-Row

RS Stock No.:: 322-1042
Mfr. Part No.:: HIF3BA-16D-2.54R
Brand:: Hirose

Hirose 16-Way IDC Connector Socket for Cable Mount, 2-Row

7 In stock - FREE next working day delivery available

Price Each

£3.35

(exc. VAT)

£4.02

(inc. VAT)

Units	Per unit
1 - 19	£3.35
20 - 74	£3.20
75 - 299	£2.82
300 - 599	£2.32
600 +	£2.29

RS Stock No.:: 322-1042
Mfr. Part No.:: HIF3BA-16D-2.54R
Brand:: Hirose

Technical Reference

HIF_3B_Datasheet_EN

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: JP

Product Details

Hirose 2.54mm HIF3B Series MIL Standard IDC Ribbon Cable Socket Connectors with Mis-Insertion Guides

HIF3B series 2.54mm IDC ribbon cable socket connectors made from black UL94V-0 PBT with a double row contact alignment. These HIF3B series IDC ribbon cable sockets are MIL standard compliant (apart from 6 and 10 pole versions), have a mis-insertion mechanism comprising of polarizing guides and polarizing keyways along with a strain relief and accept UL2651 AWG 28 flat cable.
For polarization guide and keyway combinations please refer to manufacturers datasheet

Hirose 2.54mm Ribbon Cable Connectors

Specifications

Attribute	Value
Number of Contacts	16
Number of Rows	2
Gender	Female
Pitch	2.54mm
Mounting Type	Cable Mount
Body Orientation	Right Angle
Termination Method	IDC
Current Rating	1A
Contact Plating	Gold
Series	HIF3B
Minimum Operating Temperature	-55.0°C
Maximum Operating Temperature	85.0°C
Voltage Rating	200.0 V ac
Contact Material	Beryllium Copper
Housing Material	PBT
