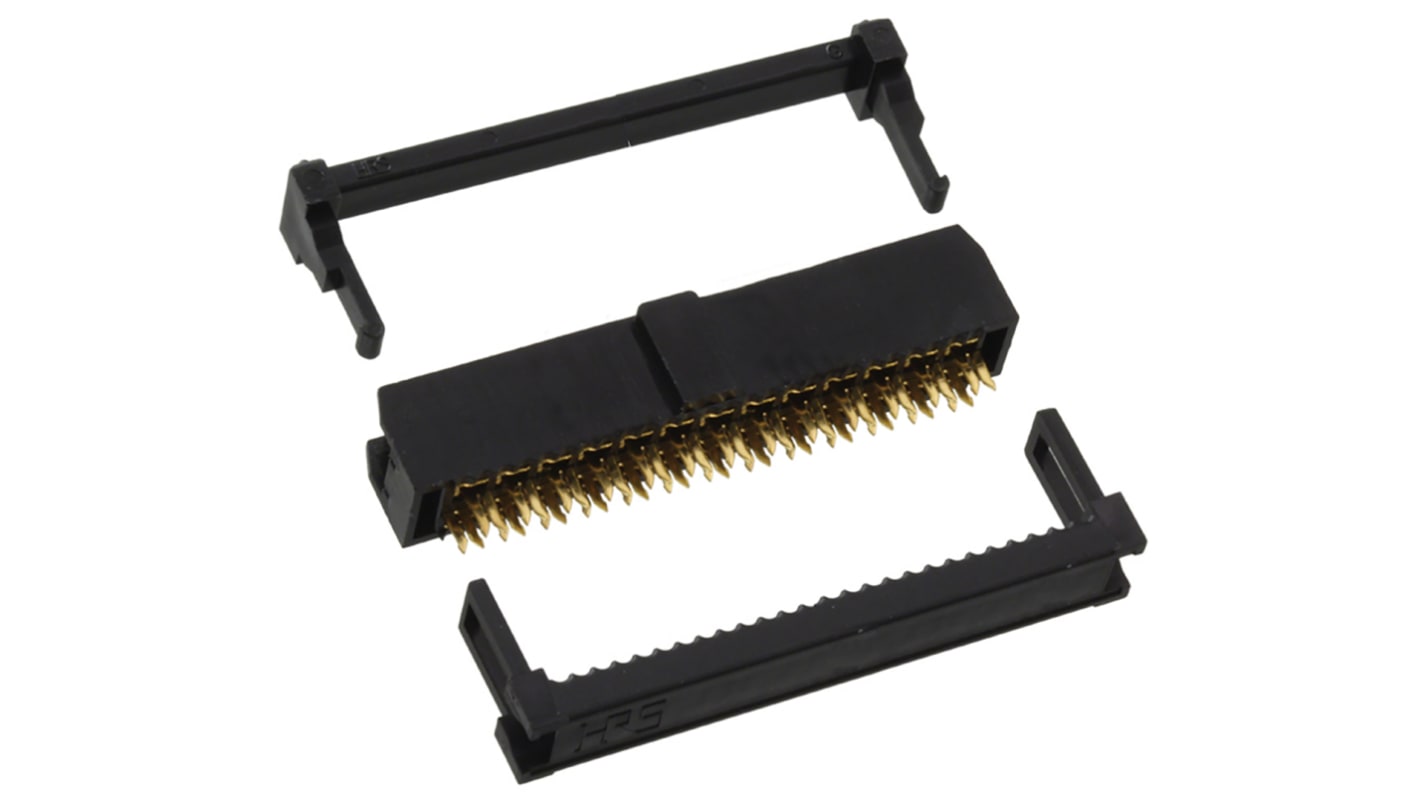

Hirose 26-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 896-0742
- Mfr. Part No.:
- HIF3A-26D-2.54R
- Brand:
- Hirose
Bulk discount available
Subtotal (1 unit)*
£10.31
(exc. VAT)
£12.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 320 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £10.31 |
10 - 99 | £9.03 |
100 - 249 | £8.03 |
250 - 499 | £7.24 |
500 + | £6.55 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Tray of 42)
£1.343
(exc. VAT)
£1.612
(inc. VAT)
- RS Stock No.:
- 896-0742
- Mfr. Part No.:
- HIF3A-26D-2.54R
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirose | |
Number of Contacts | 26 | |
Number of Rows | 2 | |
Gender | Female | |
Pitch | 2.54mm | |
Mounting Type | Cable Mount | |
Body Orientation | Straight | |
Termination Method | IDC | |
Current Rating | 1A | |
Contact Plating | Gold over Nickel | |
Series | HIF3A | |
Minimum Operating Temperature | -55.0°C | |
Maximum Operating Temperature | 85.0°C | |
Voltage Rating | 200.0 V ac | |
Housing Material | PBT | |
Contact Material | Beryllium Copper | |
Select all | ||
---|---|---|
Brand Hirose | ||
Number of Contacts 26 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Gold over Nickel | ||
Series HIF3A | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature 85.0°C | ||
Voltage Rating 200.0 V ac | ||
Housing Material PBT | ||
Contact Material Beryllium Copper | ||
- COO (Country of Origin):
- MY
Hirose 2.54mm HIF3A Series IDC Ribbon Cable Socket Connectors
HIF3A series high performance 2.54mm IDC ribbon cable socket connectors made from black UL94V-0 PBT with a double row contact alignment. These HIF3A series IDC ribbon cable sockets have a two point contact structure for high electrical connection reliability and accept UL2651 AWG 28 flat cable. Typical applications for these HIF3A ribbon cable connectors include computers, PPC, terminal equipment, electronic equipment and office automation machines. For compatible connectors see MIL standard HIF3B series and other HIF series headers (except HIF3B-60 pos)
Hirose 2.54mm Ribbon Cable Connectors
