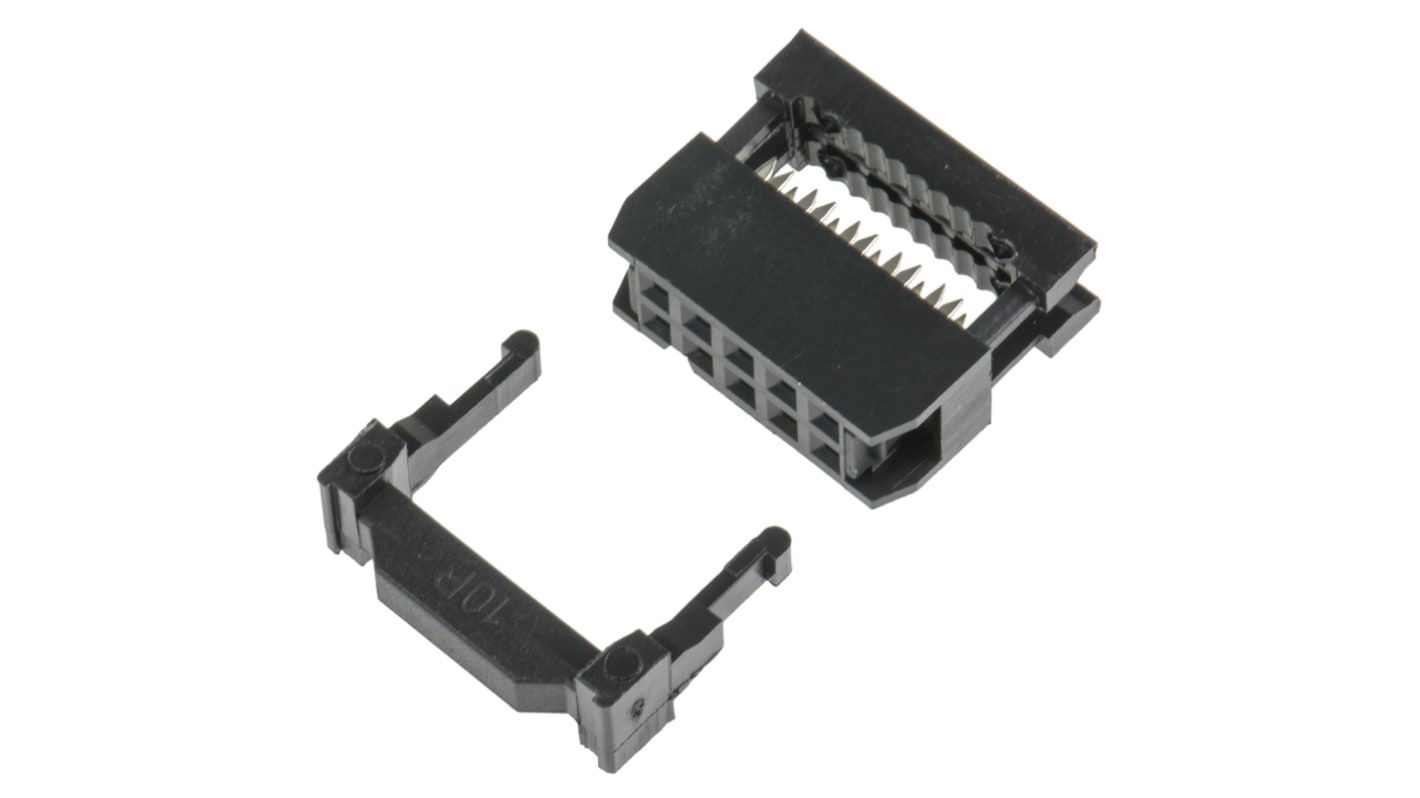

This 10-way IDC connector from the RS PRO range offers a quick and easy way to terminate a ribbon cable. Its sharp contact points pierce the wire so you don't need to do any stripping. Suitable for cable mounting, this socket's right-angled orientation enables you to get the most from your space. This type of plug is commonly used in low-voltage applications like computing and telecommunications.

Gold-plated contacts maximise conductivity. The 30% glass-filled polybutylene terephthalate (PBT) housing gives it strength and functions as an excellent insulator. This heat-resistant connector can work up to +105˚C and down to -40˚C. It's voltage rated at 500 V dc and amp rated at 1 A.

The plug's been tested against international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It contains only minimal levels of hazardous substances (RoHS).

• 10-Way female IDC connector socket
• 2-Row
• Cable mounting
• 2.54 mm long
• Operating temperature range -40˚C to +105˚C
• Gold-over-nickel plated contacts for low contact resistance
• Right-angle orientation
• Voltage rating of 500 V
• Current rating of 1 A
• Insulation resistance of 5,000 mΩ a minute at dc 500 V
• Glass fibre reinforced PBT housing
• Phosphor bronze contact material
