Samtec 20-Way PCB Header Male for Surface Mount, 2 Row
- RS Stock No.:
- 196-9800
- Mfr. Part No.:
- ESHF-110-01-L-D-SM-LC
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£4.64
(exc. VAT)
£5.57
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £4.64 |
| 10 + | £4.08 |
*price indicative
- RS Stock No.:
- 196-9800
- Mfr. Part No.:
- ESHF-110-01-L-D-SM-LC
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 20 | |
| Product Type | PCB Header | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Mount Type | Surface Mount | |
| Shrouded/Unshrouded | Shrouded | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Contact Plating | Tin, Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | IDC | |
| Series | ESHF | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 20 | ||
Product Type PCB Header | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Mount Type Surface Mount | ||
Shrouded/Unshrouded Shrouded | ||
Connector Gender Male | ||
Orientation Straight | ||
Contact Plating Tin, Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type IDC | ||
Series ESHF | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
Housing Material Liquid Crystal Polymer | ||

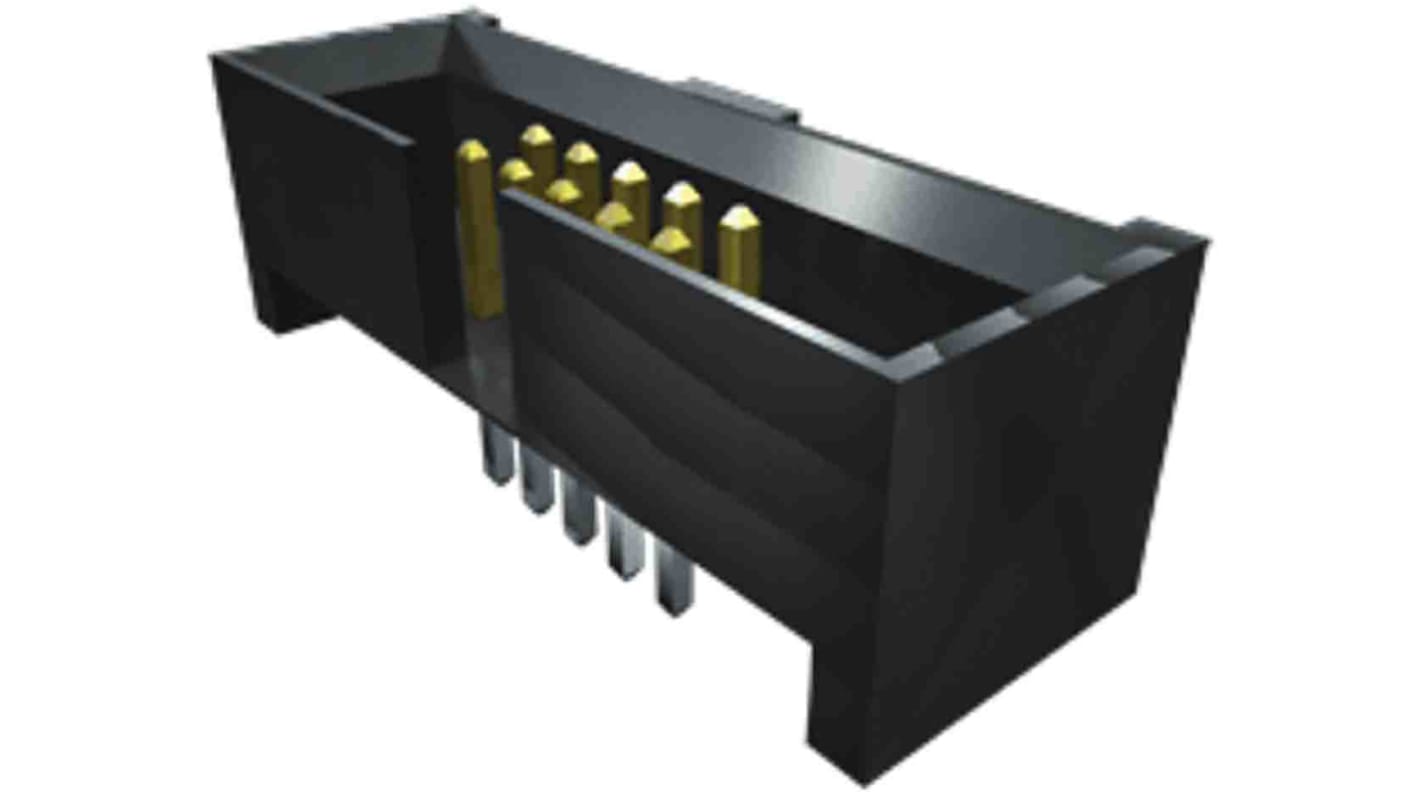

The Samtec ESHF-110-01-L-D-SM-LC is a shrouded and ejector IDC header. It has Polarization notch and the terminal is made up of phosphor bronze.
Operating temp range:-55°C to +125°C
Insulator material: black liquid crystal polymer
SMT lead coplanarity:0.10mm max
