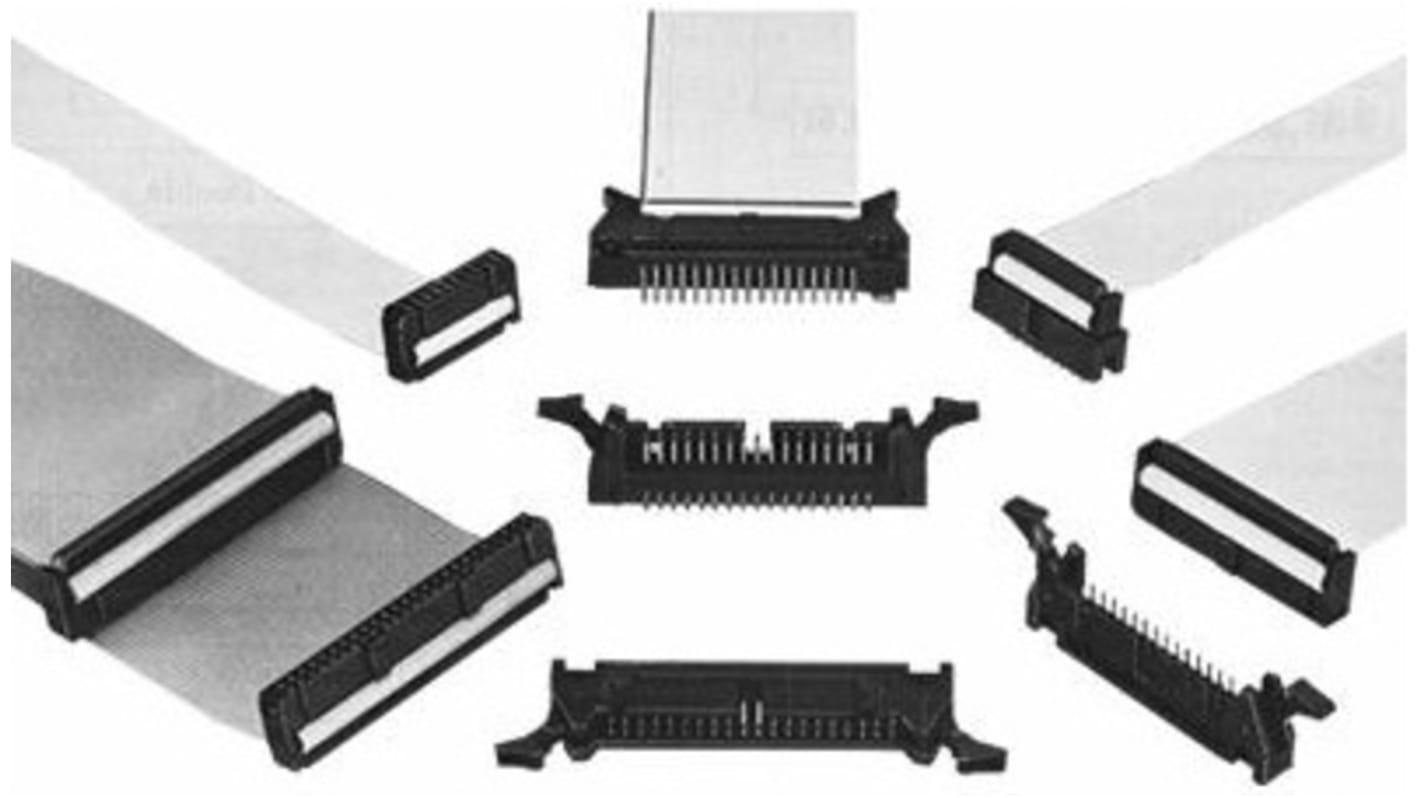

Hirose 40-Way IDC Connector Male for Through Hole, 2 Row
- RS Stock No.:
- 162-5769
- Mfr. Part No.:
- HIF3BA-40PA-2.54WB
- Brand:
- Hirose
Bulk discount available
Subtotal (1 unit)*
£10.37
(exc. VAT)
£12.44
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 2 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.37 |
| 5 - 9 | £9.31 |
| 10 + | £8.41 |
*price indicative
- RS Stock No.:
- 162-5769
- Mfr. Part No.:
- HIF3BA-40PA-2.54WB
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 40 | |
| Product Type | IDC Connector | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Shrouded/Unshrouded | Shrouded | |
| Connector Gender | Male | |
| Voltage | 650V ac | |
| Mount Type | Through Hole | |
| Orientation | Right Angle | |
| Contact Plating | Gold | |
| Series | 3BA | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 40 | ||
Product Type IDC Connector | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Shrouded/Unshrouded Shrouded | ||
Connector Gender Male | ||
Voltage 650V ac | ||
Mount Type Through Hole | ||
Orientation Right Angle | ||
Contact Plating Gold | ||
Series 3BA | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
Contact Material Brass | ||
Ribbon Cable Connector
Mechanism to Prevent Mis-insertion
Applicable Cable UL2651 AWG#28 flat cable
